18

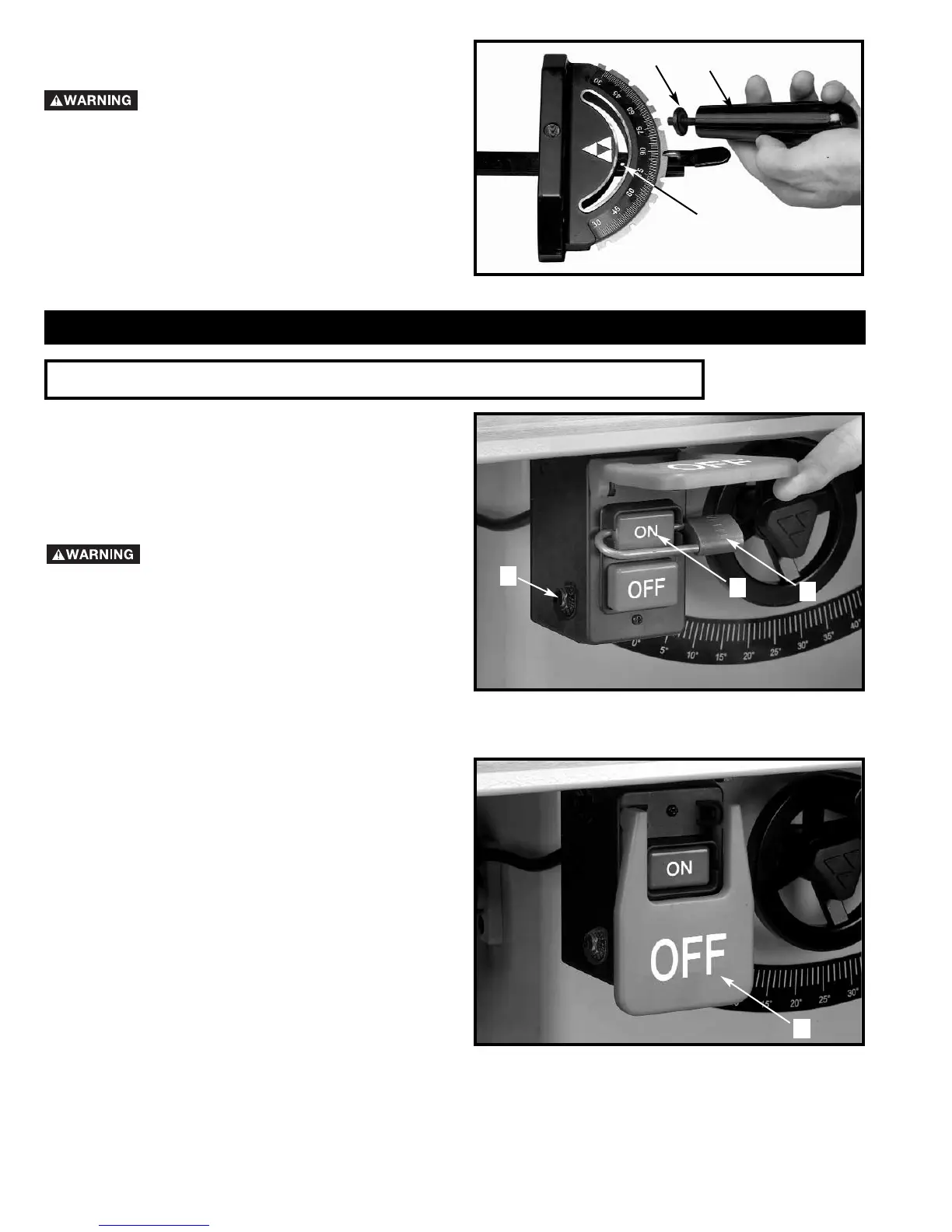

ASSEMBLING MITER GAGE
DISCONNECT MACHINE FROM
POWER SOURCE
Place a flat washer (A) Fig 30 on the threads of the
miter gage lock handle (B) and then thread the handle
into the hole (C) in miter gage bar.
Inster plate (D) Fig.41 into the miter gage slot (E) Fig.
41 and slide miter gage onto saw table.
Fig. 30
OPERATION
STARTING AND STOPPING SAW
The on/off switch is located underneath the switch
shield (A) Fig. 32. To turn the saw “ON”, press the green
button (B) Fig. 31 below the shield. To turn the saw
“OFF”, push switch shield (A) Fig. 32.
MAKE SURE THAT THE SWITCH IS IN
THE “OFF” POSITION BEFORE
PLUGGING IN THE POWER CORD. IN THE EVENT OF A
POWER FAILURE, MOVE THE SWITCH TO THE “OFF”
POSITION. AN ACCIDENTAL START-UP CAN CAUSE
INJURY.
LOCKING SWITCH IN “OFF” POSITION
IMPORTANT: When the tool is not in use, the switch
should be locked in the “OFF” position to prevent
unauthorized use. Use a padlock (C) Fig. 31 with a
3/16" diameter shackle.
OPERATIONAL CONTROLS AND ADJUSTMENTS
Fig. 31
Fig. 32
C
A
B
D
B
C
OVERLOAD PROTECTION
The saw is equipped with a circuit breaker (A) Fig. 31. If
the motor shuts off or fails to start due to overloading
(cutting stock too fast, using a dull blade, using the saw
beyond its capacity, etc.), or low voltage, turn the saw
off by pushing the switch shield (D) Fig. 32. Let the
motor cool three to five minutes and push the reset
button (A) Fig. 31, which will reset the overload
device.The motor can then be turned on again in the
usual manner.
NOTE: IF THE PROBLEM PERSISTS, CONTACT THE
NEAREST DELTA CUSTOMER SERVICE CENTER OR
CALL (800) 223-7278.
A
