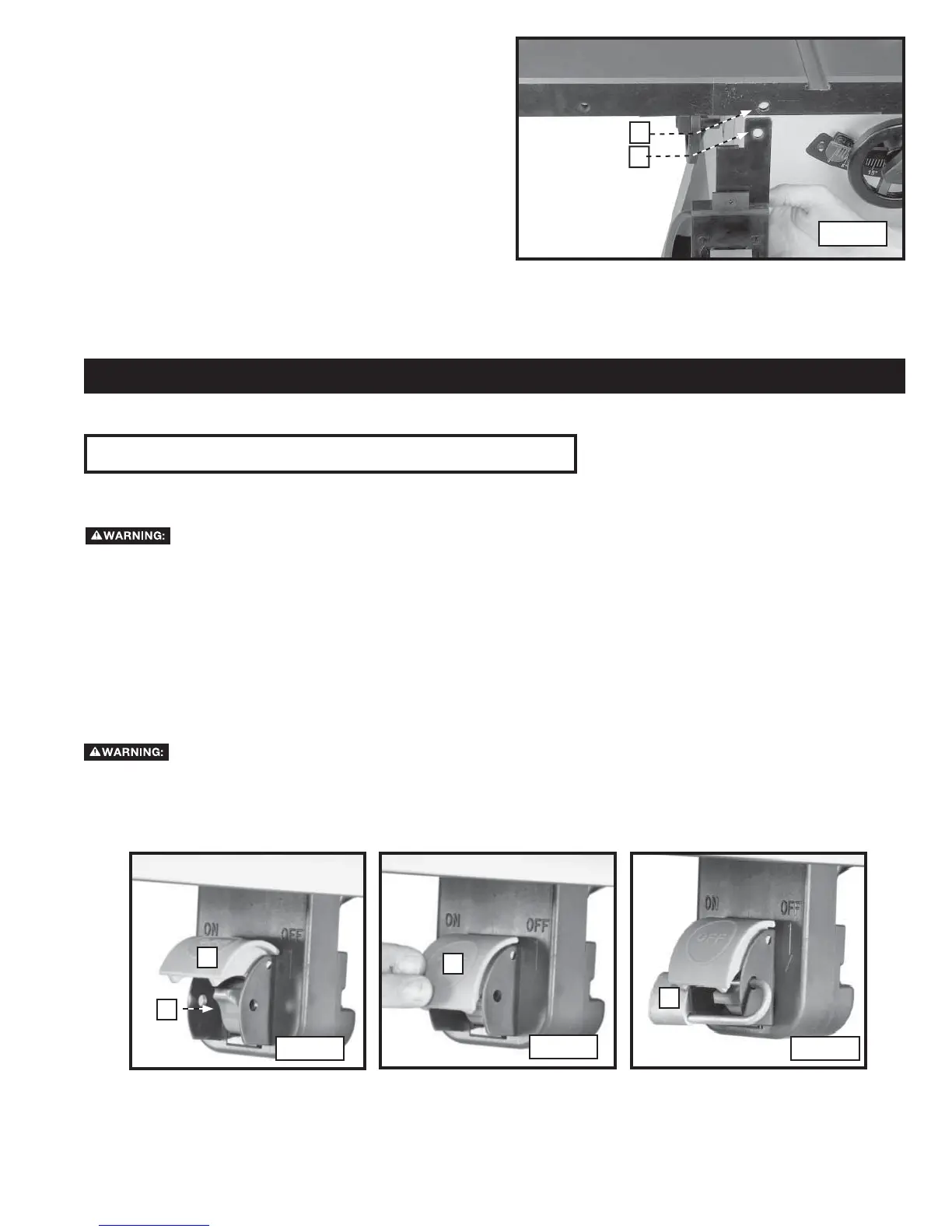

ON/OFF SWITCH
Attach the switch behind the table edge with the hardware
(supplied with the fence). The screw that fastens the front
fence rail will secure the switch by going though the hole
(A) Fig. 45 in the table edge and the hole (B) in the switch.
A
B
OPERATION
OPERATIONAL CONTROLS AND ADJUSTMENTS
LOCKING THE SWITCH IN THE “OFF” POSITION
IMPORTANT: When the machine is not in use, the switch should be locked in the “OFF” position to prevent unauthorized
use, using a padlock (C) Fig. 49 with a 3/16" diameter shackle.
In the event of a power outage (such as a breaker or fuse trip), always move the switch to the “OFF”
position until the main power is restored.
Make sure that the switch is in the “OFF” position before plugging the cord into the outlet. Do not touch
the plug’s metal prongs when unplugging or plugging in the cord.
1. The ON/OFF switch is located underneath the switch shield (A) Fig. 47. To turn the saw “ON”, move the switch lever (B)
to the up position.
2. To turn the saw “OFF”, push down on switch shield (A) Fig. 48.
