14

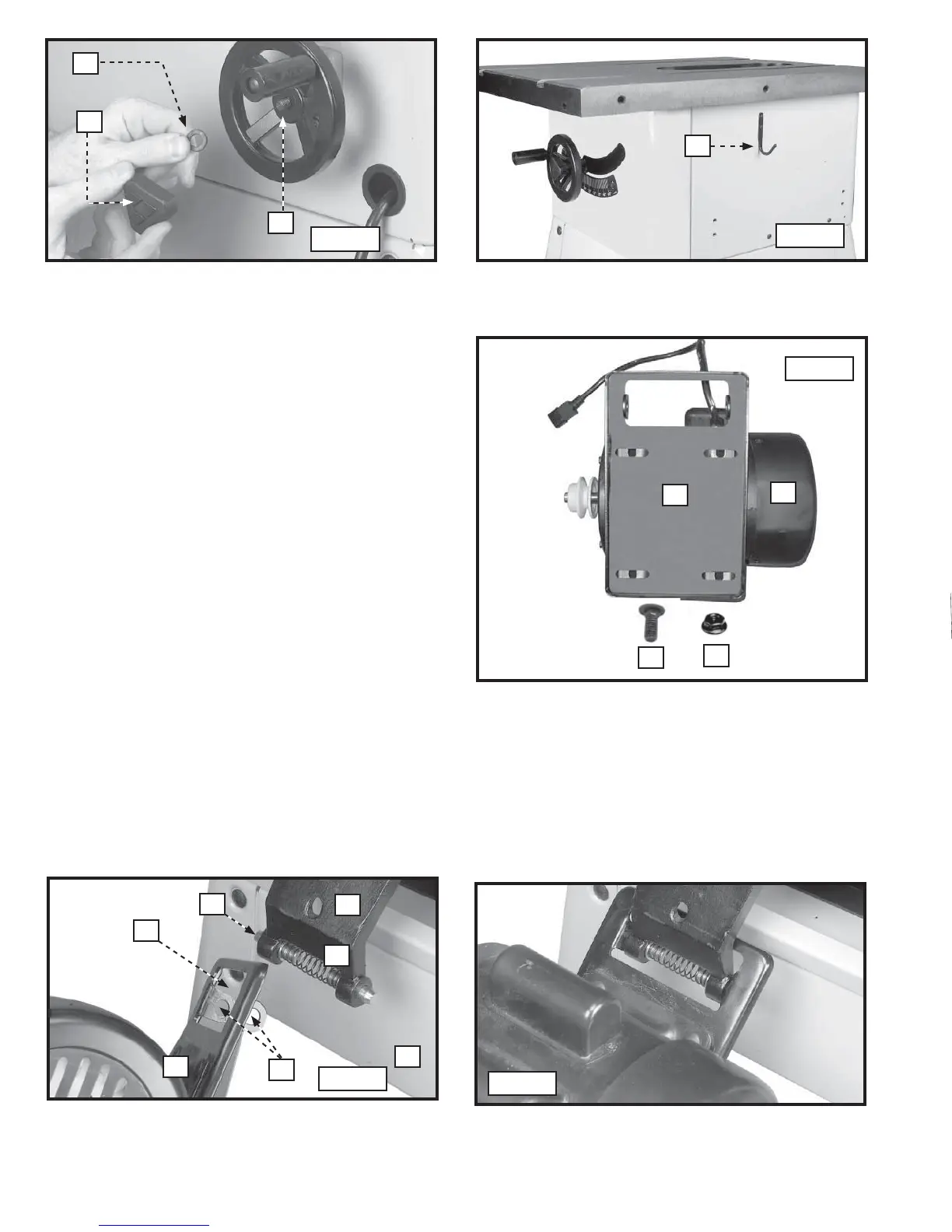

WRENCH HOOK
A hook (H) Fig. 23 for blade wrench storage can be installed in two holes on the side of the saw using two M4x8mm Pan
Head Cap Screws.
MOTOR TO MOTOR MOUNTING PLATE
Attach the motor (A) to the motor mounting plate (B) Fig.
24.
Align the four mounting holes in the motor with the four holes
in the mounting plate. Insert a 5/16-18 x 5/8" carriage bolt
(C) through the hole in the motor and and the hole in the
motor mounting plate. Fasten with a 5/16-18 serrated nut
(E). Repeat this process for the three remaining holes in the
motor and the motor mounting plate.
NOTE: Loosely tighten the hex nuts for further adjustment.
1. Position the motor and motor mounting plate (A) Fig. 25 below the bracket (B) to allow bracket arm to slide through the
large opening (C) in the motor mounting plate (A).
2. Depress the pins (D) Fig. 25 on both sides of bracket (B). Lift the motor mounting plate (A) until the pins (D) are engaged
in the holes (E) Fig. 25 of motor mounting plate (A).
3. The motor and motor mounting plate are shown attached to the rear of the saw in Fig. 26.
H
F
E
B
ATTACHING THE MOTOR AND MOTOR MOUNTING PLATE TO THE SAW
D
B
C
A
E
Fig. 22
Fig. 23
Fig. 25
Fig. 26
D
D
B
A
Fig. 24
C
E
