1. Fasten the rear splitter mounting bracket (A) Fig. 34 to
the rear trunnion. Align the two holes in the rear splitter
mounting bracket (B) with the two holes in the trunnion.
Place a 1/4" lock washer and a 1/4" flat washer on a
1/4-20 x 3/4" hex head bolt. Position the bolt through
the hole in the rear splitter mounting bracket. Thread
the bolt into the rear trunnion. Repeat this process for
the remaining hole. Loosely tighten the hardware for
further adjustment.
2. Raise saw arbor to its highest position.

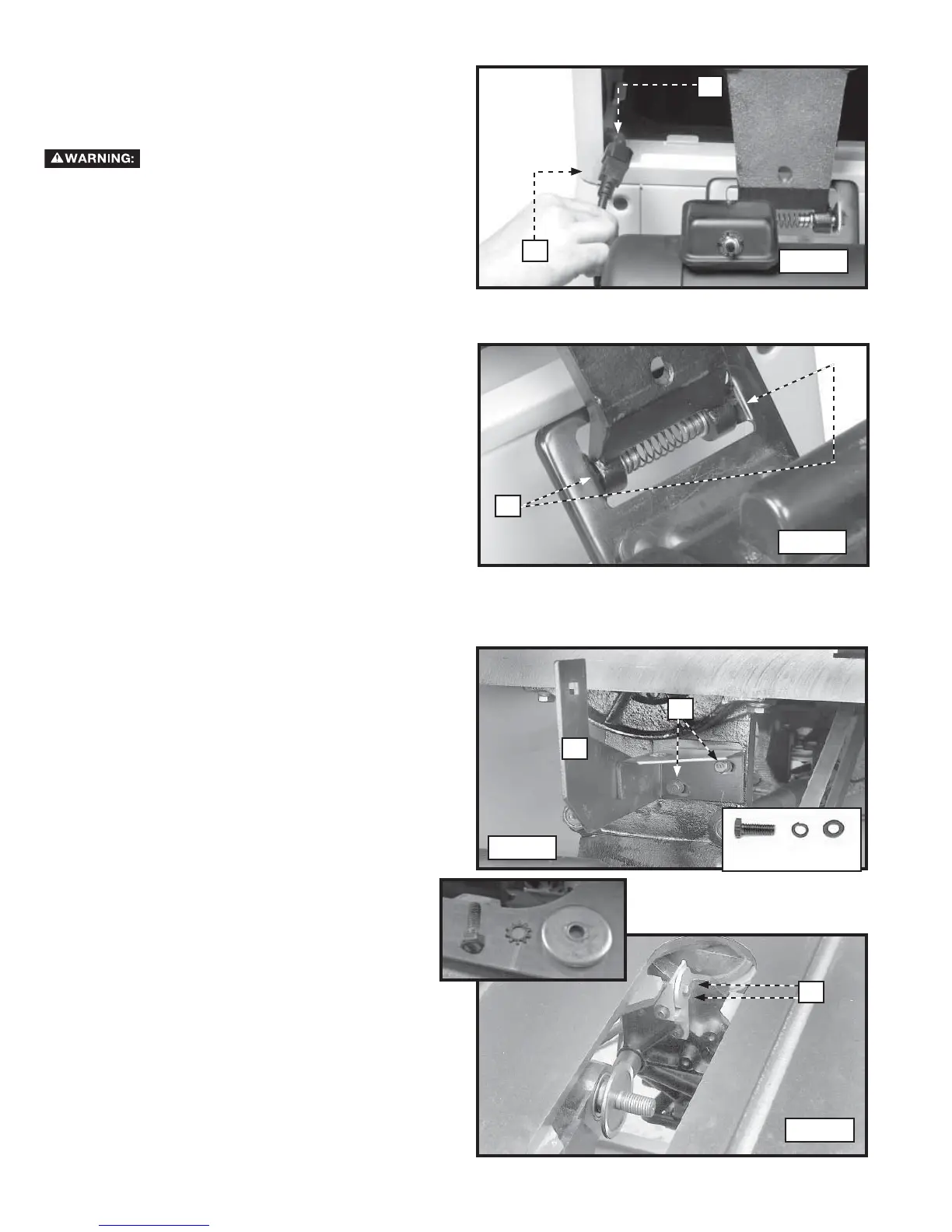

CONNECTING THE MOTOR CORD TO THE SWITCH ASSEMBLY
To remove the motor for transport, unplug the motor cord
from the switch cord. Hold the motor, press in on the pins
(G) Fig. 33 and lower motor off of bracket.
Insert the motor plug (A) Fig. 32 into the female receptacle
(B) of the switch-to-motor cord, located inside the saw
housing.
Clamp the cord that runs from the switch
to the female end (B) Fig. 32 to the inner wall of the saw
unit. Do Not allow it to come in contact with the blade
or any moving parts.
REMOVING THE MOTOR FOR TRANSPORT
G
BLADE GUARD AND SPLITTER ASSEMBLY AND ALIGNMENT
B
Fig. 32
A
Fig. 33
Fig. 34
Fig. 35
A
B
C
3. Remove the screw, lock washer and large washer (C)
Fig. 35 (and pictured in inset) from the inside splitter
mounting bracket.
