13
LEVELING THE TABLE

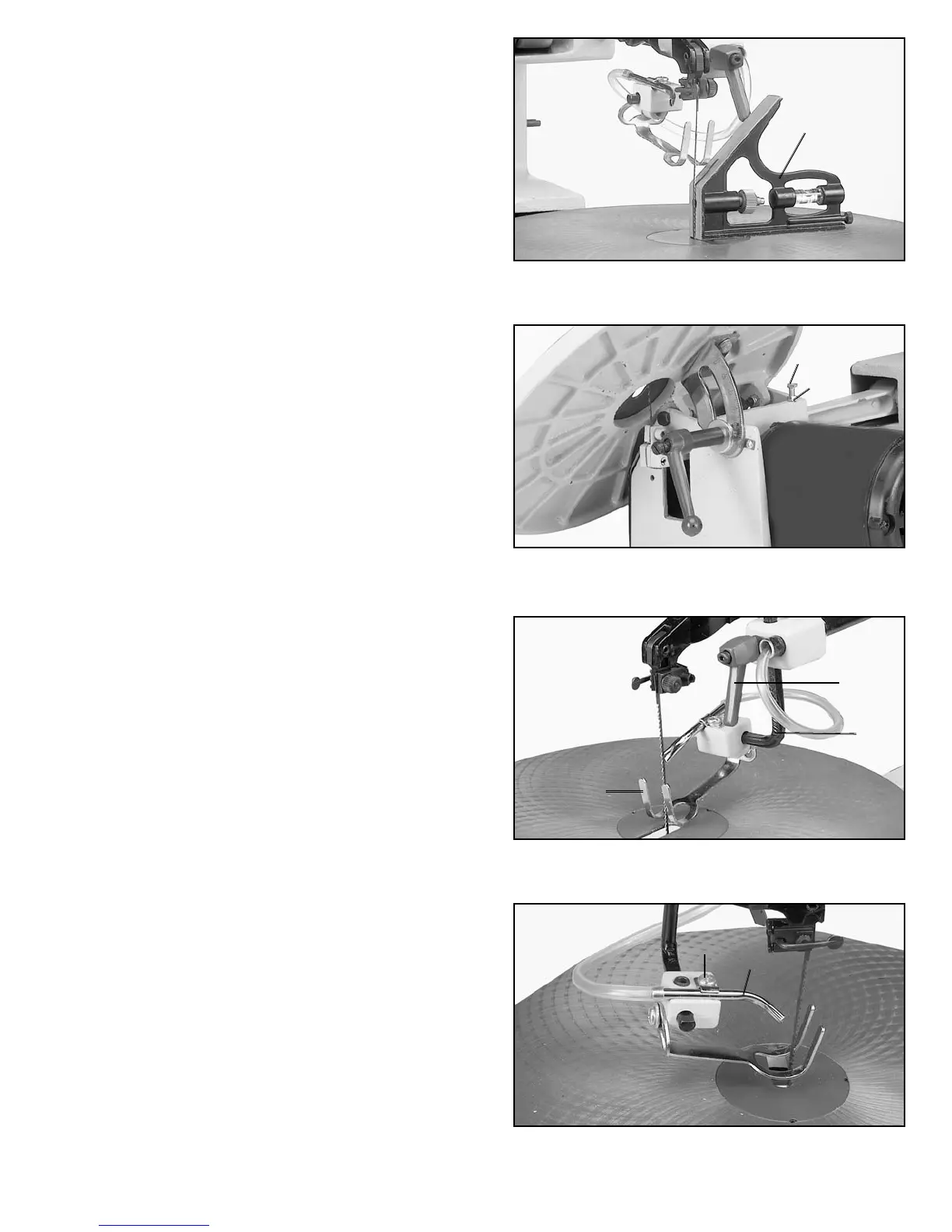

Fig. 33
Fig. 34
Fig. 35
Fig. 36
1. Loosen table lock handle way to the right.
and move the table all the to the right.
2. Using a square (A) Fig. 33, check to see if the table
is 90 degrees to the saw blade, as shown.
3. If the table is not at 90 degrees to the blade, adjust the
table accordingly making certain screw (B) Fig. 34, con-
tacts bottom of table surface when table is 90 degrees
to the blade. Screw (B) can be adjusted by loosening nut
(C), thread screw (B) in or out the desired distance and
tightnen nut (C).
ADJUSTING HOLDDOWN
The holddown (A) Fig. 35, should be adjusted so it con-
tacts the top surface of the work being cut by loosening
lock handle (B) and moving holddown rod (C) up or
down. Then tighten lock handle (B).
ADJUSTING DUST BLOWER
The dust blower (A) Fig. 36, may be moved to direct air
to the most effective point on the cutting line by loosen-
ing screw (B), adjust nozzle (A) accordingly and tighten
screw (B).
A
B
C
A
B
C
B
A
