INTRODUCTION
This manual illustrates the stand with roller extension tables assembled to a Delta DC-380 15″ Planer. The accessory
heavy-duty steel planer stand not only gives a stable support surface for the 15″ planer, but is equipped with two roller
extension tables that provide added work support and prevent sniping of the wood when planing longer workpieces. Each
table features four (4) large 2-1/4″ diameter rollers which will allow smoother, easier infeed and outfeed operations.
UNPACKING AND CLEANING
Your 15″ planer stand with roller extension tables is shipped in one container. Carefully remove the protective coating
from the machined surfaces of the extension tables. This coating may be removed with a soft cloth moistened with

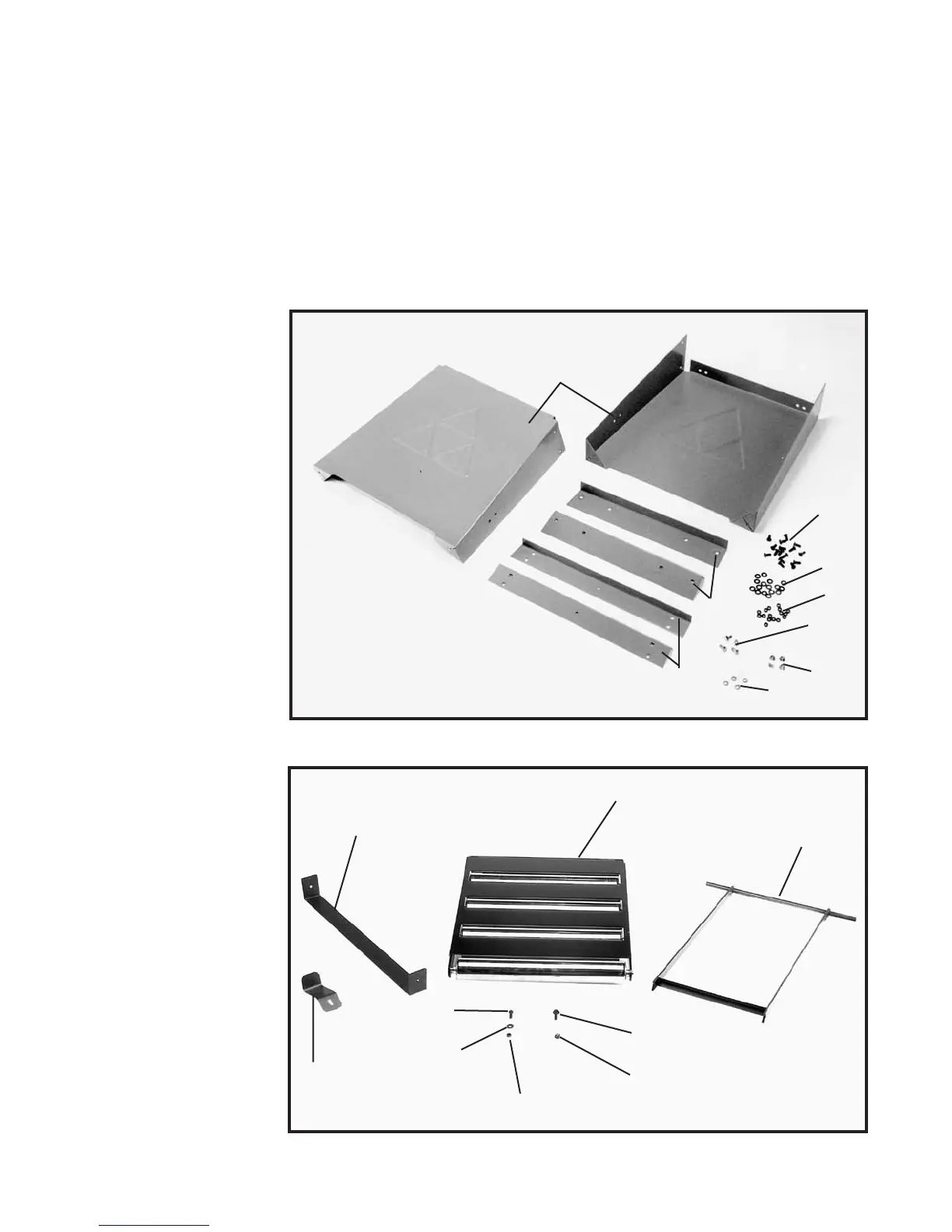

kerosene. DO NOT USE ACETONE, GASOLINE OR LACQUER THINNER FOR THIS PURPOSE. Figure 2, illustrates
the components of the stand. Figure 3 illustrates the components of the roller extension tables.
Fig. 2
Fig. 3
1. Side Supports (2)
2. Upper Stand Support
Brackets (2)
3. Lower Stand Support
Brackets (2)
4. 5/16-18 x 3/4
″ Carriage
Head Screws (16)
5. M8 Flat Washers (16)
6. 5/16-18 Hex Nuts (16)
7. M8 x 30MM Hex Head
Screws (4)
8. M8 Flange Nuts (4)
9. M8.1 Lockwashers (4)
10. Stand Supports (2)
11. Roller Extension Tables (2)
12. 1/4-20 x 3/4″ Hex Head
Screws (6)
13. 1/4″ Flat Washers (8)
14. 1/4-20 Hex Nuts (2)
15. M6 x 20 Hex Flange
Screws (6)
16. M6 Flange Nuts (6)
17. Clips (2)
18. Leg Support
1
2
3
7
8
9
6
5
4
11
10
17
15
16
12
14
13
18
