Delta AS164P-A User Manual

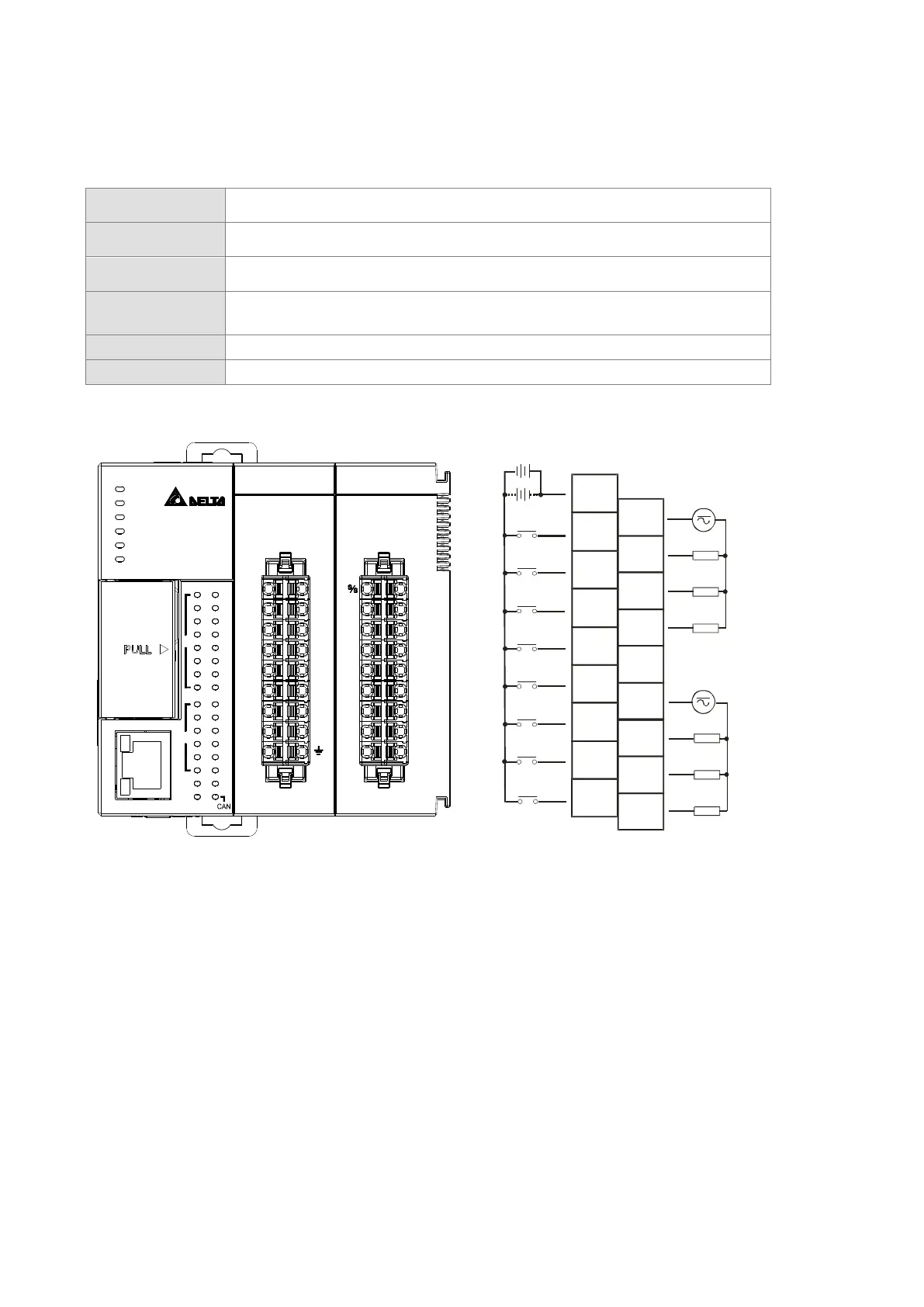

4.6.9.2 Wiring AS218RX-A
Input form
Direct current (sinking or sourcing)
Input current/voltage
24 VDC, 5 mA
Output form
Relay
Output
current/voltage
240 VAC / 24 VDC, 2A/output, 6A/COM
Analog input*
1
12 bits, -10V-10V (voltage), -20mA-20mA (current)
Analog output*
1
12 bits, -10V-10V(voltage), 0- 20mA (current)
*
1
. Refer to section 4.6.9.4 for more details on wiring analog input and output.
ERROR
POWER
BAT. LOW
RUN
COM1
COM2
3
6
4
OUT
7
2
3
4
1
5
C1
●
IN
0
AS218RX
0
2
1
2
IN
3
4
5
1
OUT
C0
0
1
2
7
6
5
5
4
3
VO1
AG
IO1
I1+
VI1
-
V1+
VO2
IO2
I2+
VI2
-
V2+
0
Ethernet
DIOAIO
AG
●
●
●
●
●
IN
S/S
X0.6
X0.0
X0.5
X0.4
X0.3
X0 .2
X0.1
OUT
Y0.2
Y0.1
Y0.0
C0
Y0.5
Y0.4
Y0.3
C1
X0.7
