Delta AS164P-A User Manual

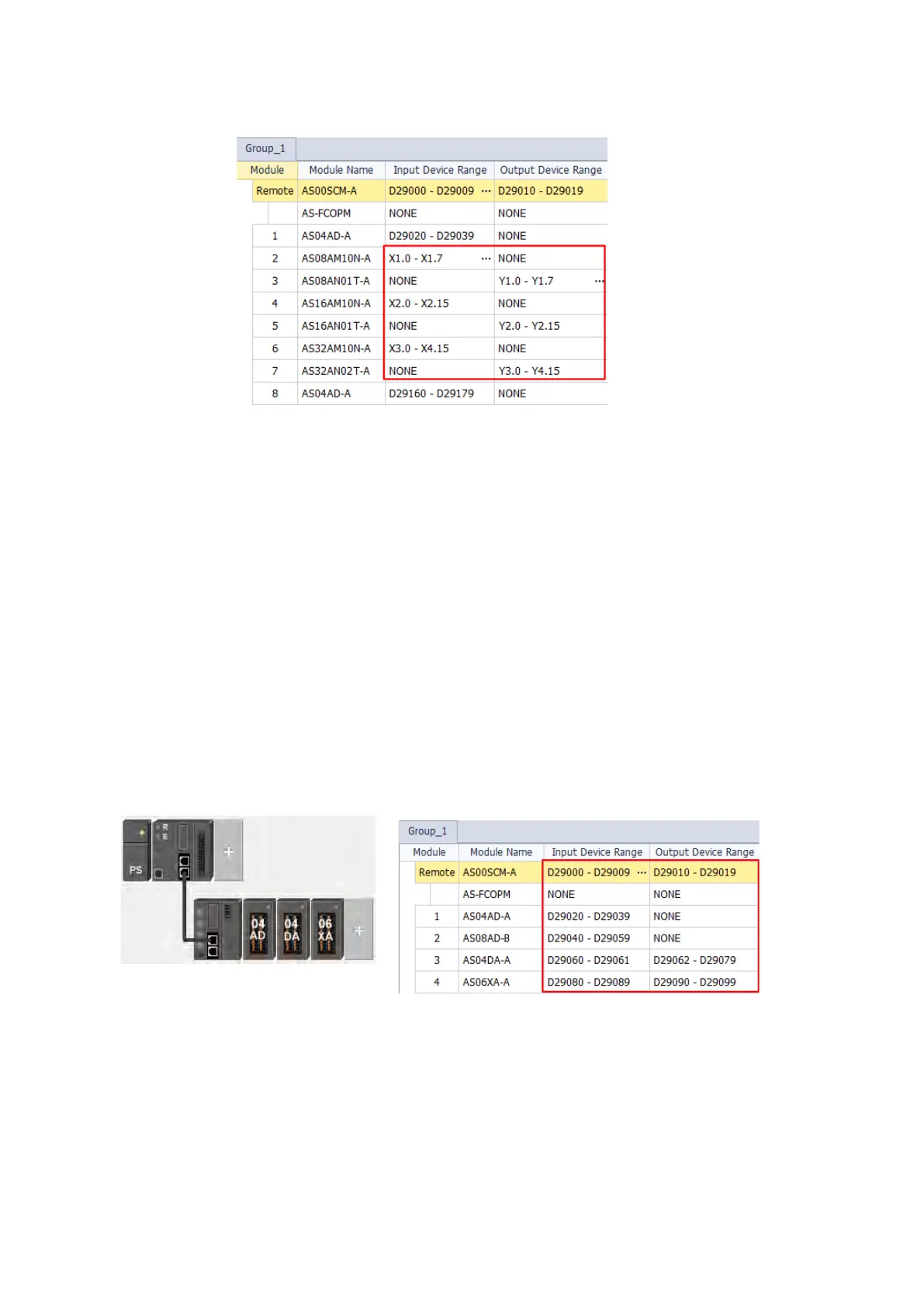

5.5.2 Starting Addresses for Analog Input/Output Modules
HWCONFIG automatically assigns input and output data registers to an analog input/output module in ISPSoft
according to the number of registers defined for the analog input/output module. The default starting address
is D29000.
1. 04AD: There are four input channels. The input device range occupies 20 data registers.
2. 08AD: There are eight input channels. The input device range occupies 20 data registers.
3. 004DA: There are four output channels. The input device range occupies two data registers and the
output device range occupies 18 data registers.
4. 06XA: There are four input channels, and two output channels. The input device range occupies 10 data
registers, and the output device range occupies 10 data registers.
