ASDA-A2 Chapter 2 Installation
2-2 Revision February, 2017
2.4 Installation Direction and Space
Notes:
Incorrect installation may result in a drive malfunction or premature failure of the drive and
motor.

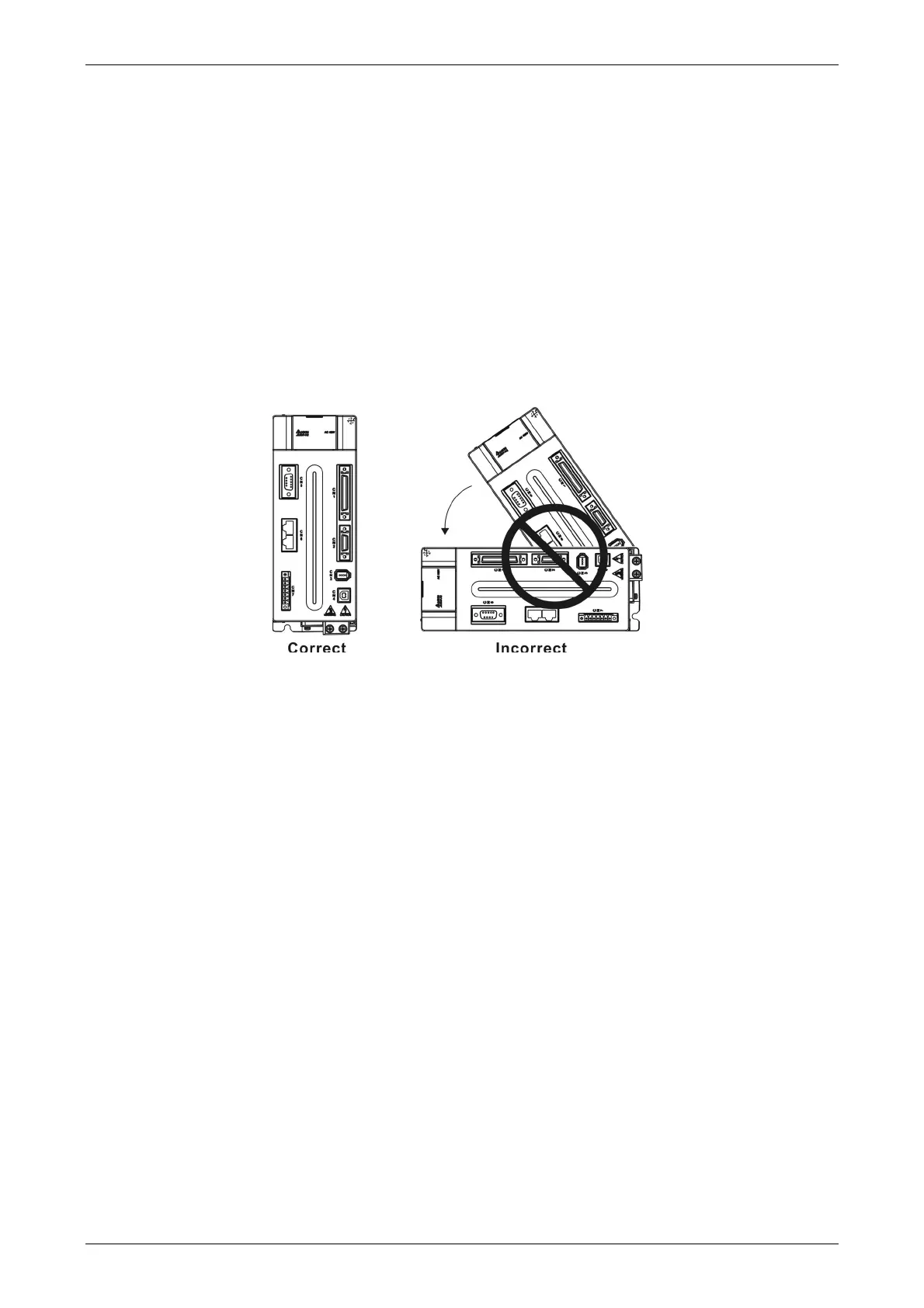

The ASDA-A2 servo drive should be mounted perpendicular to the wall or in the control panel.
In order to ensure the drive is well ventilated, ensure that the all ventilation holes are not
obstructed and sufficient free space is given to the servo drive. Do not install the drive in a
horizontal position or malfunction and damage will occur.
Do not parallel connect the servo drive, or it might burn out the soft-start resistance or the
commutator and danger will occur.
