Delta ASD-A2-1521 Series User Manual

Chapter 3 Wiring ASDA-A2
3-42 Revision February, 2017

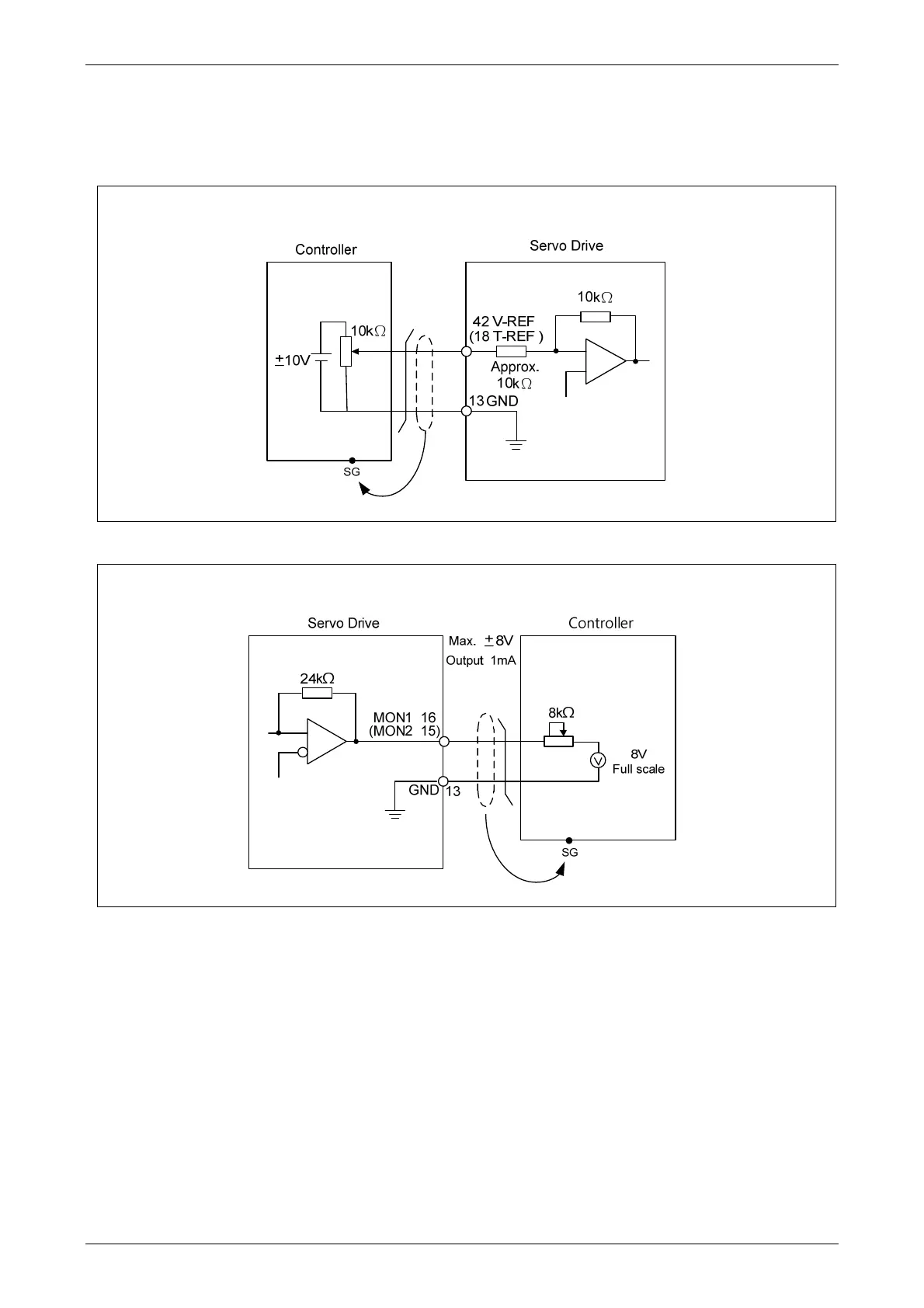

3.4.3 Wiring Diagrams (CN1)
The valid voltage of speed analog command and torque analog command is between -10V and
+10V. The command value can be set via relevant parameters. The input impedance is 10K.
C1: Speed, Input of Torque Analog Command
C2: Analog Monitor Output MON1 ,MON2
