Delta DVP-SA2 Instruction Sheet

- 2 -

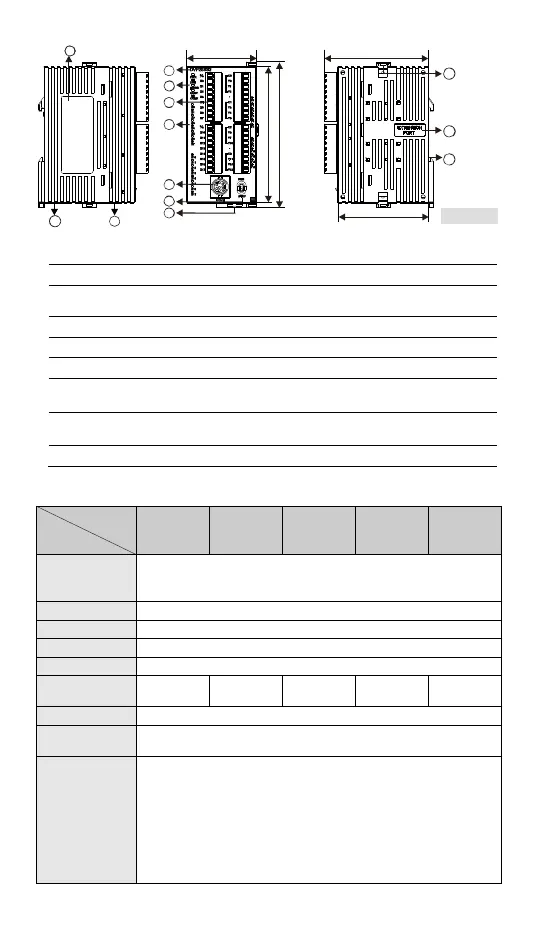

B. DVP28SA2
8
1
2
3
11
12
7
4
5
6
9
13
10
60.00
68.80
90.00 96.00
46.00
9
[ F igur e 1 ]
Unit: mm
1. Model name 9. Nameplate
2. POWER, RUN, ERROR,
COM1, COM2 indicator
10. DC power input
3. I/O terminals 11. Extension unit clip
4. I/O point/COM3 indicator 12. Extension port
5. COM1 (RS-232) port 13. DIN rail mounting slot (35mm)
6. RUN/STOP switch
14. High speed I/O connector
(Only support by DVP12SA2)
7. DIN rail clip
15. COM3 (RS-485) port
(Only support by DVP12SA2)
8. COM2 (RS-485) port
 Electrical Specifications
DVP
Models
Item
12SA211R 12SA211T 28SA211R 28SA211T 28SA211S
Power supply
voltage
24 VDC (-15 to 20%)
(with counter-connection protection on the polarity of DC input power)
DVPPS01/PS02: input 100 to 240 VAC, output 24 VDC/1A (PS02: 2A)
Connector
European standard removable terminal block (Pin pitch: 3.5mm)
Operation Maximum power loss time is 10ms or less.
Inrush current Max. 7.5 A@24 VDC, I
2
t = 0.25A
2
S
Fuse capacity 2.5 A/30 VDC, Polyswitch
Power
consumption
1.8 W 1.5 W 2.9W 1.7W 1.7W
Power protection With counter-connection protection on the polarity of DC input power
Insulation
resistance
> 5MΩ (all I/O point-to-ground: 500 VDC)
Noise immunity
ESD (IEC 61131-2, IEC 61000-4-2): 8kV Air Discharge
EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2kV, Digital I/O: 1kV,
Analog & Communication I/O: 1kV
RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m
Surge(IEC 61131-2, IEC 61000-4-5) :
DC power cable: differential mode ±0.5 kV
RS-232 (shielded): Common mode ±1 kV
digital I/O, RS-485 (unshielded): Common mode ±1 kV
