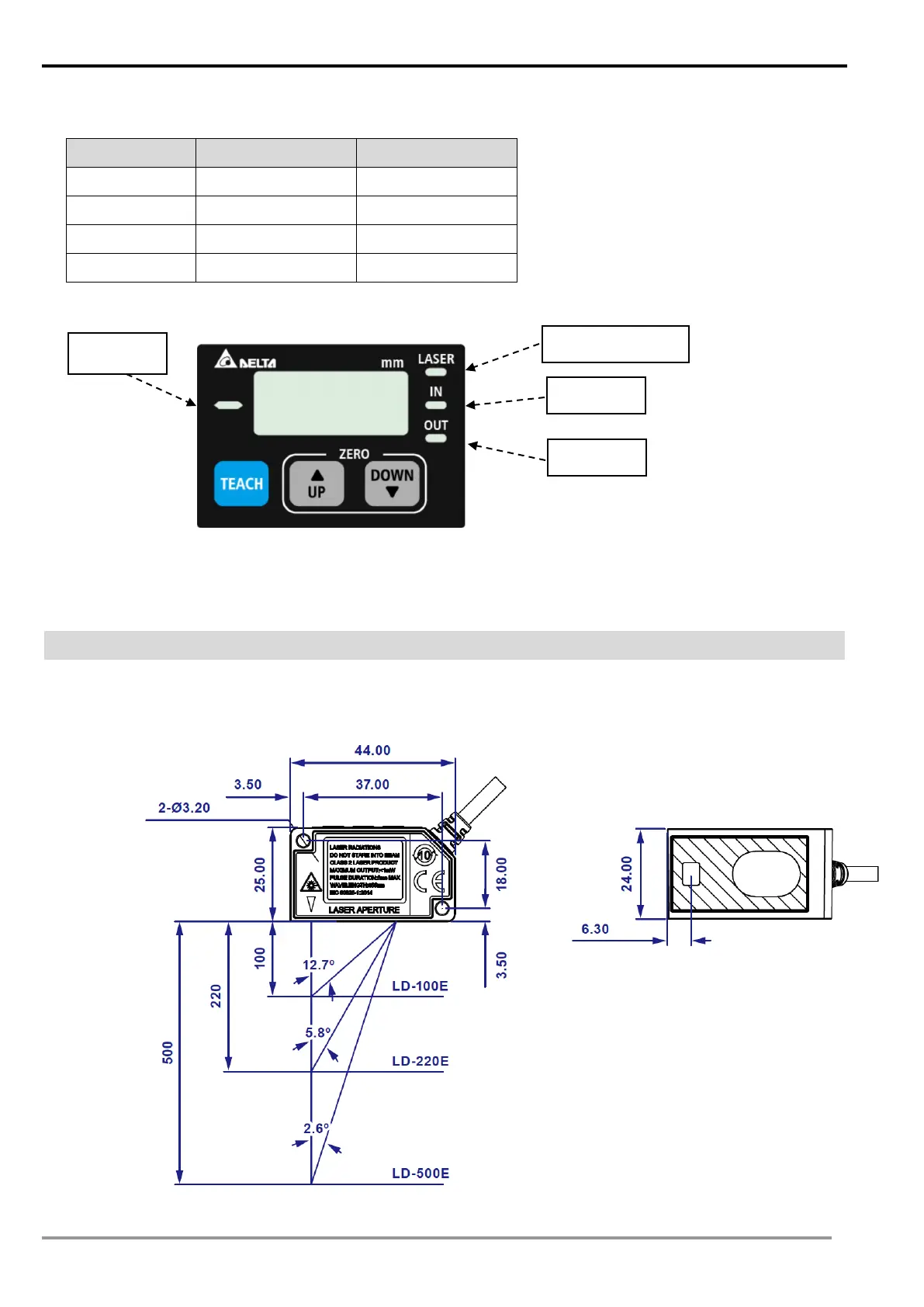

Chapter 1 Product Profile
LD-E Operation Manual
1-2
◎ Laser Indicator
Indicator Color Description
Laser indicator Blue light Start (laser on)
OUT Green light DO
IN Yellow light DI
Negative Red light Negative
1.3 Installation
◎ Dimension (unit: mm)
Laser indicator
DI
DO
Negative
