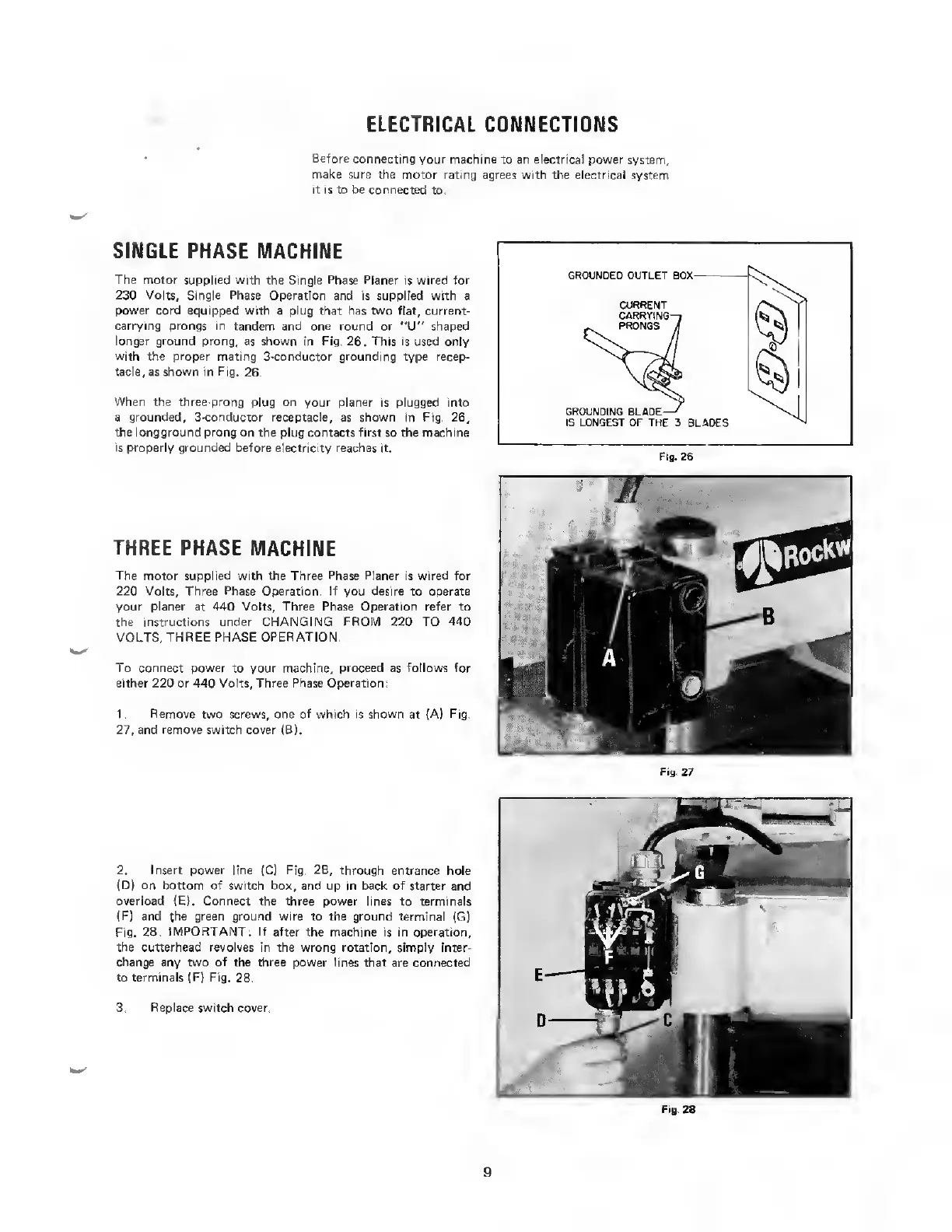

ELECTRICAL CONNECTIONS
Before connecting your machine to an electrical power system,
make sure the motor rating agrees with the electrical system
it is to be connected to.
SINGLE PHASE MACHINE
The motor supplied with the Single Phase Planer is wired for
230 Volts, Single Phase Operation and is supplied with a
power cord equipped with a plug that has two flat, current-
carrying prongs in tandem and one round or "U" shaped
longer ground prong, as shown in Fig. 26. This is used only
with the proper mating 3-conductor grounding type recep¬
tacle, as shown in Fig. 26.
When the three-prong plug on your planer Is plugged into
a grounded, 3-conductor receptacle, as shown in Fig. 26,
the long ground prong on the plug contacts first so the machine
is properly grounded before electricity reaches it.
THREE PHASE MACHINE
The motor supplied with the Three Phase Planer is wired for
220 Volts, Three Phase Operation. If you desire to operate
your planer at 440 Volts, Three Phase Operation refer to
the instructions under CHANGING FROM 220 TO 440
VOLTS, THREE PHASE OPERATION.
To connect power to your machine, proceed as follows for
either 220 or 440 Volts, Three Phase Operation:
1. R emove two screws, one of whic^i is shown at (A) Fig.
27, and remove switch cover (B).
Fig. 27
2. Insert power line (C) Fig. 28. through entrance hole
{ □ } on bottom of switch box, and up in back of starter and
overload (E). Connect the three power lines to terminals
(F) and the green ground wire to the ground terminal (G)
Fig. 28. IMPORTANT: If after the machine is in operation,
the cutterhead revolves in the wrong rotation, simply Inter¬
change any two of the three power lines that are connected
to terminals (F) Fig. 28.
3. Replace switch cover.
Fig. 28
9
