Condition Green LED Red LED
Standby or Countdown FLASH * OFF
Power ON ON OFF
Error or Fault OFF ON
Night time (No DC) OFF OFF
Bootloader mode FLASH *
* ON 1s / OFF 1s

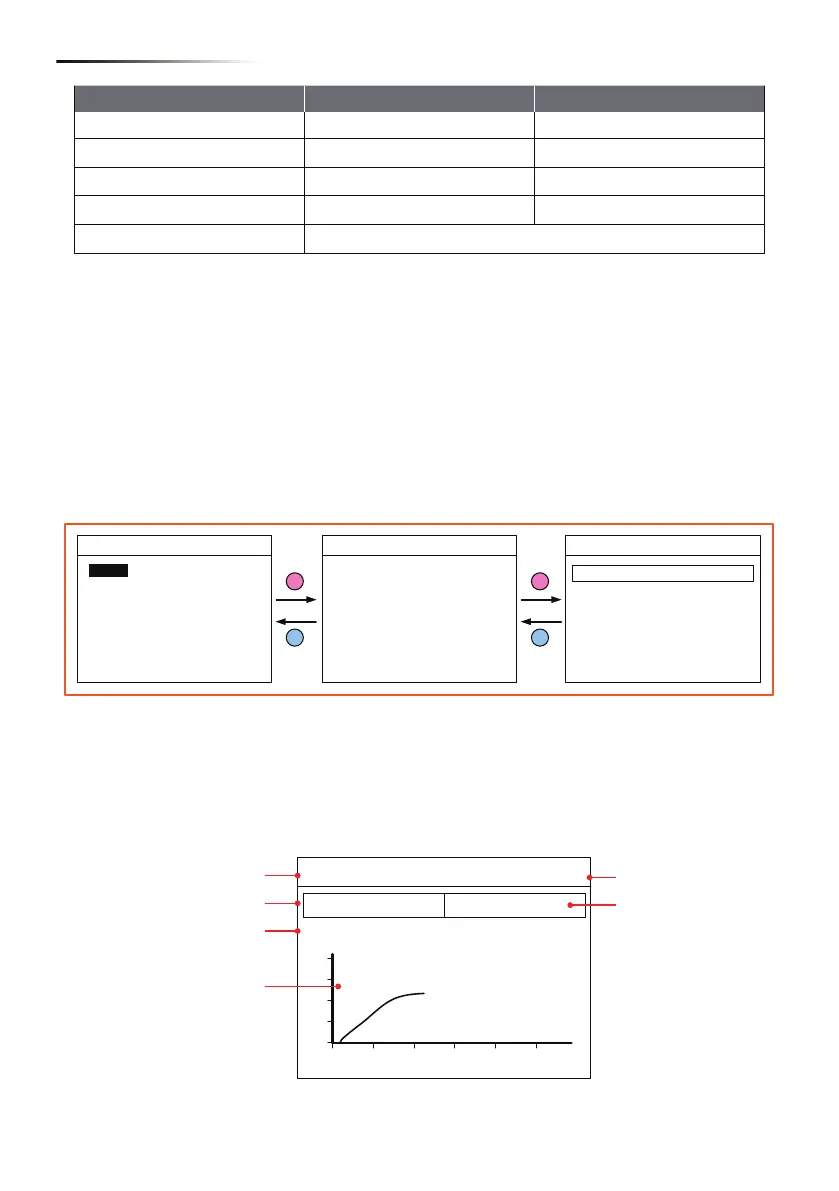

Table 5-1 LED indicator
Figure 5-2 Country and language settings for first startup
Figure 5-3 Home page
5.2. First startup
At first startup, please supply AC power to the inverter. After the LCD display
panel comes live, please set Language and Country according to your
regionn and make sure that there is no any error, fault or warning showing
on home page. Now you can feed in DC power and switch ON the DC switch.
If there is enough power generated from PV array, inverter will start to feed
in power to grid.
21. Jun 2010 13:50
Select Country – 1/3
ENT
EXIT
21. Jun 2010 13:50
No Yes
Confirm Country
21. Jun 2010 13:50
English
Deutsch
Français
Italiano
Español
Nederlands
Select Language
First Startup
Australia
Austria
Belgium
China
Czech
England
France
Are you sure to set county :
xxxxxxxx
ENT
EXIT
5.2.1. Home Page
When inverter is operating normally, the LCD will display the homepage
as shown in Figure 5-3, user can get the information of output power,
inverter status, E-today, date and time.
E-Today: 47kWh
21. Jun 2010 13:50
Runtime: 8.2Hrs Power: 12103W
On Grid
20
15
10
5
0
4 8 12 16 20 24
Today Energy
Today Runtime
Inverter Status
Today Power Curve
Day - Time
Output Power
24
Turn on/off PV inverter
To Next Page
