15
MAINTENANCE

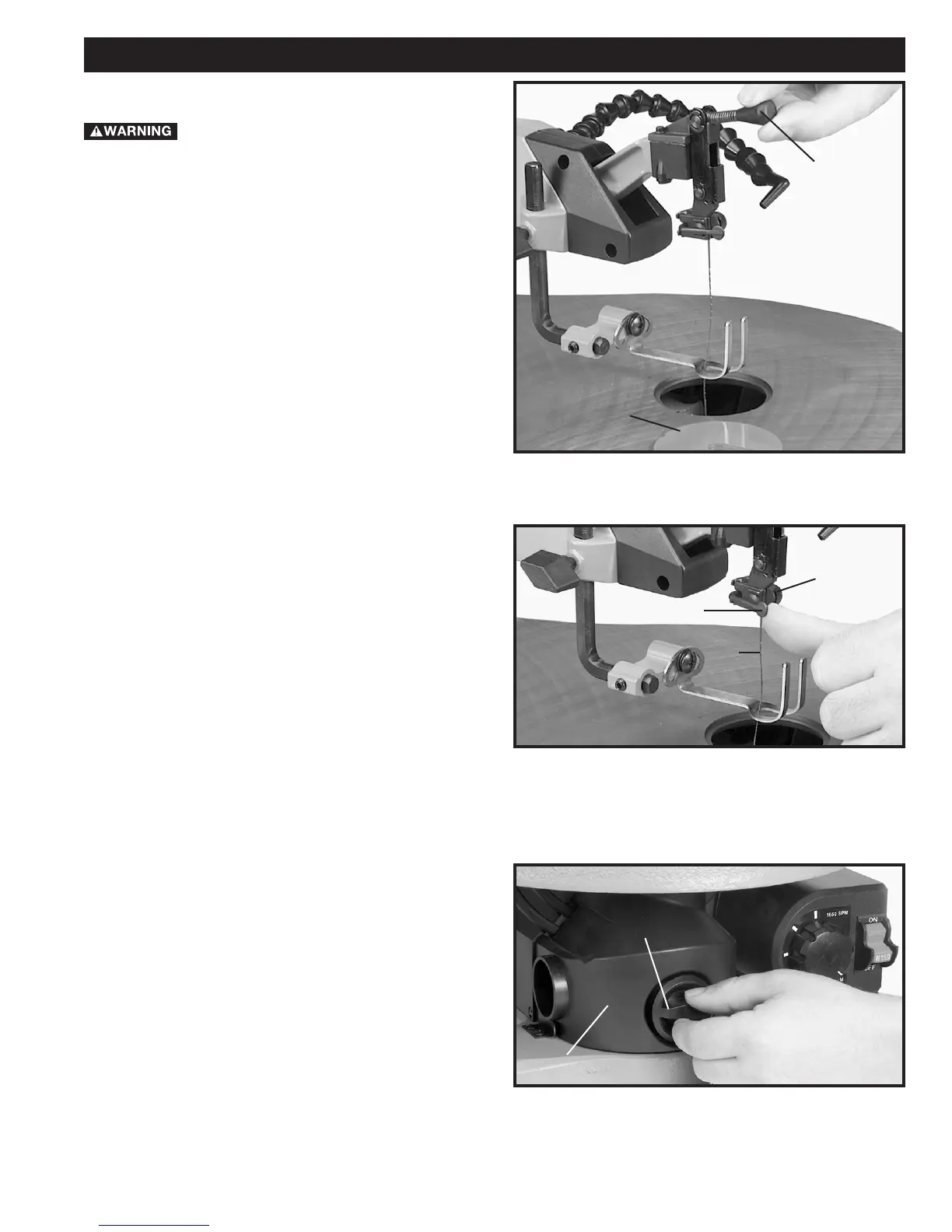

CHANGING BLADES
Fig. 22
B
A
2. Push upper blade chuck locking lever (C) Fig. 23, to
the rear as shown. This will release the blade (D) from
the upper chuck (E).
Fig. 23
E
C
D
3. Remove the dust collection cup (A) by rotating knob
(B) 90° as shown in Fig. 24. Slide dust cup out of the
guides (C) by pulling it toward the front. NOTE: DO NOT
OPERATE THE UNIT WITH THE DUST CUP
REMOVED.
Fig. 24
A
B
DISCONNECT MACHINE FROM POWER
SOURCE.
1. Remove table insert (A) Fig. 22, and release blade
tension by pulling tension lever (B) forward, as shown.
To Next Page
