FUNCTIONAL DESCRIPTION
The models T²-30 (30" capacity) and T²-50 (50" capacity) can be attached to the 36-729 Cabinet Saw, Delta 10"
Professional Table Saws, Delta Contractors Saws, and Unisaws, in addition to other brands of table saws. The T²
Fence System includes the fence, guide tube, front guide rail, and rear guide rail.

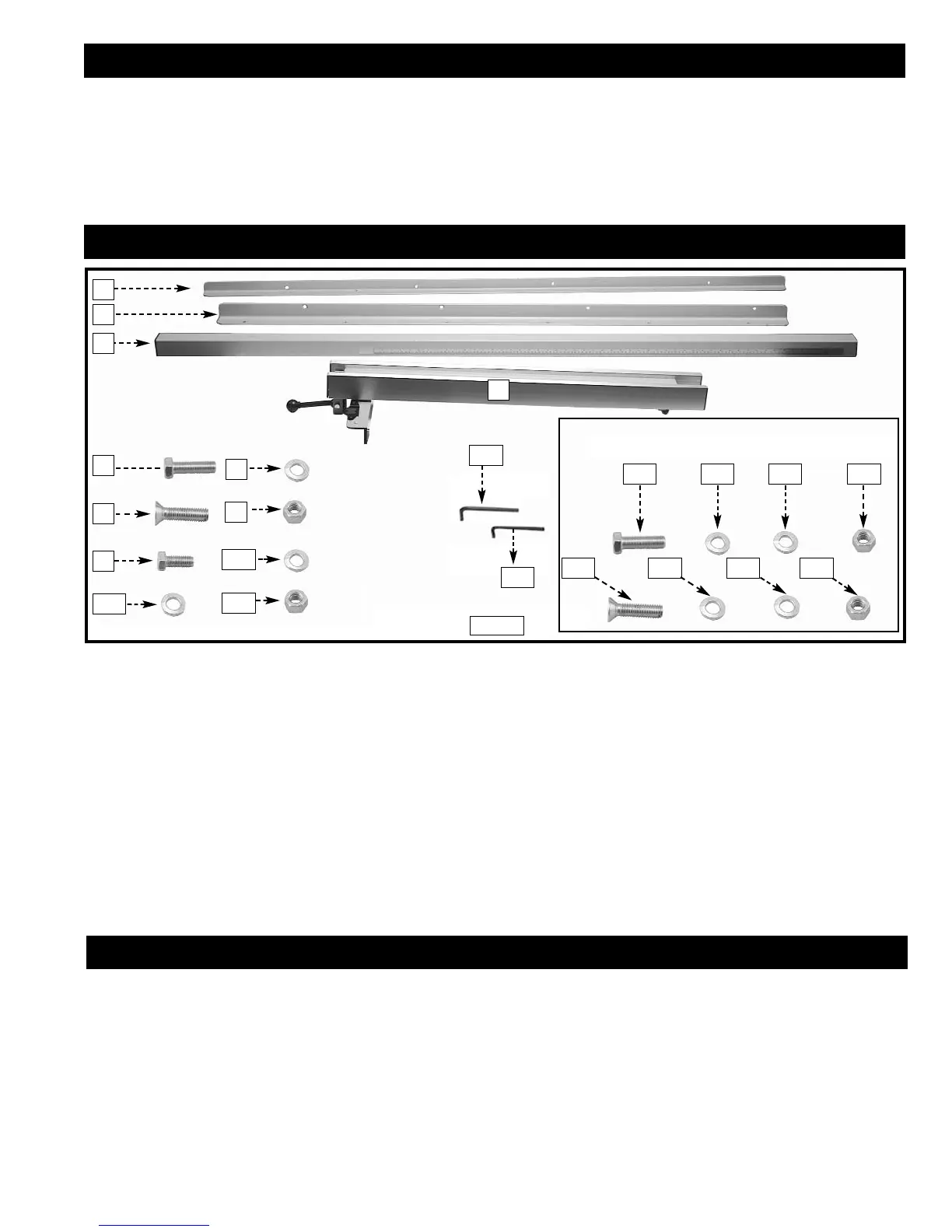

CARTON CONTENTS
1. Rear Guide Rail
2. Front Guide Rail
3. Guide Tube
4. 36-726 Fence
5. 3/8-24x1 1/4" Hex Head Bolt (2)
6. M8x1.25 x 30mm Flat Head Screw (2)
7. M8x1.25x16mm Hex Head Screw (6)
8. 8mm Lockwasher (8)
9. M8x1.25 Hex Nut (2)
10. 8mm Flat Washer (2)
11. 3/8” Lockwasher (4)
12. 3/8-24 Hex Nut (2)
13. 5mm Hex Wrench
14. 4mm Hex Wrench
NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in
the manual are representative only and may not depict the actual color, labeling, or accessories and are intended to
illustrate technique only.
15. 3/8-24x1 1/4” Hex Head Bolt (2)
16. 3/8" Flat Washer (4)
17. 3/8" Lockwasher (4)
18. 3/8-24 Hex Nut (2)
19. M8x1.25 x 30mm Flat Head Screw (2)
20. 8mm Lockwasher (2)
21. 8mm Flat Washer (2)
22. M8x1.25 Hex Nut (2)
NOTE: You cannot use the T
2-
50 with saws that have
sheet metal extension wings.
NOTE: Items 15 through 22 are used only with the T
2-
30
and are packed in the rail container.
Fig. 2
ADDITIONAL HARDWARE FOR T
2
-30
WHEN USED WITH SAWS
HAVING SHEET METAL WINGS
1
2
3
4
5
6
7
11
8
9
11
12
13
14
15
16 17 18
19
20
21 22
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
4mm Hex Wrench (supplied)
5mm Hex Wrench (supplied)
Standard Screwdriver
Phillips Screwdriver
Adjustable Wrench
Square
3mm Hex Wrench (not supplied)
This unit will take approximately 1 hour to 1-1/2 hours to assemble.
