9 - English
B

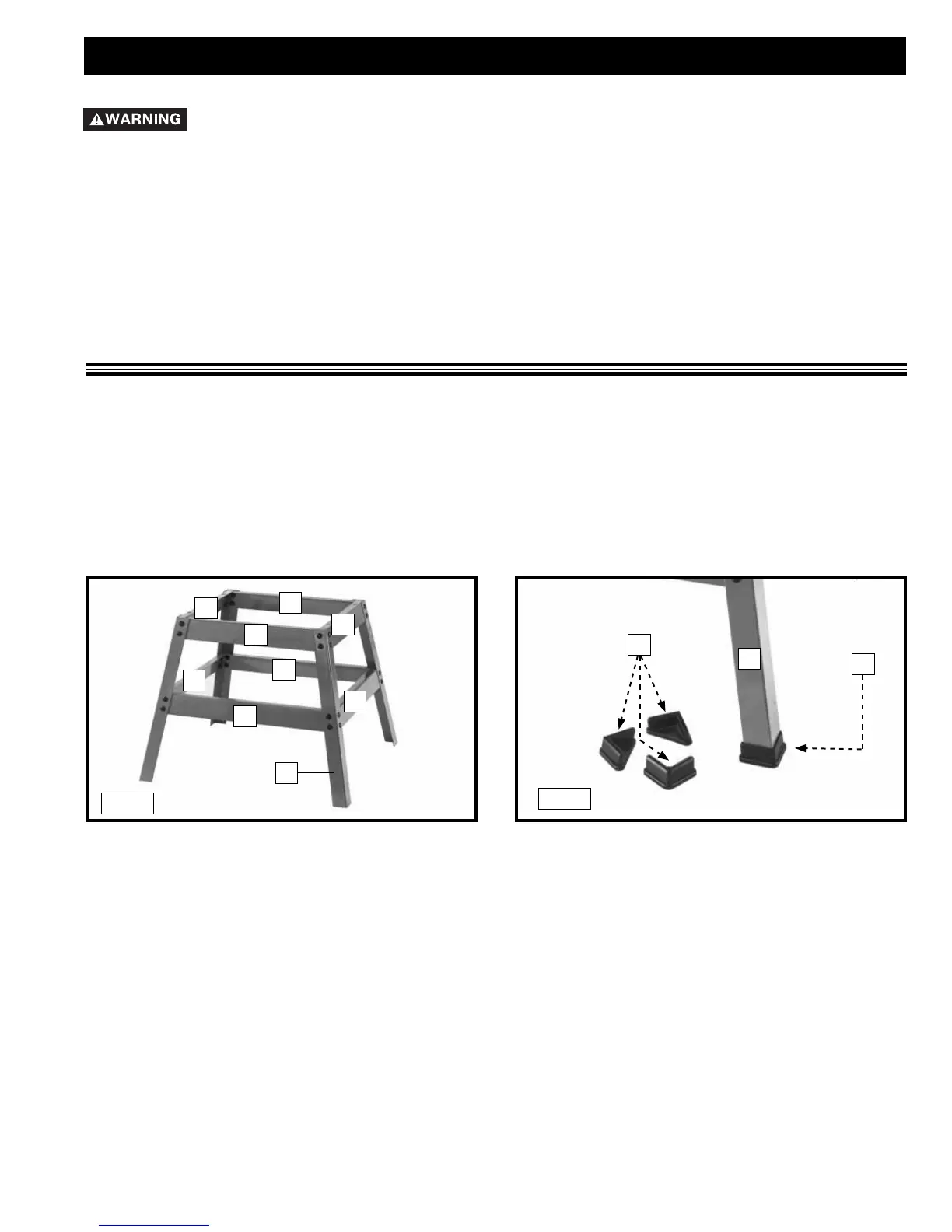

ASSEMBLING THE STAND
Assemble the stand as shown in Fig. 1. The braces, legs, and feet are labeled the same in Fig. C and Fig. 1. Insert the
M8 x 1.25 x 16 mm carriage head screws (H) Fig. C through the legs and braces. Place the 3/8" flat washers (G) Fig. C
on the screws. Secure with the M8 x 1.25 hex nuts (I) . Hand-tighten for future adjustment.
NOTE: The top lips of the two top side braces (B) Fig. 1 must fit on top of the top lips of the front and rear braces (A).
The side braces (B) have holes on top for mounting the saw to the stand.
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
Assembly for this machine takes approximately 2 hours.
For your own safety, do not connect the machine to the power source until the machine is
completely assembled and you read and understand the entire instruction manual.
10mm Wrench
13mm Wrench
19mm Wrench
Flat-Head Screwdriver
Phillips-Head Screwdriver
Arbor Wrench (Provided)
Open-end Arbor Wrench (Provided)
Drill with 1/8" Bit
Straight Edge
Carpenter's Square
Combination Square
B
A
E
C
D
A
C
D
F
E
F
Fig. 1
Fig. 2
