14
Fig. 29
Fig. 30

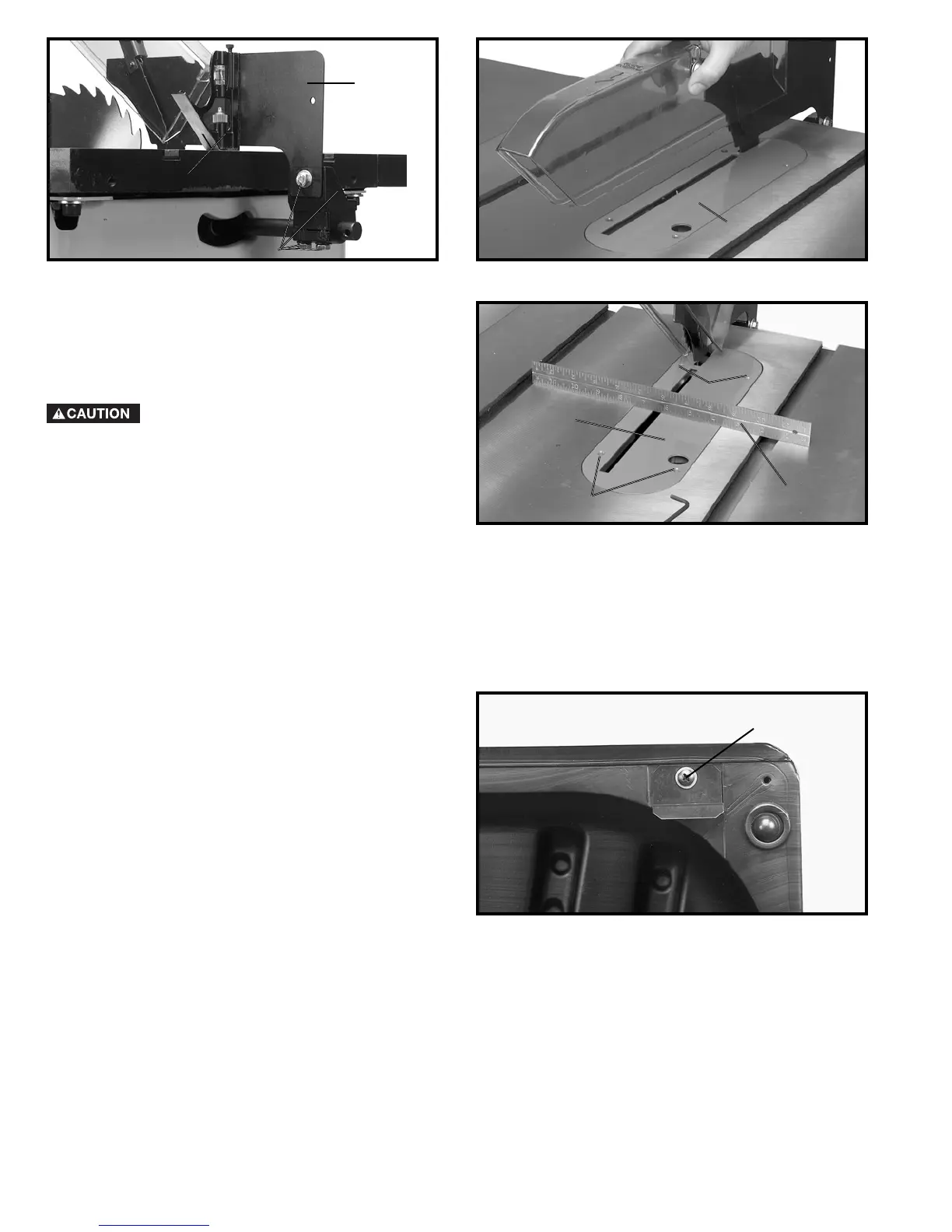

13. Holding the clear blade guard, lower the saw blade
and assemble the table insert (E) Fig. 30, into the open-
ing on the saw table.
14. Place a straight edge (B) across the table at both
ends of the table insert as shown in Fig. 31.
THE TABLE INSERT (A) SHOULD
ALWAYS BE LEVEL WITH THE TABLE.
If an adjustment is necessary, turn the adjusting screws
(C), as needed, with the 1/8" allen wrench supplied.
Fig. 31
Fig. 33
A
MOTOR COVER
NOTE: IF YOUR UNISAW HAS AN LVC STARTER
BOX, YOU WILL HAVE TO ATTACH TWO BOTTOM
SPRING CLIPS TO THE MOTOR COVER. IF YOUR
UNISAW HAS A MAGNETIC STARTER BOX, THE
SPRING CLIPS ARE ALREADY ATTACHED TO THE
MOTOR COVER.
1. Attach the two motor cover clips to the motor cover.
Align the hole in the motor cover clip with the hole in the
motor cover. Place a 13/64 flat washer onto a 10-32x1/2"
screw (A), insert screw through the hole in the motor
cover clip and thread screw (A) into the tapped hole in the
motor cover, repeat this process for the remaining motor
cover clip, Fig. 33.
P
C
D
E
C
B
C
A
