Appendix B Accessories
_
VFD-B Series
Revision 10/2005,
BE13, SW V4.08
B-29
B.5 Remote Panel
Adapter (RP
A 01)
Remote panel adapter for VFDPU01

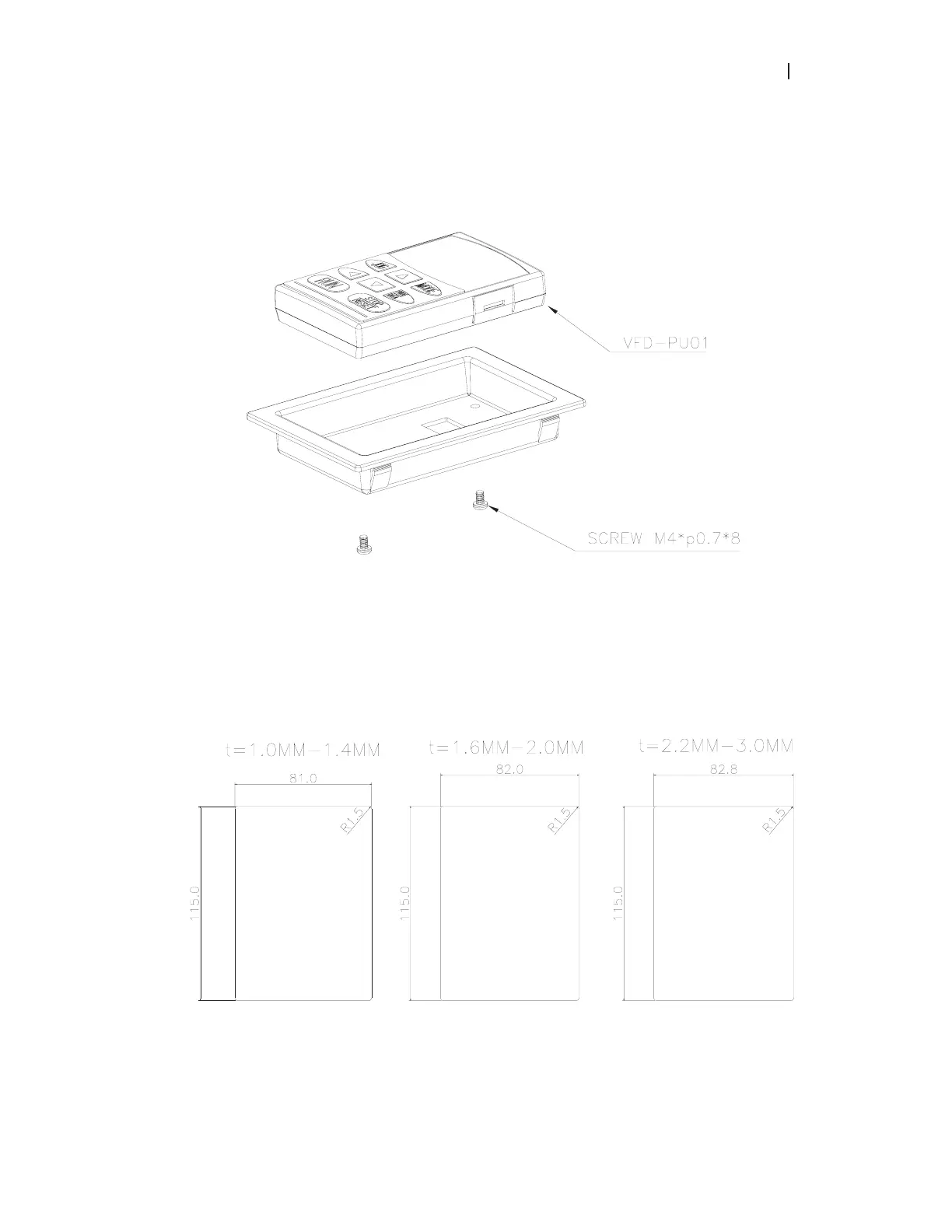

Mounting hole dimensions
(Dimensions are in millimeter)
Following
is
the
mounting
ho
le
dimension
of
the
plate
for
RPA01.
Please
choose
the
applicable
one
from
below,
depending on the plate thickness (t).
