Chapter 5 Parameters_VFD-B Series
5-42
Revision 10/2005, BE13, SW V4.08
02 - 05
2-wire/ 3-wire Operation Control Modes
Factory Setting: 00
Settings 00 2-wire: FWD/STOP, REV/STOP
01 2-wire: FWD/REV, RUN/STOP
02 3-wire Operation

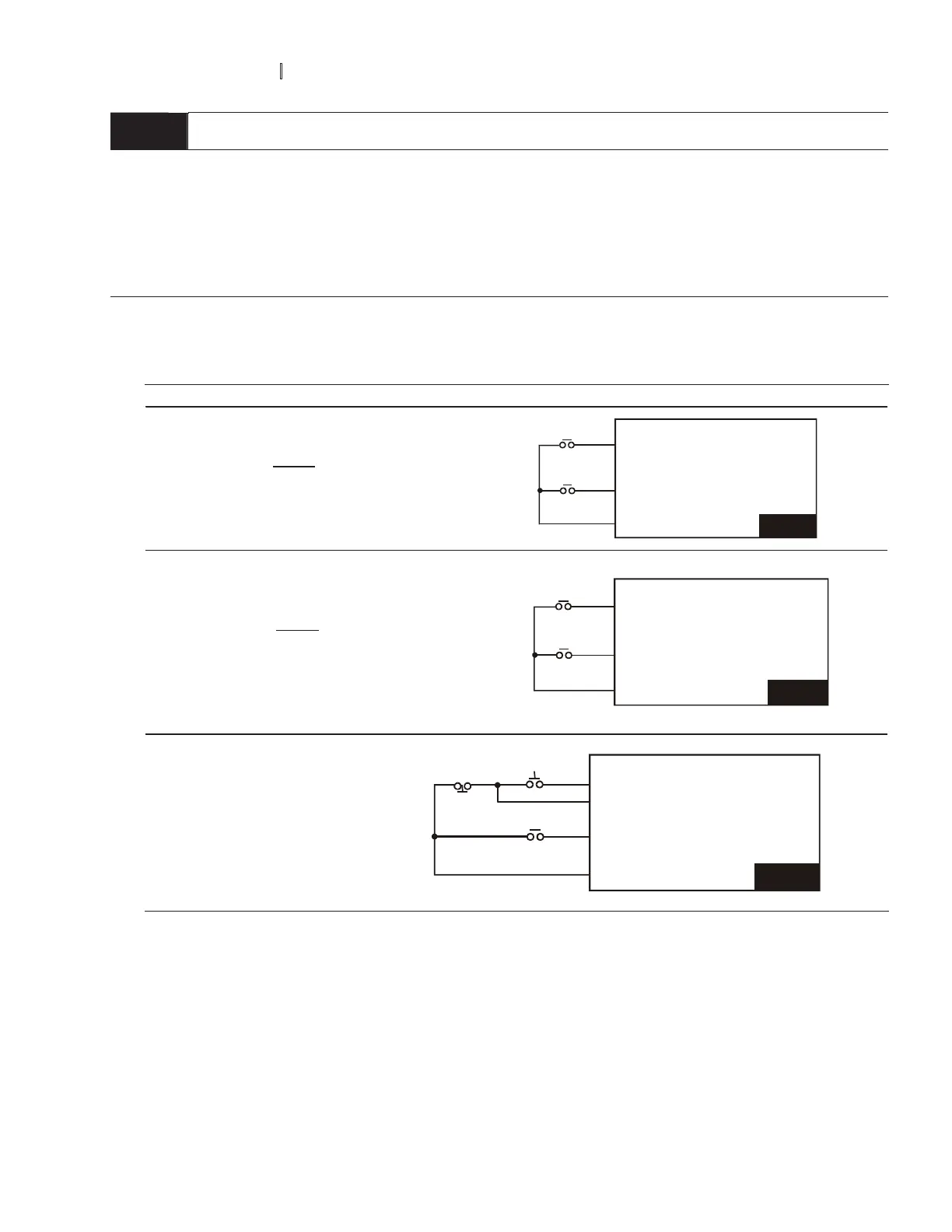

There are three different types of control modes:
02-05 External Terminal
00
2-wire
FWD /STOP
REV / STOP
V
FD-B
FWD:("OPEN":STOP)
("CLOSE":FWD)
REV:("OPEN": STOP)
("CLOSE": REV)
DCM
FWD/STOP
REV/STOP
01
2-wire
FWD/ REV
RUN / STOP
V
FD-B
FWD:("OPEN":STOP)
("CLOSE":RUN)
REV:("OPEN": F
("CLOSE": REV)
DCM
RUN/STOP
FWD/REV
WD)
02 3-wire
V
FD-B
FWD:("CLOSE":RUN)
EF: ("OPEN":STOP)
REV:("OPEN": F
("CLOSE": REV)
DCM
STOP RUN
REV/FWD
WD)
