Appendix B Accessories_VFD-B Series
B-28 Revision 10/2005, BE13, SW V4.08

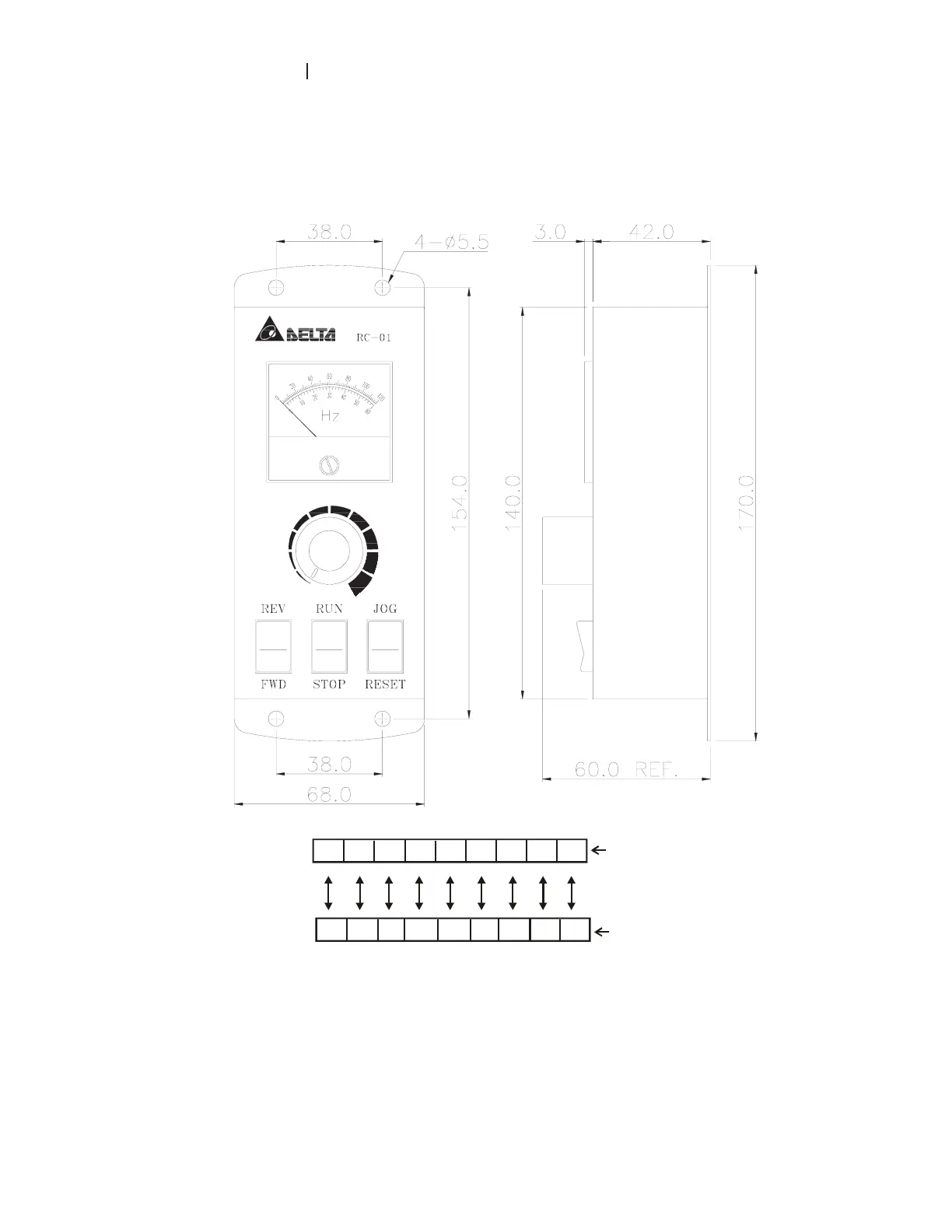

B.4 Remote Controller RC-01
Dimensions are in millimeter
AFM ACM +10VAVI DCMMI5 FWD REV JOG
8 6
5
4 16 15 14 13 11
RC-01
Terminal
block
(Wiring
connections)
VFD-B
I/O
Bloc
VFD-B Programming:
Pr.02-00 set to 1
Pr.02-01 set to 1 (external controls)
Pr.02-05 set to 1 (setting Run/Stop and Fwd/Rev controls)
Pr.04-08 (MI5) set to 8 (External reset)
To Next Page
