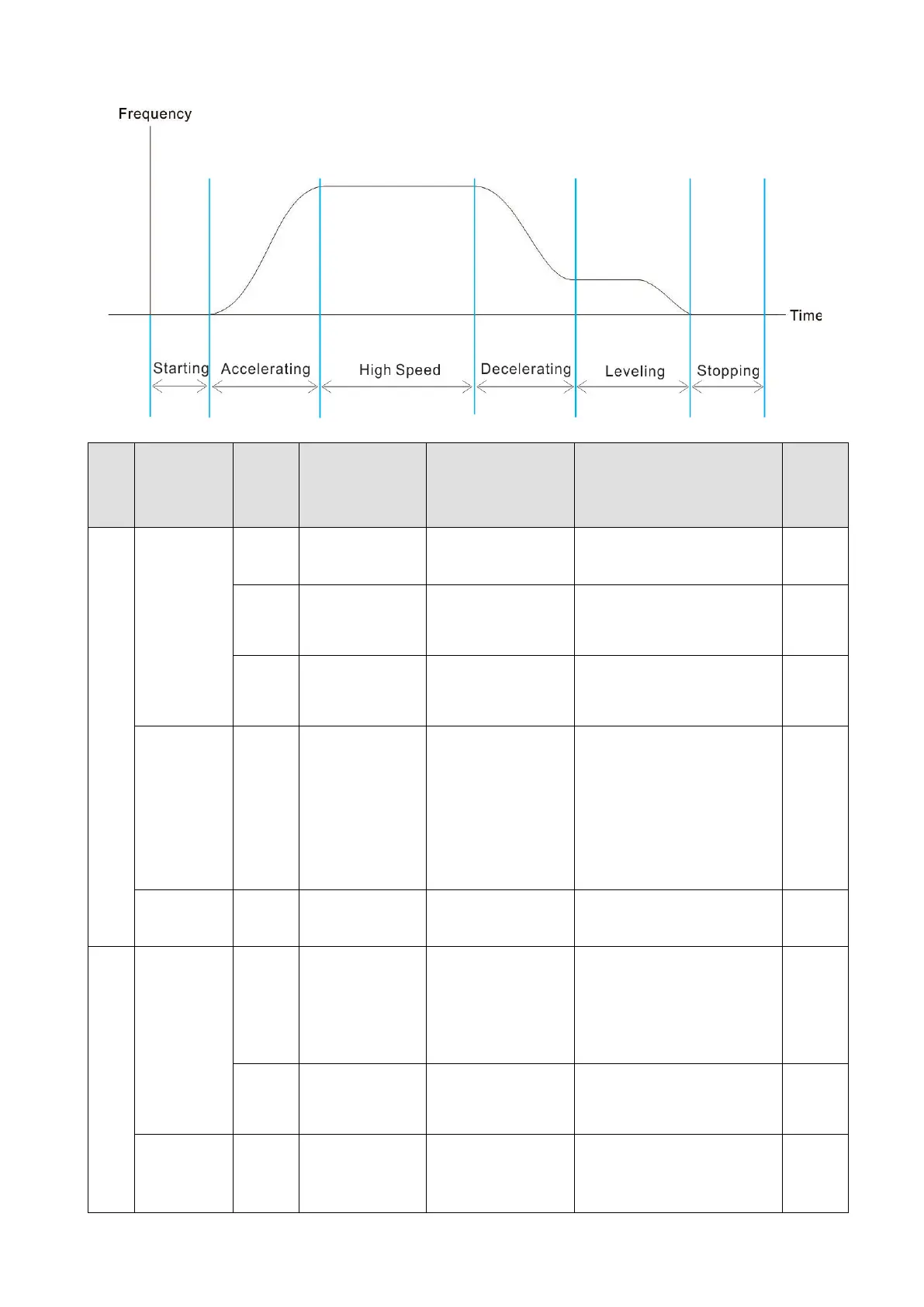

10-4 Elevator Performance Fine-tuning
Stage
Function Pr. Control Mode Description Settings Default
All
Slip
Compen-
sation
05-13
SVC
Slip Compensation
Gain
0.00–10.00 1.00
05-23 VF, SVC
Slip Compensation
Gain % (Power
Generation Mode)
0.0–100.0% 0.0
05-24 VF, SVC
Slip Compensation
Gain % (Electricity
Mode)
0.0–100.0% 0.0
System
Control
11-00
FOCPG, FOCPM System Control
Bit 0=1: ASR auto-tuning;
PDFF enabled
(Pr.11-06–11-08, Pr.11-19)
Bit 7=1: Zero speed
position control is enabled
(Pr.10-19, Pr.10-22–10-24)
0000h
Comfort 11-05 FOCPG, FOCPM
Mechanical Inertial
Ratio
1–300% 40
Starting
Delay Time
02-31
VF, VFPG, SVC,
FOCPG, FOCPM
Magnetic
Contactor
Contracting Delay
Time between
Drive and Motor
0.010–65.000 sec. 0.200
02-29
VF, VFPG, SVC,
FOCPG, FOCPM
Brake Release
Delay Time when
Elevator Starts
0.000–65.000 sec. 0.250
Start-up
Adjustment
01-08
VF, VFPG, SVC
Fourth Output
Voltage Setting
230V models: 0.1–255.0 V
460V models: 0.1–510.0 V
5.0
10.0
