Chapter 7 Optional AccessoriesC2000 Plus
7-149

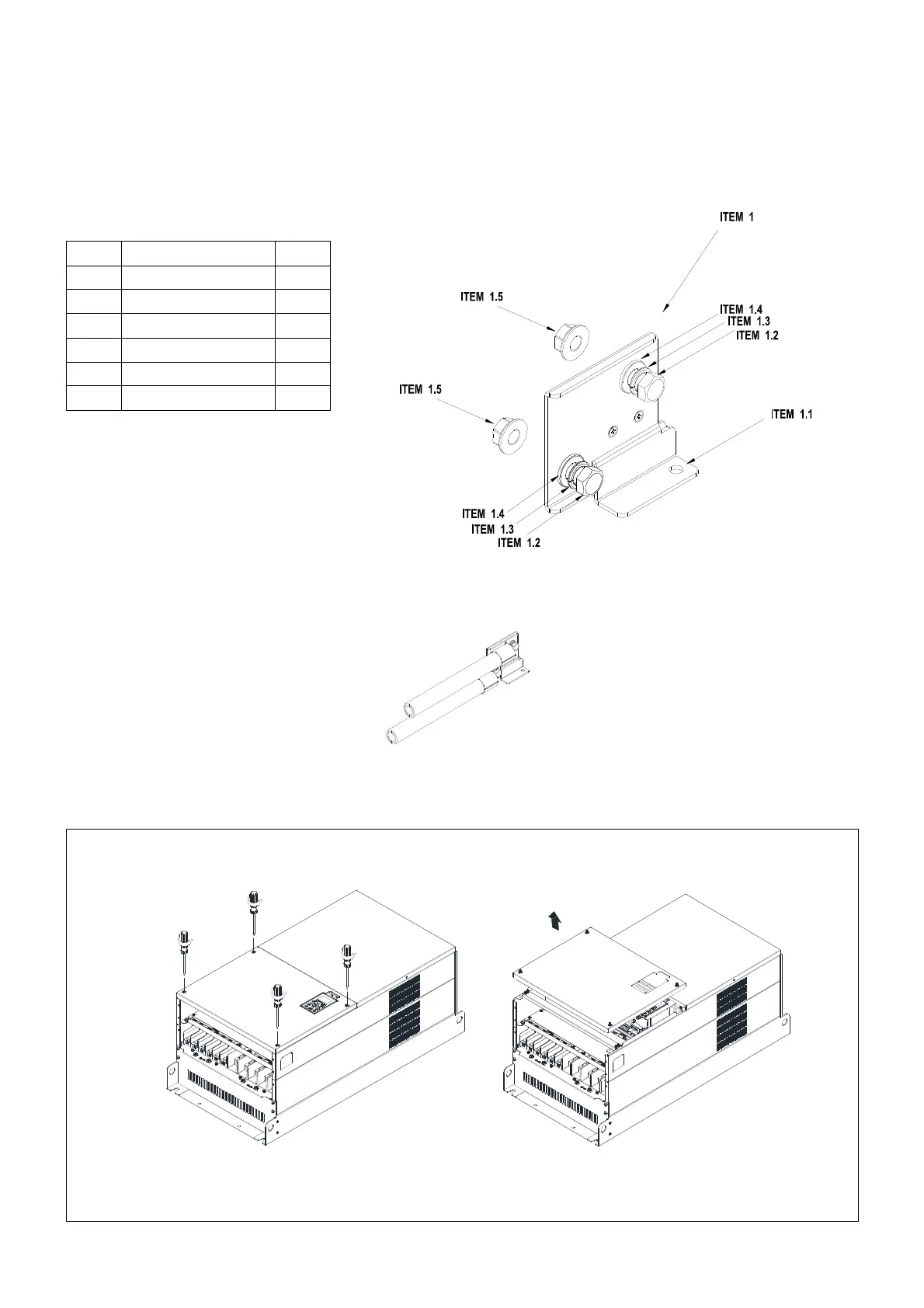

7-11 Power Terminal Kit
MKC-PTCG
Applicable models: VFD1850C43A-00; VFD2200C43A-00
(MKC-PTCG is optional for the models above. 12 pulse becomes 6 pulse when the installation is done.)
Accessories
Item Description Q’ty
1 Copper Assy. 3
1.1 Copper 3
1.2 Screw M12*25L 6
1.3 Spring 6
1.4 Washer 6
1.5 Nuts 6
Table 7-93
Figure 7-228
Diagram of power terminal connection
M12 torque: 408 kg-cm / (354.1 lb-in) / (39.98 Nm)
Figure 7-229
“MKC-PTCG” Installation
1. Loosen the 4 screws on the cover, as shown in the figure below. Screw Torque: 12–15 kg-cm / (10.4–13 lb-in)
/ (1.2–1.5 Nm)
Figure 7-230
