7-11 Keypad Panel Mounting
KPMS-LE01 Keypad Panel Mounting:
In order to avoid the motor damage, please be sure to refer to the screw size and torque values to
tighten the screws.
1. Install the extension cable to motor:
Unit: mm (inch)

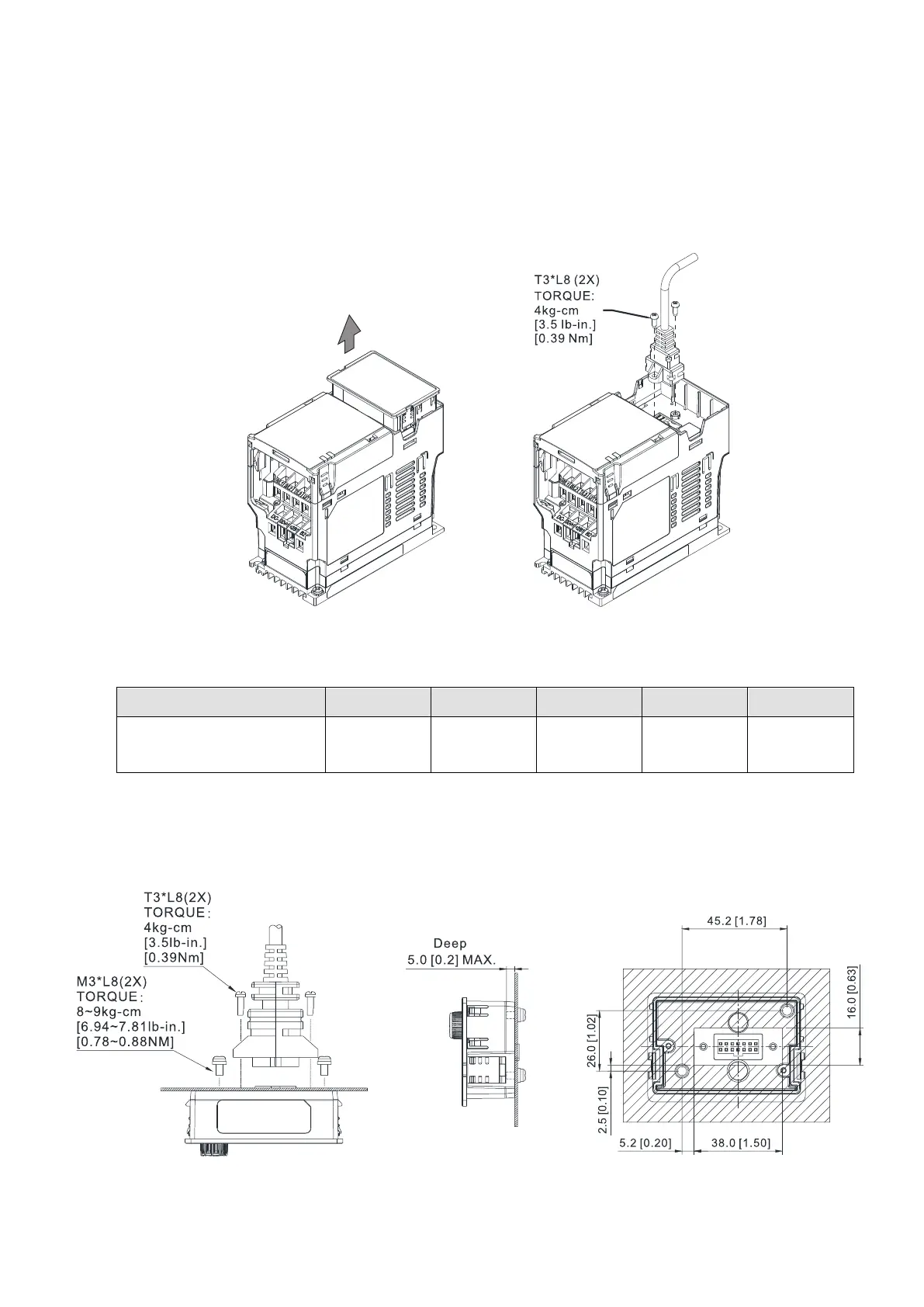

Figure 7-69
The extension cable models and cable length specifications are listed in the table below.
Models
EG0610C
EG1010C
EG2010C
EG3010C
EG5010C
Extension Cable Length
(Unit: mm (inch) )
600
(23.62)
1000
(39.37)
2000
(78.74)
3000
(118.11)
5000
(196.85)
Table 7-54
2. Method 1: Direct mounting on a plate
Unit: mm (inch)
Figure 7-70
