Chapter 7 Optional AccessoriesC2000-HS
7-50
7-10 Power Terminal Kit
『MKC-PTCG』 (Applicable for Frame G models-VFDXXXCXXA-HS)
Applicable model
VFD2200C43A-HS
(The MKC-PTCG is optional for the above model, after the installation, the 12 plus is 6 plus.)
Accessories
Item Description Q’ty
1 Copper Assy. 3
1.1 Copper 3
1.2 Screw M12*25L 6
1.3 Spring 6
1.4 Washer 6
1.5 Nuts 6
Diagram of power terminal connection
M12 Torque: 408 kg-cm / [354.1 lb-in] / [39.98 Nm]

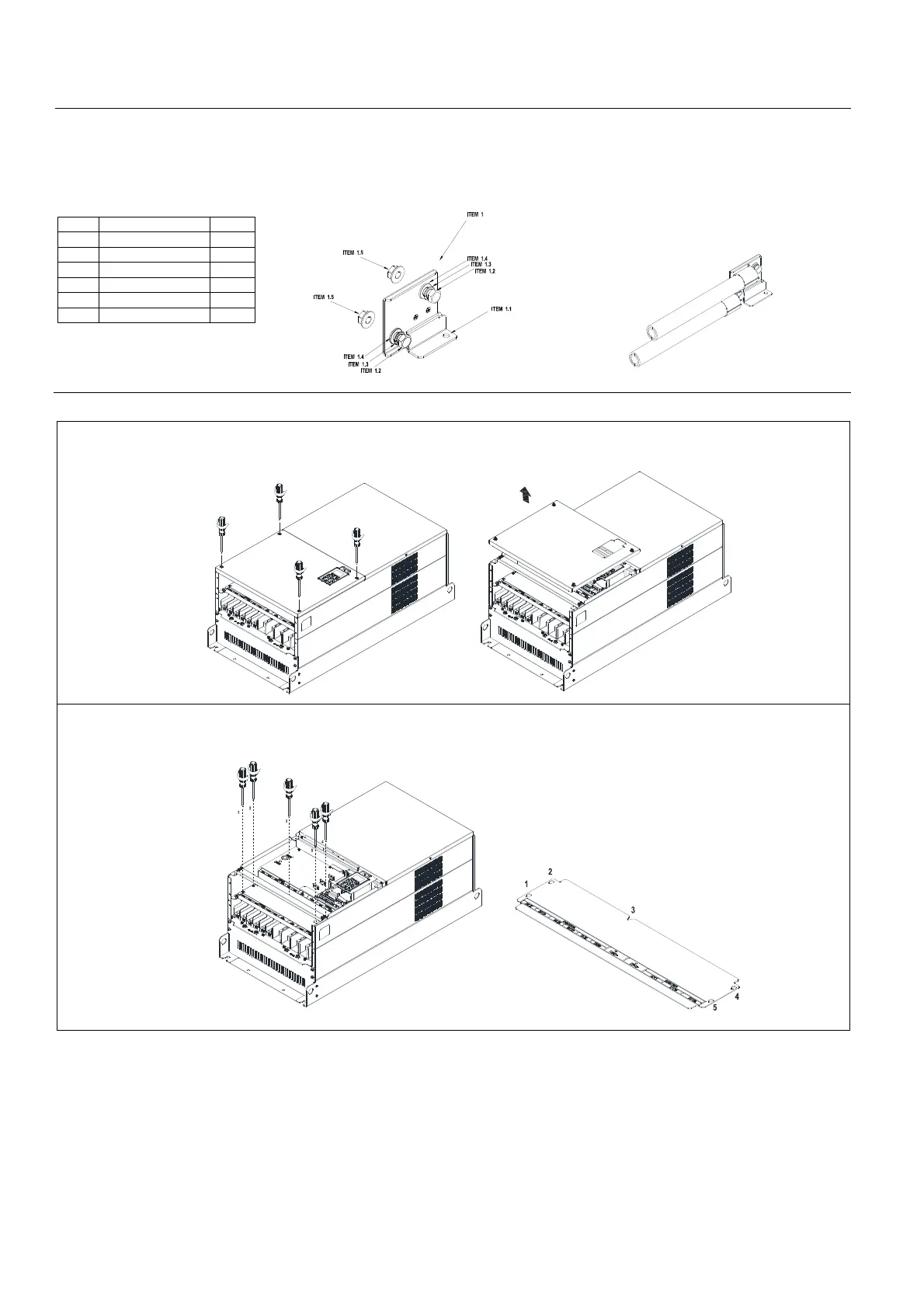

『MKC-PTCG』Installation
1. Loosen the 4 screws on the cover, as shown in the following figure.
Screw Torque: 12–15 kg-cm / [10.4–13 lb-in] / [1.2–1.5 Nm]
2. Remove the 5 screws from the FR4 board, as shown in the following figure. (The FR4 board is not needed
after the installation of the power terminal kit). Screw Torque: 12–15 kg-cm / [10.4–13 lb-in] / [1.2–1.5 Nm]
FR4 Board
To Next Page
