Denon AVR-1613 User Manual

69

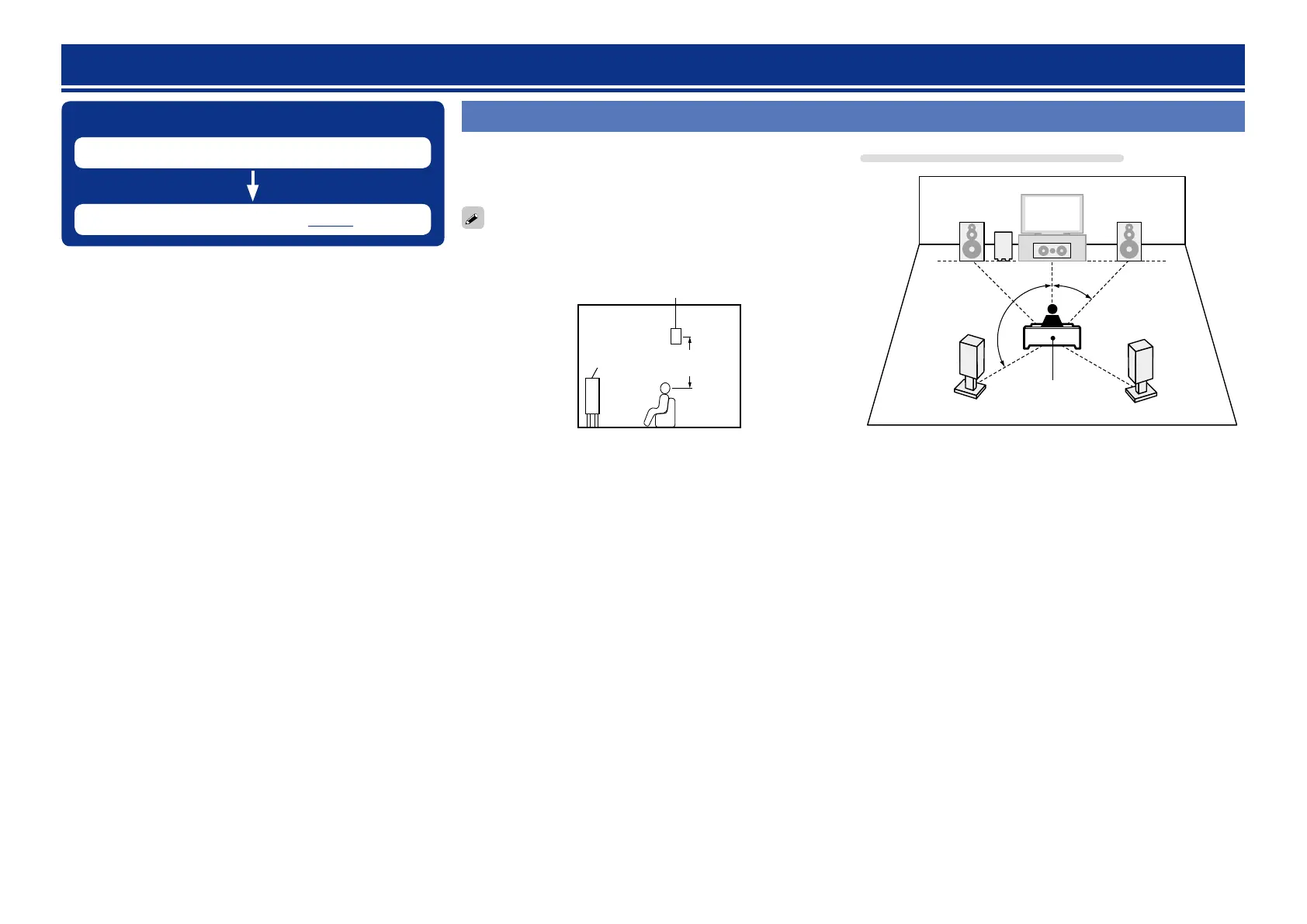

Procedure for speaker settings
Speaker installation
Speaker connection (vpage70)
Speaker installation
•Determine the speaker system depending on the number of speakers
you are using and install each speaker and subwoofer in the room.
Here, we explain how to install the speakers using a typical example.
•The speaker impedance should be from 6 to 16 Ω.
Use the illustration below as a guide for how high each speaker should
be installed. The height does not need to be exactly the same.
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front
speaker
When 5.1ch speakers are installed
FL FR
SW
C
SL
SR
z1
z2
Listening position
z1 22˚ – 30˚ z2 120˚
GSpeaker abbreviationsH
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
Installation/connection of speakers (Advanced)
Basic version
Advanced version
Information
Advanced version
DVDDVD

Denon AVR-1613 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	5
Composite video in	2
Digital audio optical in	1
Ethernet LAN	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS Neo:6, DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	150.8 mm
Width	434.3 mm
Height	328.9 mm
Weight	8300 g
