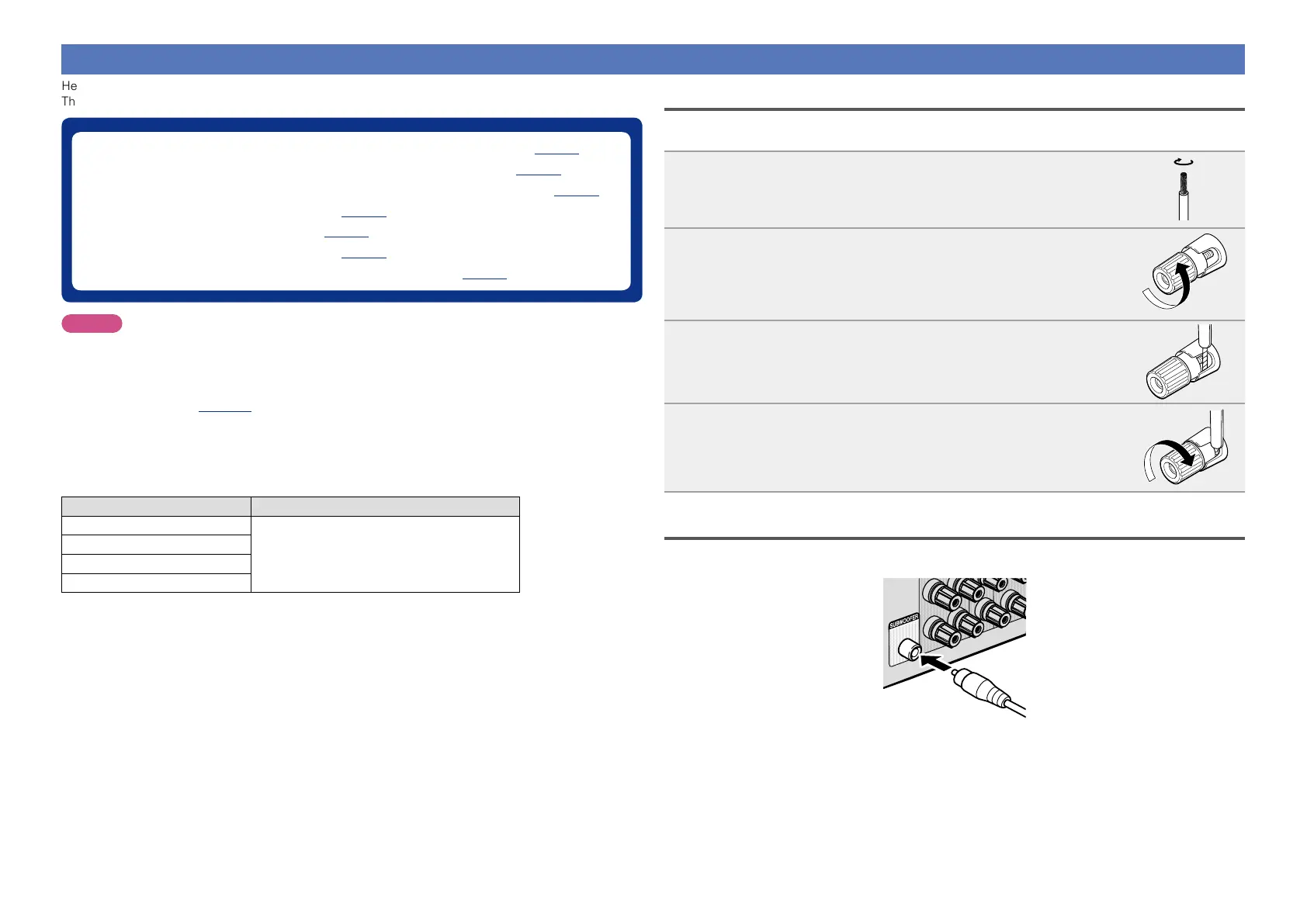

Speaker connection
Here, we connect the speakers in the room to this unit.
This section explains how to connect them using a typical example.
n Connecting 7.1-channel speakers using surround back speakers (vpage78)
n Connecting 7.1-channel speakers using front height speakers (vpage79)
n Connecting 6.1-channel speakers using one surround back speaker (vpage80)
n Connecting 5.1-channel speakers (vpage81)
n Connecting front A/B speakers (vpage82)
n Connecting 2.1-channel speakers (vpage83)
n Connecting front speakers with a bi-amp connection (vpage84)
NOTE
•Disconnect this unit’s power plug from the power outlet before connecting the speakers. Also,
turn off the subwoofer.
•Connect so that the speaker cable core wires do not protrude from the speaker terminal. The
protection circuit may be activated if the core wires touch the rear panel or if the + and – sides
touch each other (vpage142 “Protection Circuit”).
•Never touch the speaker terminals while the power supply is connected. Doing so could result
in electric shock. When the “Setup Assistant” is running, follow the instructions in the “Setup
Assistant” screen for making connections. (Power is not supplied to the speaker terminals while
the “Setup Assistant” is running.)
•Use speakers with the speaker impedances shown below.
Speaker terminals Speaker impedance
FRONT
6 – 16 Ω
CENTER
SURROUND
SURROUND BACK
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being
connected to this unit, and be sure to interconnect the channels and polarities correctly.
1
Peel off about 10 mm of sheathing from the tip of the speaker
cable, then either twist the core wire tightly or terminate it.
2
Turn the speaker terminal counterclockwise to loosen it.
3
Insert the speaker cable’s core wire to the hilt into the speaker
terminal.
4
Turn the speaker terminal clockwise to tighten it.
Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer.
Basic version
Advanced version
Informations
Advanced version
DVD

Denon AVR-2113 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	6
Audio (L/R) in	5
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Wi-Fi	No
Ethernet LAN	Yes
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	56
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-HD
Volume control	Rotary
Multi-Zone quantity	2
Surround modes quantity	7
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	167 mm
Weight	9500 g
