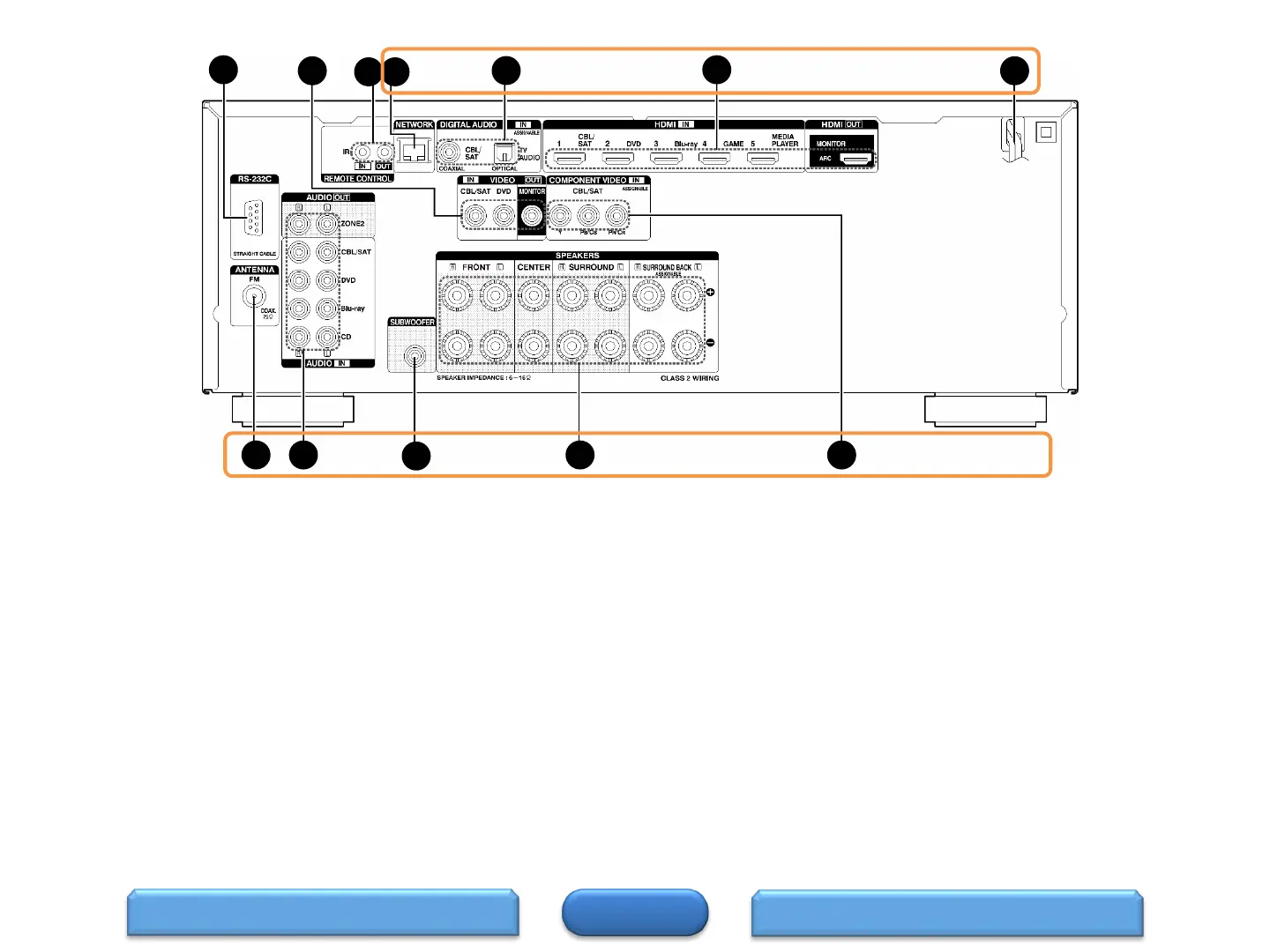

Rear Panel (1 of 2)
5
FM/AM antenna terminals (ANTENNA)
Used to connect FM and AM antennas.
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
NOTE
• Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
Subwoofer connectors (SUBWOOFER)
Used to connect a subwoofer with a built-in amplifier.
Speaker terminals (SPEAKERS)
Used to connect speakers.
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
Power cord (AC IN)
HDMI connectors
Used to connect devices equipped with HDMI connectors.
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
Network Connector (NETWORK)
Used to connect this unit to the network.
1
2
3
4 5
6
7
8
9
10
11
12
REAR PANEL 2
To Next Page
