129

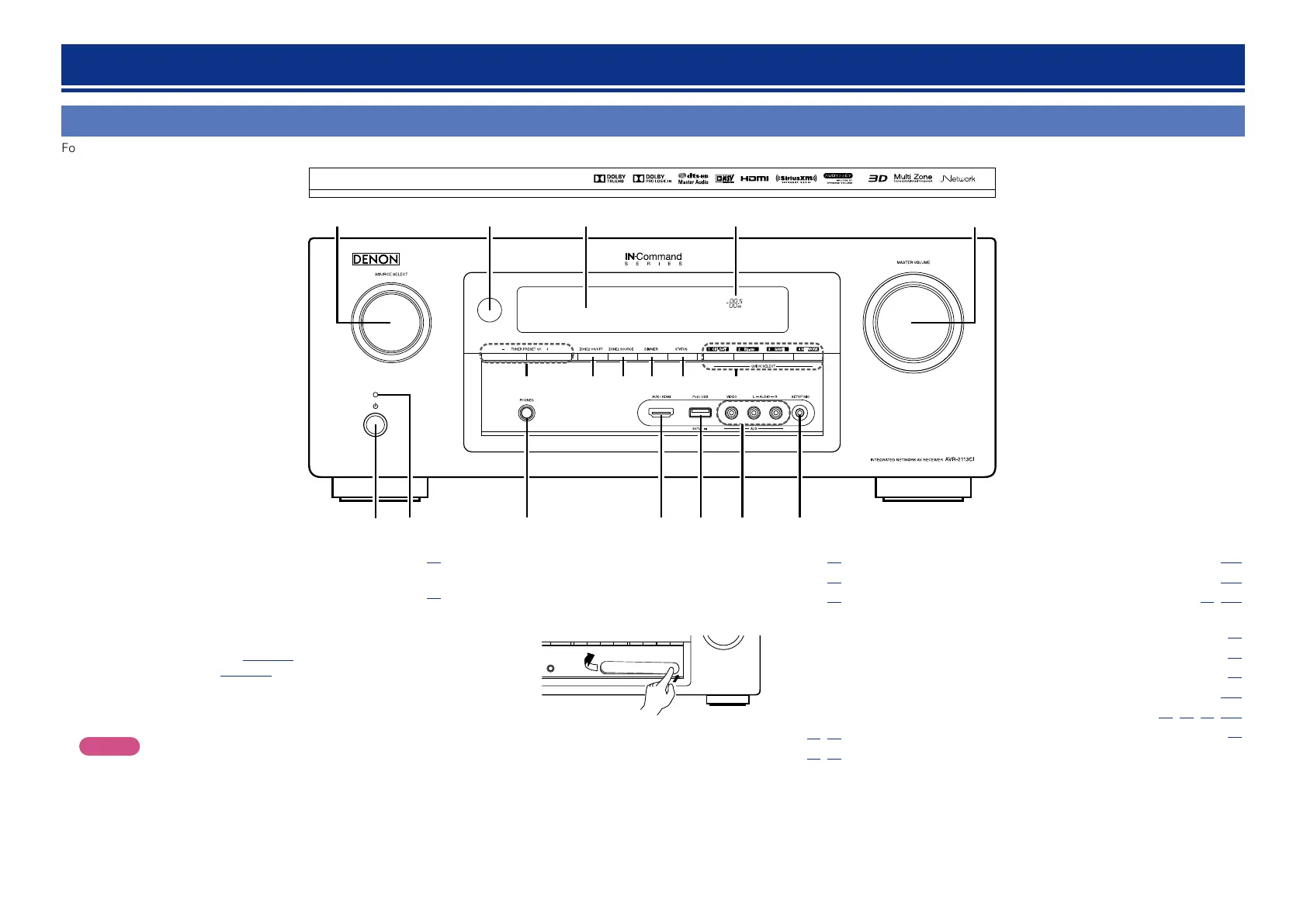

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q3 Q8Q4 Q5 Q6 Q7
ur t yeq w
Q0
oQ1Q2 i
q Power operation button (X) ··················································· (31)
Turns power to this unit on and off (standby).
w Power indicator ······································································· (31)
GPower indicator statusH
•Power on : Green
•Normal standby : Off
•When “HDMI Control” (vpage106) is set to “On” : Red
•When “IP Control” (vpage119) is set to “Always On” : Red
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
Q0 Display ···················································································· (130)
Q1 Remote control sensor ························································· (133)
Q2 SOURCE SELECT knob ··················································· (31, 148)
Q3 Tuner preset channel buttons
(TUNER PRESET CH +, –) ························································ (43)
Q4 ZONE2 ON/OFF button ··························································· (92)
Q5 ZONE2 SOURCE button ·························································· (92)
Q6 DIMMER button ····································································· (124)
Q7 STATUS button ··················································· (34, 48, 52, 124)
Q8 QUICK SELECT buttons ·························································· (89)
r AUX-HDMI connector ····························································· (10)
t iPod/USB port ········································································· (18)
y AUX INPUT connectors ·························································· (17)
Remove the cap covering the connectors when you want to use
them.
u SETUP MIC jack ································································· (26, 85)
i MASTER VOLUME knob ··················································· (32, 92)
o Master volume indicator
Part names and functions
