Speaker Connections

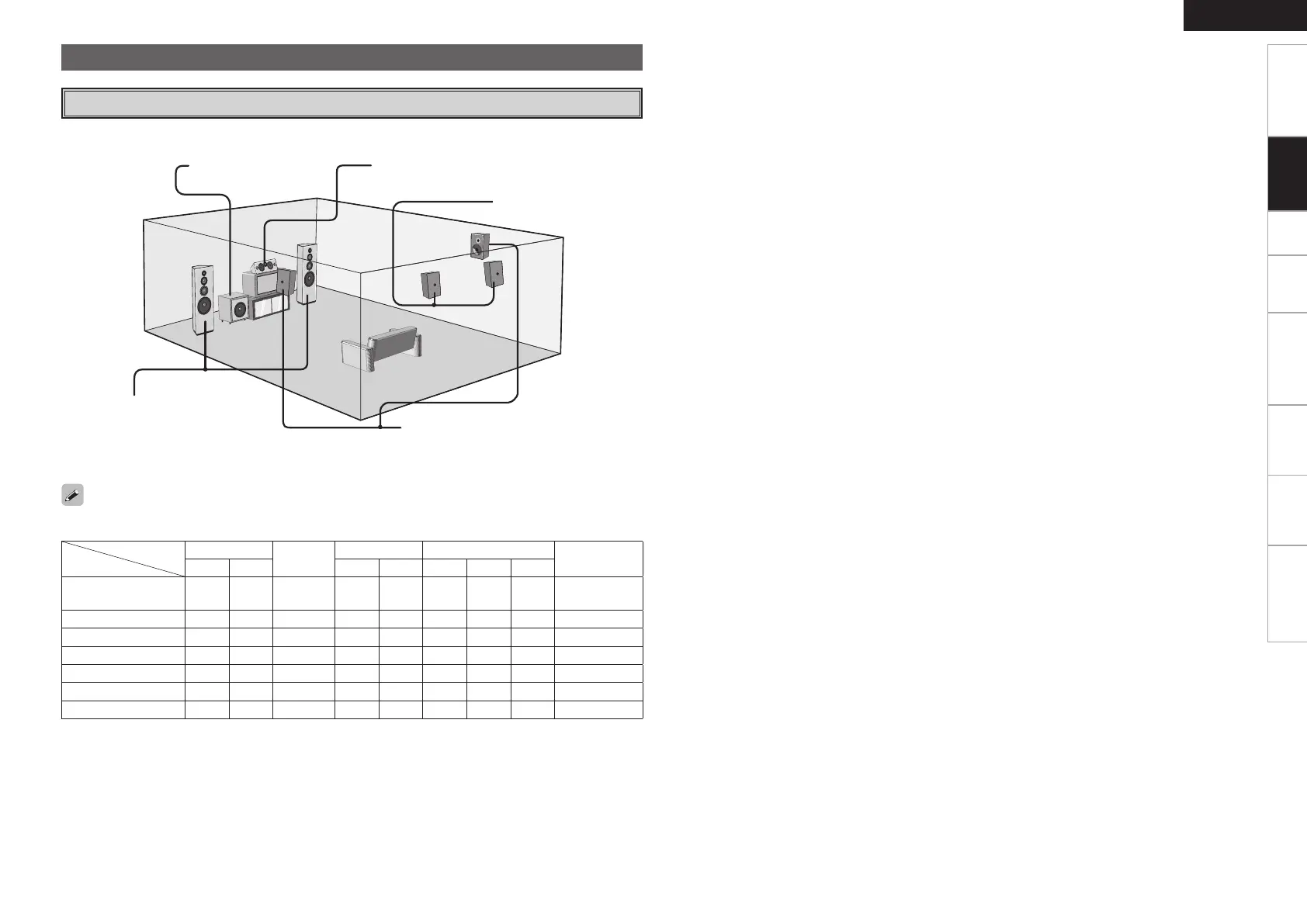

The illustration below shows a basic example of installation of the amplifier combined with 8 speakers and
a monitor.
Speaker Installation
Subwoofer Center speaker
Surround speakers
Front speakers
Place the front speakers to the
sides of the monitor or screen and
as flush with the screen surface as
possible.
The table below shows a typical speaker configuration for the AVR-588.
Surround back speakers
FRONT
CENTER
SURROUND SURROUND BACK
SUBWOOFER
L R L R L R 1 only
7.1-channels
(FRONT A+B)
S S S S S S S
–
S
7.1-channels
S S S S S S S
–
S
6.1-channels
S S S S S
– –
S S
5.1-channels
S S S S S
– – –
S
3.1-channels
S S S
– – – – –
S
2.1-channels
S S
– – – – – –
S
2-channels
S S
– – – – – – –
