Connecting Other Sources Connecting Other Sources
ENGLISH
Connecting the power supply cord
AC 120 V, 60 Hz
AC outlets (Wall)
NOTE:
• Only use the AC OUTLETS for connecting audio equipment. Never use it for hair driers, TVs
or other electrical appliances.
AC OUTLETS
• SWITCHED (total capacity – 120 W (1 A.))
The power to these outlets is turned on and
off in conjunction with the POWER switch on
the main unit, and when the power is
switched between on and standby from the
remote control unit.
No power is supplied from these outlets
when this unit’s power is at standby. Never
connect equipment whose total power
consumption exceeds 120 W (1 A.).
• Use these terminals if you wish to connect external power amplifier(s) to increase the power of
the front, center, surround and surround back sound channels, or for connection to powered
loudspeakers.
• When using only one surround back speaker, connect it to the left channel.

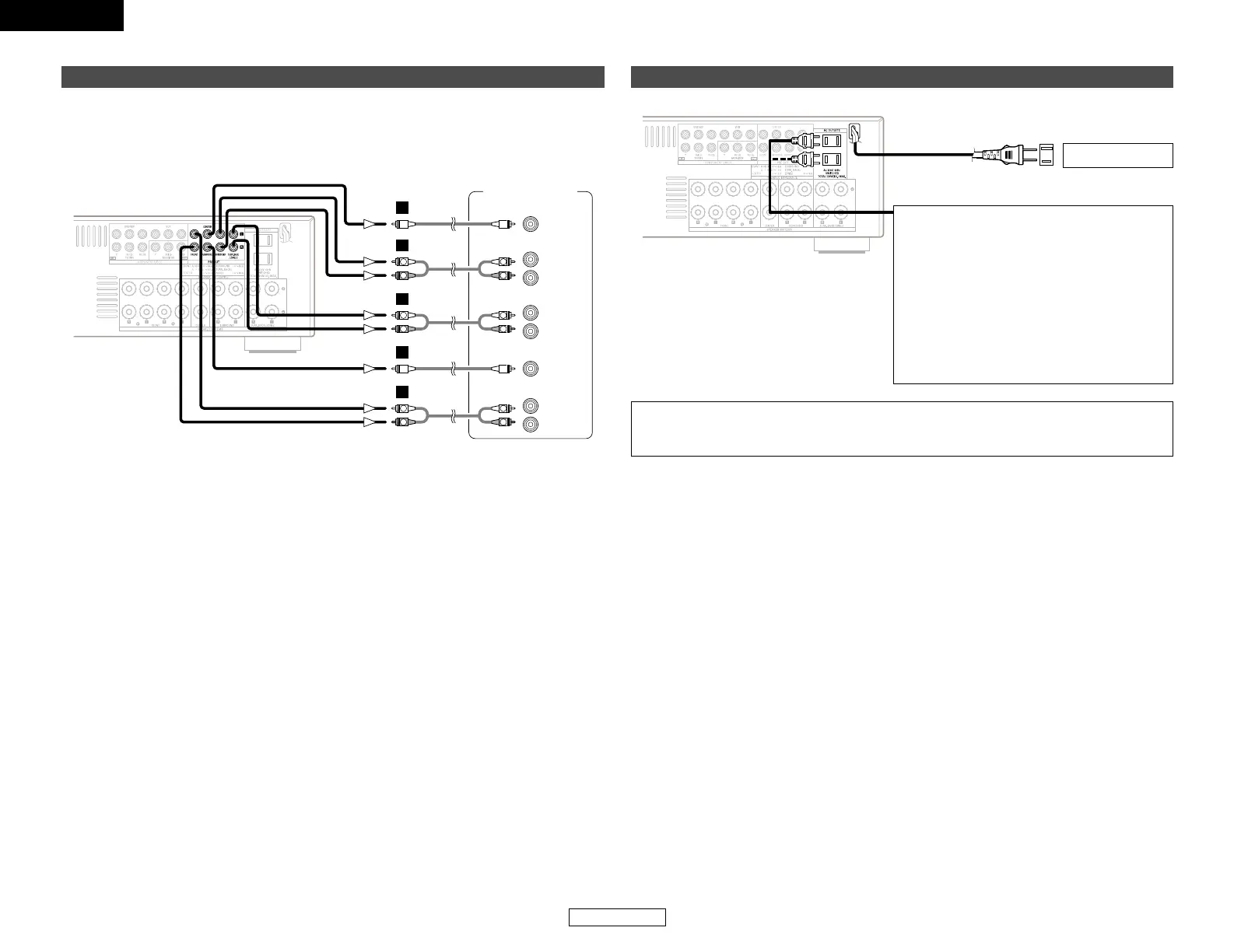

Connecting the pre-out terminals
To Next Page
