Denon AVR-890 Service Manual

9
AVR-2310CI/2310/890, AVC-2310

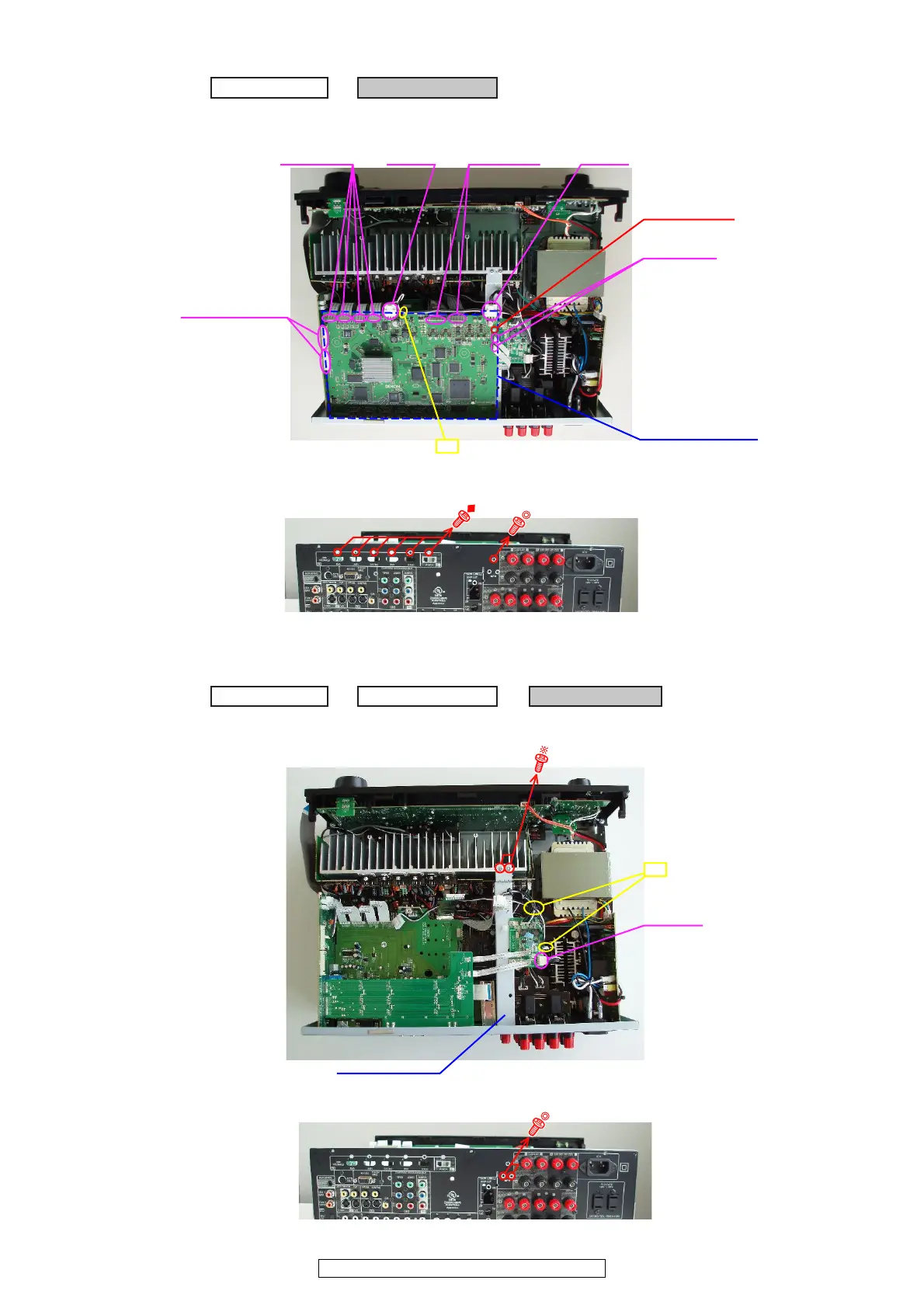

2. PCB HDMI ASSY
(1) Cut the wire clamp band, then disconnect the connector wires and FFC Cables.
Remove the SUPPORTER, then disconnect the board to board.
(2) Remove the screws.
3. BRACKET HDMI
(1) Cut the wire clamper, then disconnect the connector wire. Remove the screws.
(2) Remove the screws.
Proceeding : CABINET TOP HDMI PWB ASSY
→
PCB HDMI ASSY
Board to board
FFC Cable FFC Cable CX047
FFC Cable
SUPPORTER
CX046
cut
Direction of photograph: A
Proceeding : CABINET TOP HDMI PWB ASSY
→
BRACKET HDMI
→
CP2270
BRACKT HDMI
cut
Direction of photograph: A
