Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.

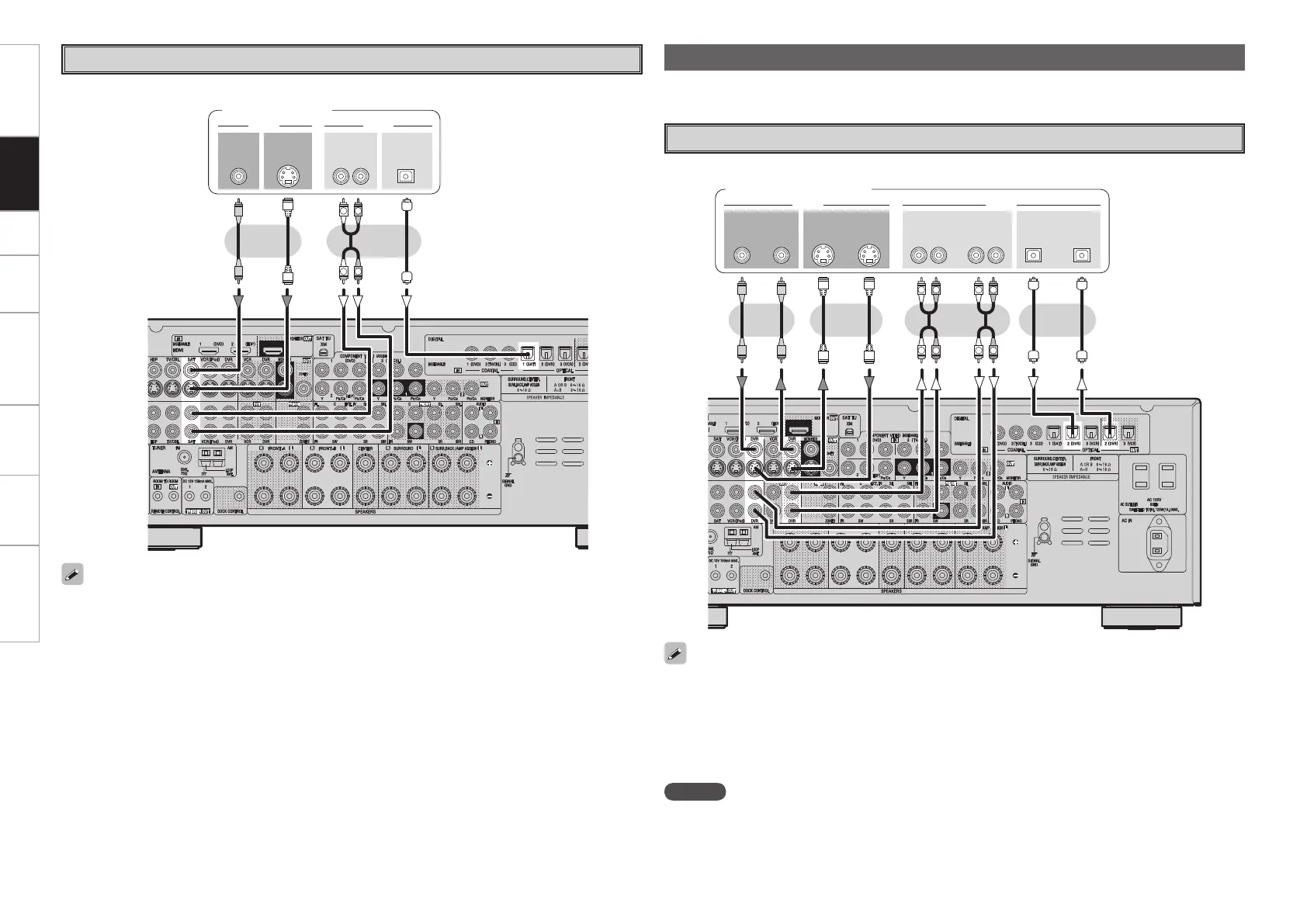

Connecting the Recording Components
Digital Video Recorder
Connect the cables to be used.
R
L
R
L
R
L
R
L
47*%&0
*/
3- 3-
*/*/065
"6%*07*%&0
*/065
015*$"-
065
"6%*07*%&0
065
Digital video recorder
NOTE
Do not connect the output of the component connected to the AVR-988’s OPTICAL2 output connector to
any input connector other than OPTICAL2.
• Make analog connections if you wish to record analog audio signals.
• When recording via the AVR-988, the playback device’s cable must be of the same type as the cable used
to connect the AVR-988’s DVR OUT connector.
Example: TV IN → S-Video cable : DVR OUT → S-Video cable
TV IN → Video cable : DVR OUT → Video cable
• When using a component video cable for the video connection, make the settings at menu “Input Setup”
– “Assign” – “Component In” (vpage 35).
or or

Getting Started Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting
Satellite Receiver
Connect the cables to be used.
R
L
R
L
47*%&0
065
"6%*07*%&0
7*%&0
065 065
015*$"-"6%*0
3-
065
DBS / BS tuner
• When using a coaxial digital cable for the digital audio connection, make the settings at menu “Input
Setup” – “Assign” – “Digital In” (vpage 35).
• When using a component video cable for the video connection, make the settings at menu “Input Setup”
– “Assign” – “Component In” (vpage 35).
