48
ENGLISH
Connect
• For the method of connecting 5.1-channel speakers, see page 4.
• For the method of connecting the TV, see page 5.

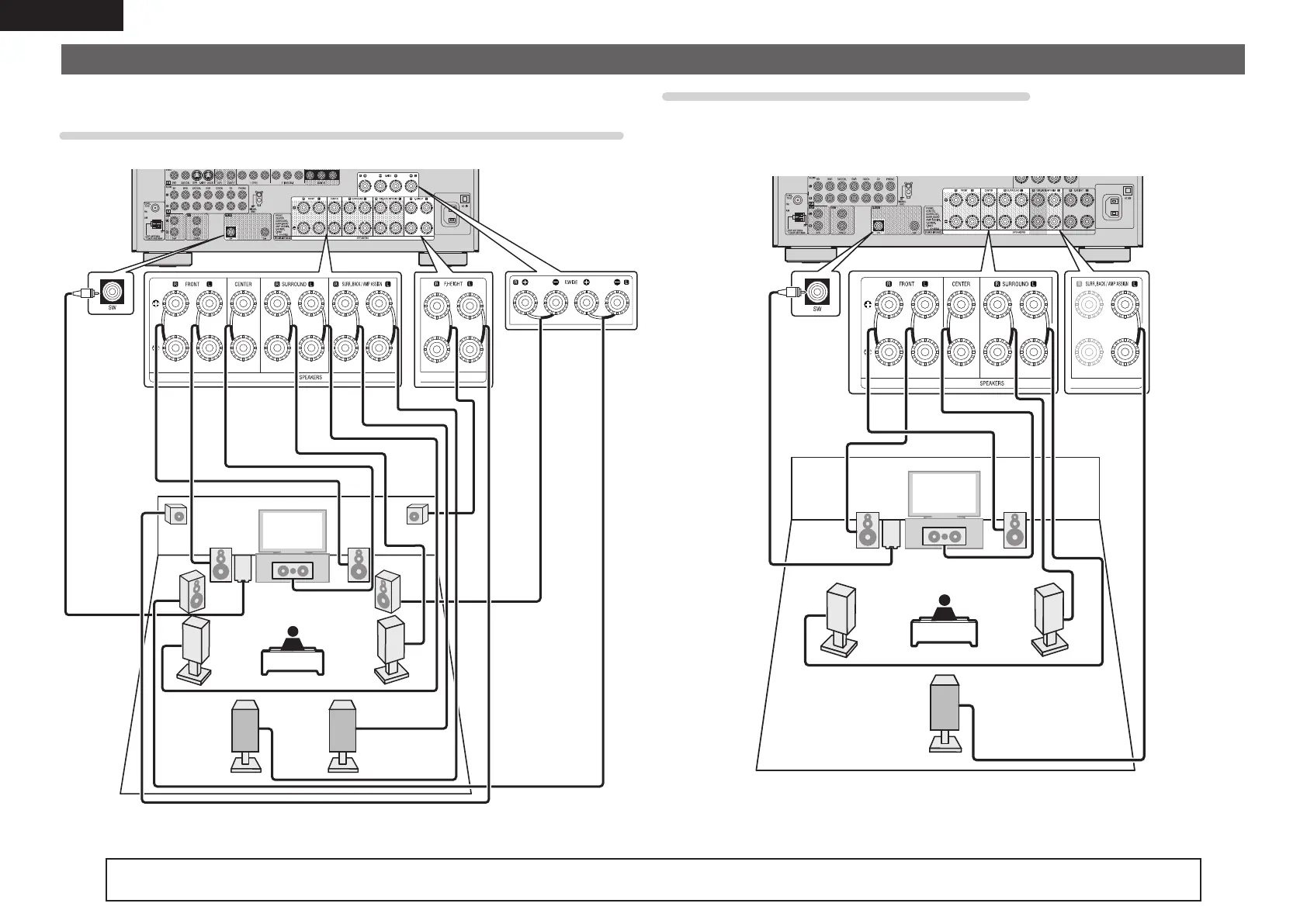

7.1-channel (Surround back / Front height / Front wide speaker) connection
For 7.1-channel (Front wide speaker) playback, set “Set up “Amp Assign”” (vpage51) to “Normal”.
FL FR
C
SBL SBR
SL
SR
SW
FWRFWL
FHRFHL
For speaker impedance and speaker cable connections, see page 4.
6.1-channel (Surround back speaker) connection
If using only one surround back speaker (with a 6.1-channel connection), connect to the “L” side of the
SURR. BACK/AMP ASSIGN terminal.
For speaker settings in this case, see “When 6.1ch (Surround back speaker) installed” (vpage47).
For 6.1-channel (Surround back speaker) playback, set “Set up “Amp Assign”” (vpage51) to “Normal”.
FL FR
C
SB
SL
SR
SW
