RCD-M37 / RCD-M37DAB / D-E500 / D-M37

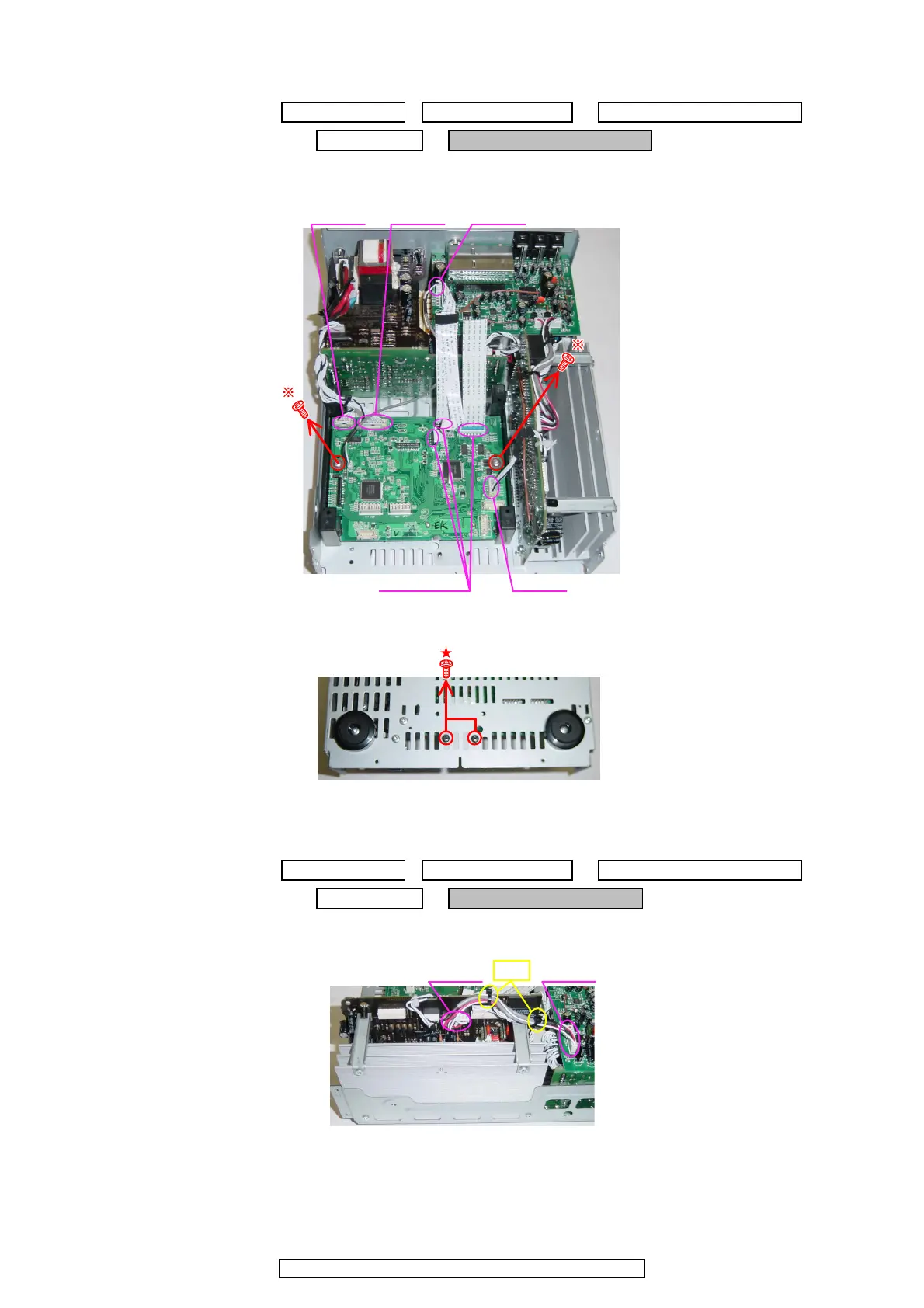

4. MCU P.W.B UNIT ASSY
(1) Disconect the connector wires, FFC cables and remove the screws.（コネクタワイヤー、FFC ケーブルとねじをはず
す。）
(2) Remove the screws.（ねじをはずす。）
5. HEAT SINK SUB ASSY
(1) Disconnect the connecter wires. ( コネクタワイヤーをはずす。）
proceeding (手順): TOP CABINET → LOADER PANEL → FRONT PANEL SUB ASSY
→ CD MECHA → MCB P.W.B UNIT ASSY
CN71
CN12CN96 CN98
FFC CABLE
Picture A
Bottom View
proceeding (手順): TOP CABINET → LOADER PANEL → FRONT PANEL SUB ASSY
→ CD MECHA → HEAT SINK SUB ASSY
CN95 CN72
cut
Picture C
