47
ENGLISH
12
EXPANDING TO A 6.1- OR 7.1-CHANNEL SYSTEM
• The DHT-M330DV is equipped with a decoder function allowing 6.1- or 7.1-channel playback (Dolby Digital EX, DTS-ES, Dolby Pro-Logic IIx, etc.),
as well as PRE OUT connectors for surround back channels (SBL and SBR).
• The DHT-M330DV is also equipped with a pre-out connector for a subwoofer channel, so the system can be improved using a commercially
available superwoofer with built-in amplifier. (Signals are constantly output from the subwoofer pre-out connector.)
•A separately sold stereo amplifier and surround back speaker systems can be used in combination with the DHT-M330DV to create a 6.1- or
7.1-channel surround system.
(1) Connections for a 6.1- or 7.1-channel system
When using a commercially available amplifier and speakers
• Use the front left, front right, center, surround left and surround right channels with DHT-M330DV connections.
• For a 6.1-channel system, use the AVR-M330’s SBL PRE OUT connector to connect the amplifier and one surround back speaker.
• For a 7.1-channel system, use the AVR-M330’s SBL and SBR PRE OUT connectors to connect the amplifier and two surround back speakers.

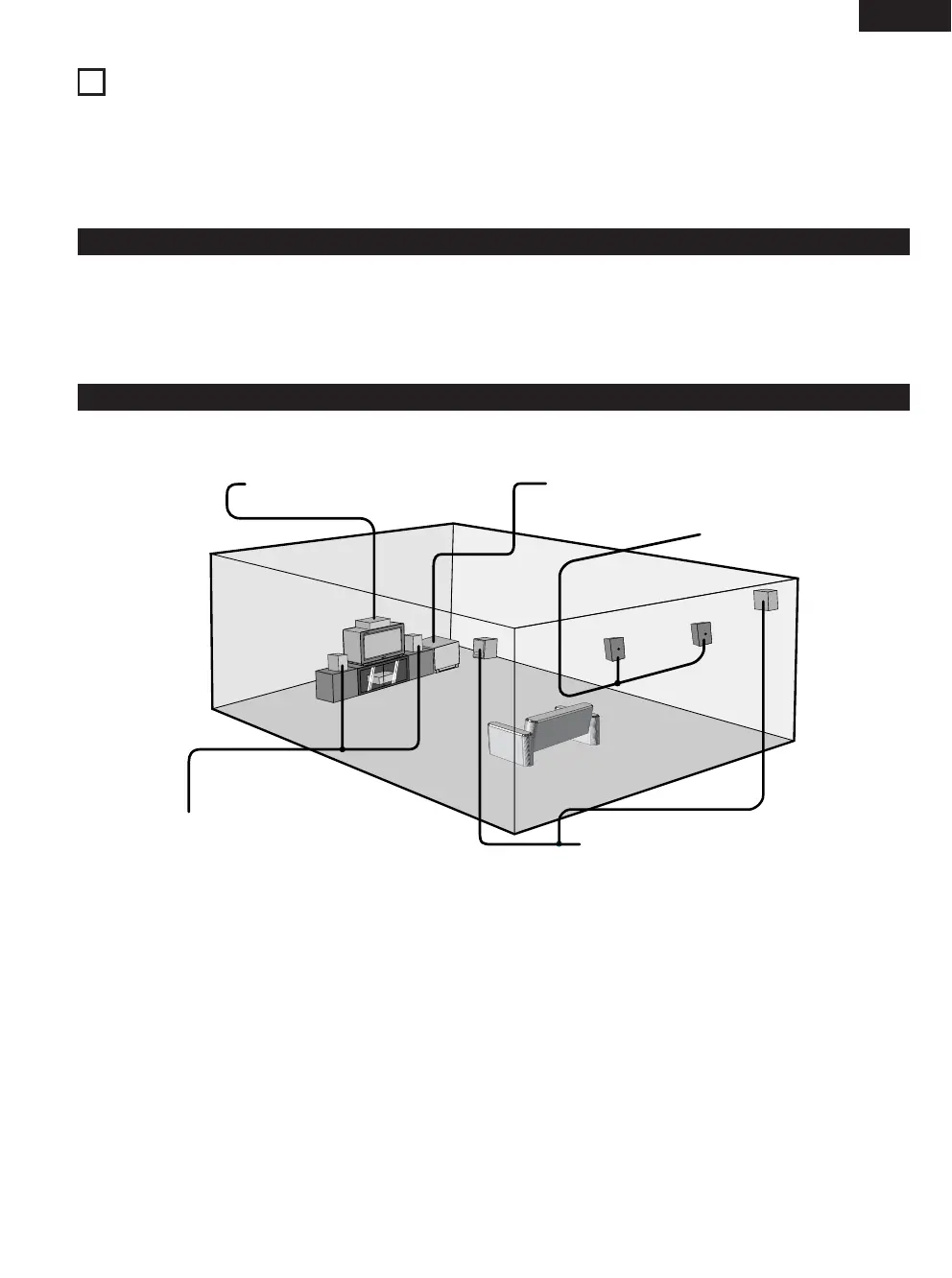

(2) 6.1- or 7.1-channel speakers system layout
Basic system layout
• This is an example of a basic system layout using eight speaker systems and a TV.
Subwoofer
Center speaker system
Surround speaker systems
Front speaker systems
Set these at the sides of the TV or screen with
their front surfaces as flush with the front of
the screen as possible.
Surround back speaker systems
To Next Page
