Denon DSW-65 User Manual

5
SYS-65HT/SYS-55HT/SC-C65/SC-A65/DSW-65DSW-65 Section

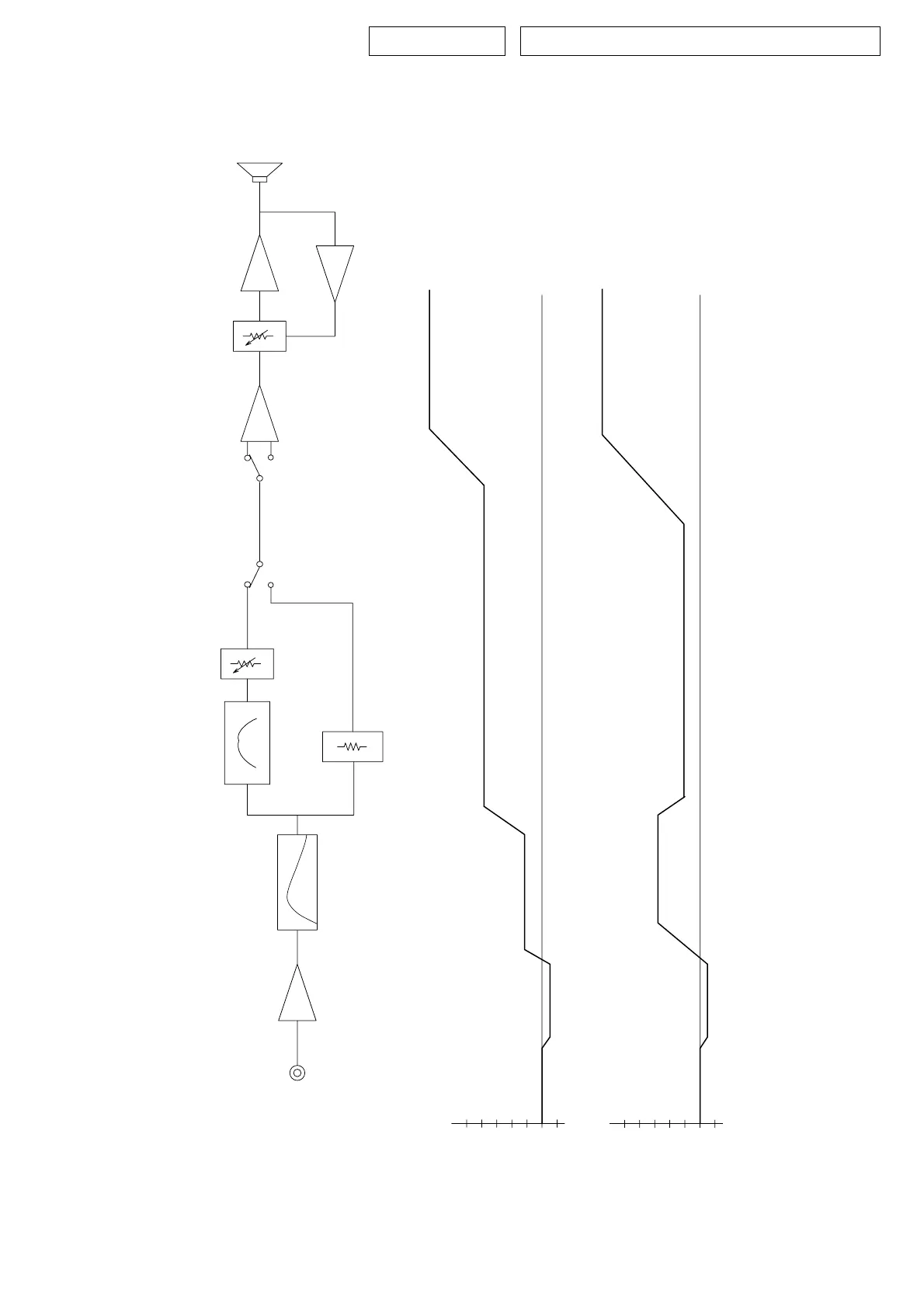

BLOCK / LEVEL DIAGRAM
VOL
DIRECT MODE
ATT
CROSSOVER
CONTROL
HPF
DIRECT MODE SW
SW202
LINE INPUT
ALC
POWER AMPREVERSE PHASE
NORMAL
SPEAKER
U201
U203
U203
20
0
40
-
10
(dB)
20
0
40
-
10
(dB)
+20dB
+1.84dB
+4.34dB
+4.34dB
+27.2dB
LINE INPUT
LINE INPUT DIRECT MODE
+50.5dB 20V/4ohrm THD 0.7% (ALCON)
20V/4ohrm THD 0.7% (ALCON)
at 55Hz
at 55Hz
-1dB -1dB
830mV 75mV

Denon DSW-65 Specifications

General

Brand	Denon
Model	DSW-65
Category	Speaker System
Language	English
