38
DVD-1740/558

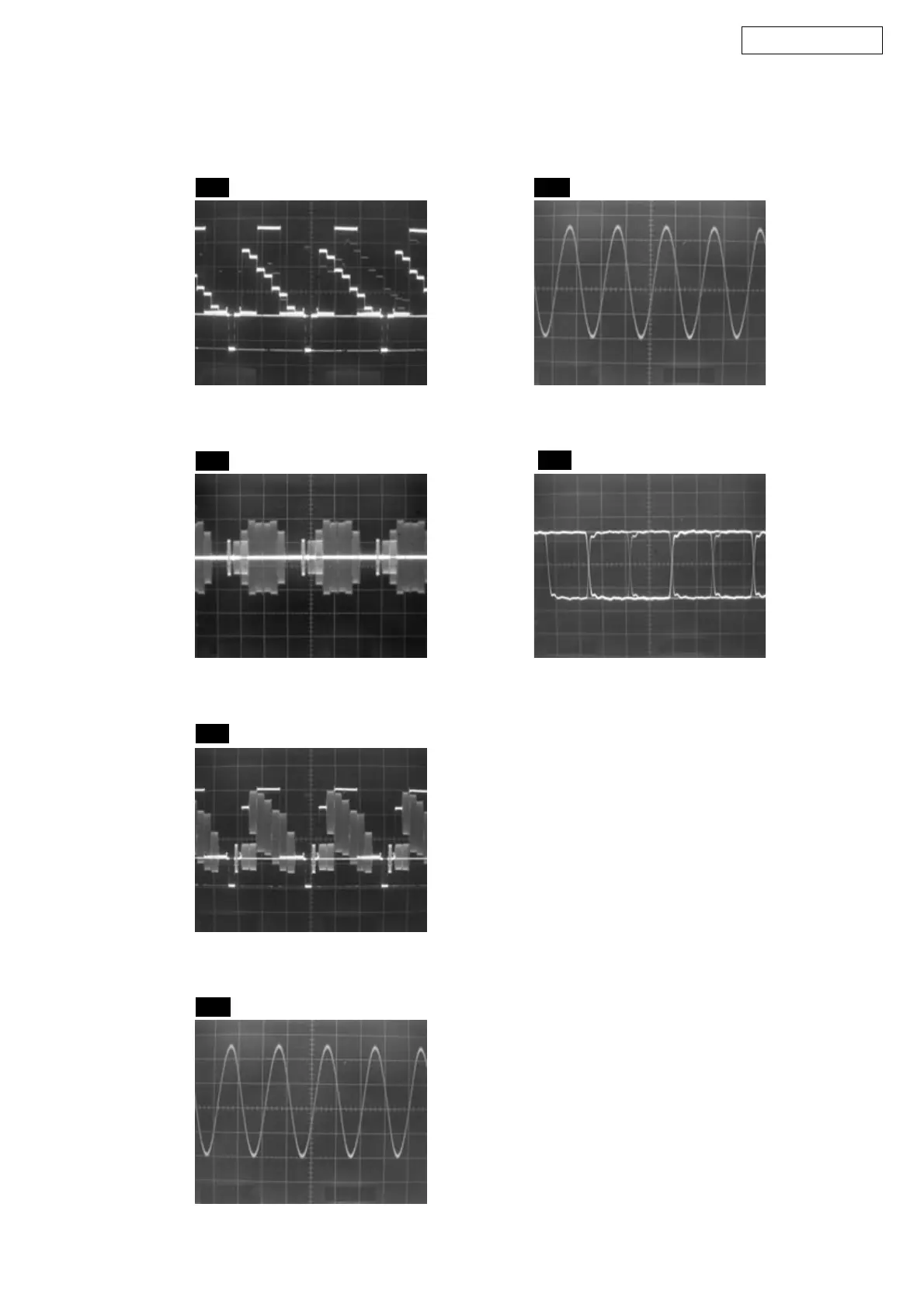

WAVEFORMS
WF6
WF1
WF3
WF4
WF5
WF2
Pin 16 of CN1601
Pin 8 of CN1601
C1402 PLUS LEAD
Pin 12 of CN1601
Pin 14 of CN1601
Pin 10 of CN1601
20
µ
s0.2VVIDEO-Y
VIDEO-C 0.2V 20
µ
s
VIDEO-CVBS 0.5V 20
µ
s
AUDIO(L) 0.5V 0.5ms
AUDIO(R) 0.5V 0.5ms
SPDIF 1V 0.1
µ
s
NOTE:
Measuring Disc
DVD: DVDT-S01
CD : TCD-784
Input Signal
VIDEO: 75% COLOR BAR
AUDIO: 1KHz, 0dB
