Denon DVD-1920 Service Manual

45
DVD-1920/756

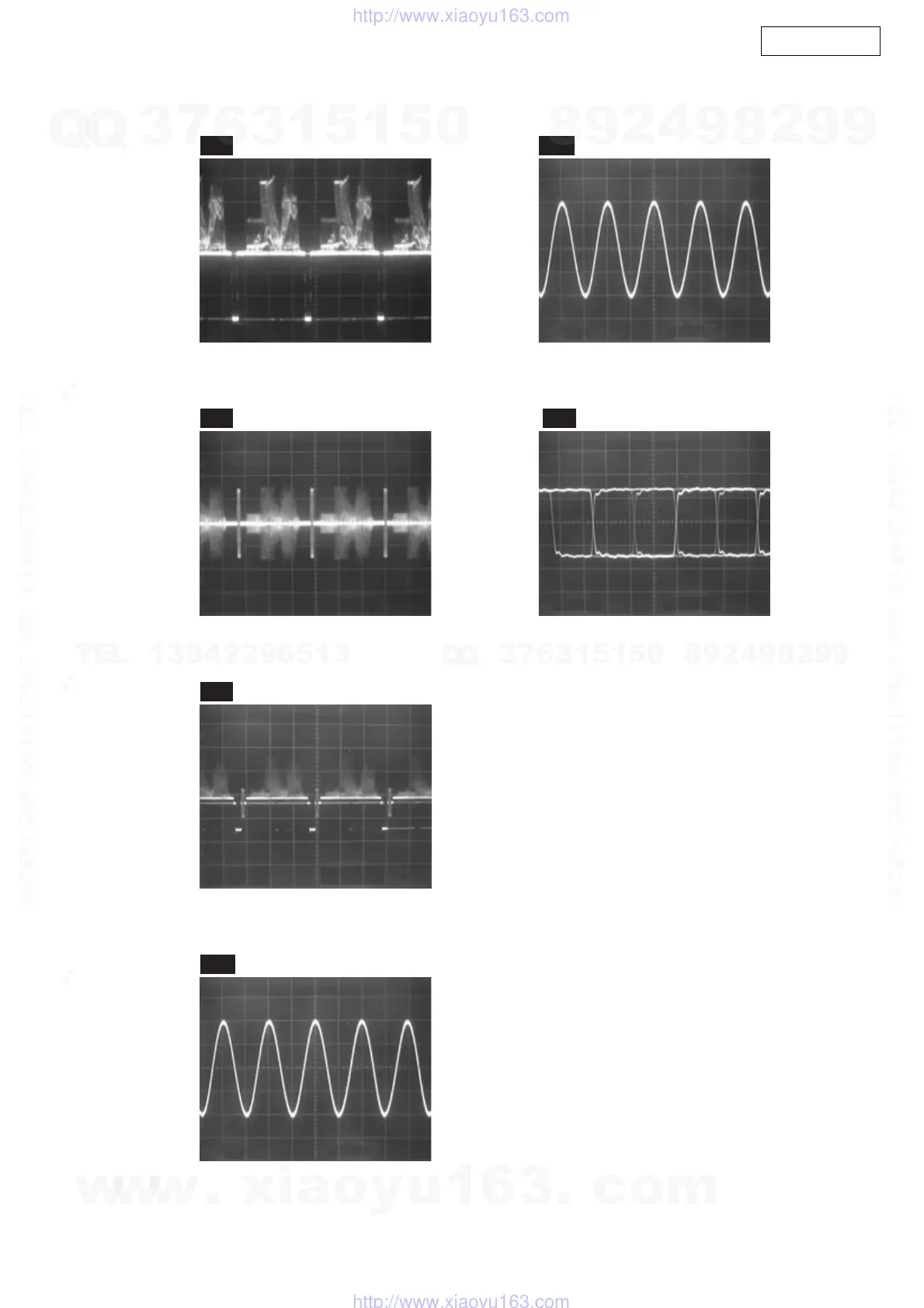

WAVEFORMS
WF6
WF1
WF3
WF4
WF5
WF2
NOTE:
Input
CD: 1kHz PLAY
(WF4~WF6)
DVD: POWER ON (STOP) MODE
(WF1~WF3)
Pin 18 of CN1601
Pin 8 of CN1601
C1402 PLUS LEAD
Pin 13 of CN1601
Pin 15 of CN1601
Pin 10 of CN1601
20 µ s0.1V
0.1V
VIDEO-Y
VIDEO-C
VIDEO-C
0.1V 20 µ s
VIDEO-CVBS
VIDEO-CVBS
0.5V 20 µ s
AUDIO(L) 1V 0.5ms
AUDIO(R) 1V 0.5ms
SPDIF 1V 0.1 µ s
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon DVD-1920 Specifications

Audio Outputs

analog output	1 set (L/R)
multi channel output	1 set (Front L/R, Center, Surround L/R, Subwoofer)
optical digital output	1
coaxial digital output	1
HDMI output	1

CD Audio Specifications

frequency response	4 Hz - 20 kHz
signal-to-noise ratio	115 dB
dynamic range	98 dB
total harmonic distortion	0.004%

Video Outputs

composite video output	1.0 Vp-p (with 75 ohms load)
S-Video output Y	1.0 Vp-p (with 75 ohms load)
S-Video output C	0.286 Vp-p
component video output Y	1.0 Vp-p (with 75 ohms load)
component video output Pb/Cb	0.648 Vp-p (with 75 ohms load)
component video output Pr/Cr	0.648 Vp-p (with 75 ohms load)
HDMI output version	1.1

General Specifications

power supply	AC 120 V, 60 Hz
power consumption	20 W
standby power consumption	1 W
dimensions (W x H x D)	435 x 75 x 310 mm
dimensions (W x H x D) inches	17-3/32 x 2-61/64 x 12-13/32 inches
weight	2.6 kg
weight in pounds	5.72 lbs
