DVD-2910/955
SM8701BM (IC113)

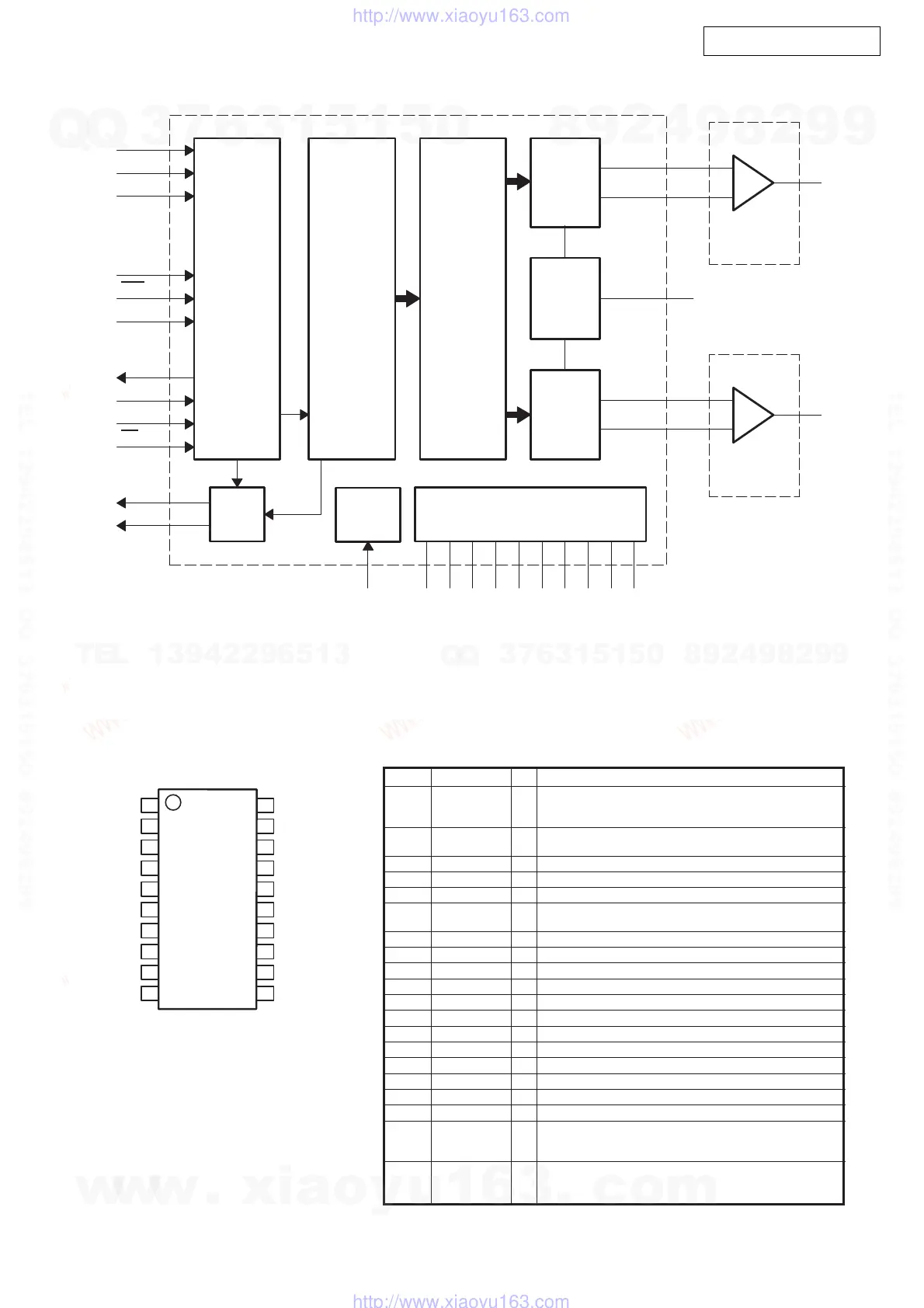

FUNCTIONAL BLOCK DIAGRAM
Power Supply
RST
SCK
Advanced
Segment
DAC
Modulator
V
OUT
L+
V
OUT
L−
Bias
and
Vref
V
CC
F
V
DD
AGNDR
V
CC
R
AGNDL
AGNDF
D/S and Filter
8
Oversampling
Digital
Filter
and
Function
Control
Audio
Data Input
I/F
LRCK
BCK
DATA
MDO
MDI
MC
MS
AGNDC
V
CC
C
DGND
Current
Segment
DAC
and
I/V Buffer
V
COM
Function
Control
I/F
Zero
Detect
ZEROL
ZEROR
System
Clock
Manager
MSEL
MUTE
V
CC
L
V
OUT
R−
V
OUT
R+
D/S and Filter
Current
Segment
DAC
and
I/V Buffer
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
MLEN/R2
P/S
V
DD
GND
XTO
XTI
GNDP
V
DD
P
V
DD
3
MO
MCK/R1
MDT/R0
RSTN
SO3
V
DD
O
GNDO
SO2
SO4
SO1
MON
14
13
12
11
Control signal input.
1 MLEN/R2 Ip
1
In serial mode: latch enable signal
In parallel mode: sampling rate select signal
2 P/S Ip
1
Mode select signal.
LOW: serial mode, HIGH: parallel mode
3V
DD
5V supply (Digital block)
4 GND Ground (Digital block)
5 XTO O Reference signal crystal oscillator element connection
6 XTI I
Reference signal crystal oscillator element connection
or external clock input
7 GNDP Ground (PLL block)
8V
DD
P 5V supply (PLL block)
9V
DD
3 3.3V supply (output buffer)
10 MO O 27 MHz fixed-frequency output
11 MON O 27 MHz fixed-frequency output (inverted)
12 SO1 O 33.8688 MHz fixed-frequency output
13 SO4 O 768fs output
14 SO2 O 256fs output
15 GNDO Ground (output buffer)
16 V
DD
O 3.3V supply (output buffer)
17 SO3 O 384fs output
18 RSTN Ip
2
LOW-level reset input
Control signal input.
19 MDT/R0 Ip
1
In serial mode: control data input signal
In parallel mode: sampling frequency select signal
Control signal input.
20 MCK/R1 Ip
1
In serial mode: clock signal
In parallel mode: sampling frequency select signal
Pin Name Function
Pin No.
I/O
SM8701BM Terminal Function
Note: 1. Schmitt trigger input with pull-down resistor
