5
DVD-3800
DISASSEMBLY
( Follow the procedure below in reverse order when reassembling )

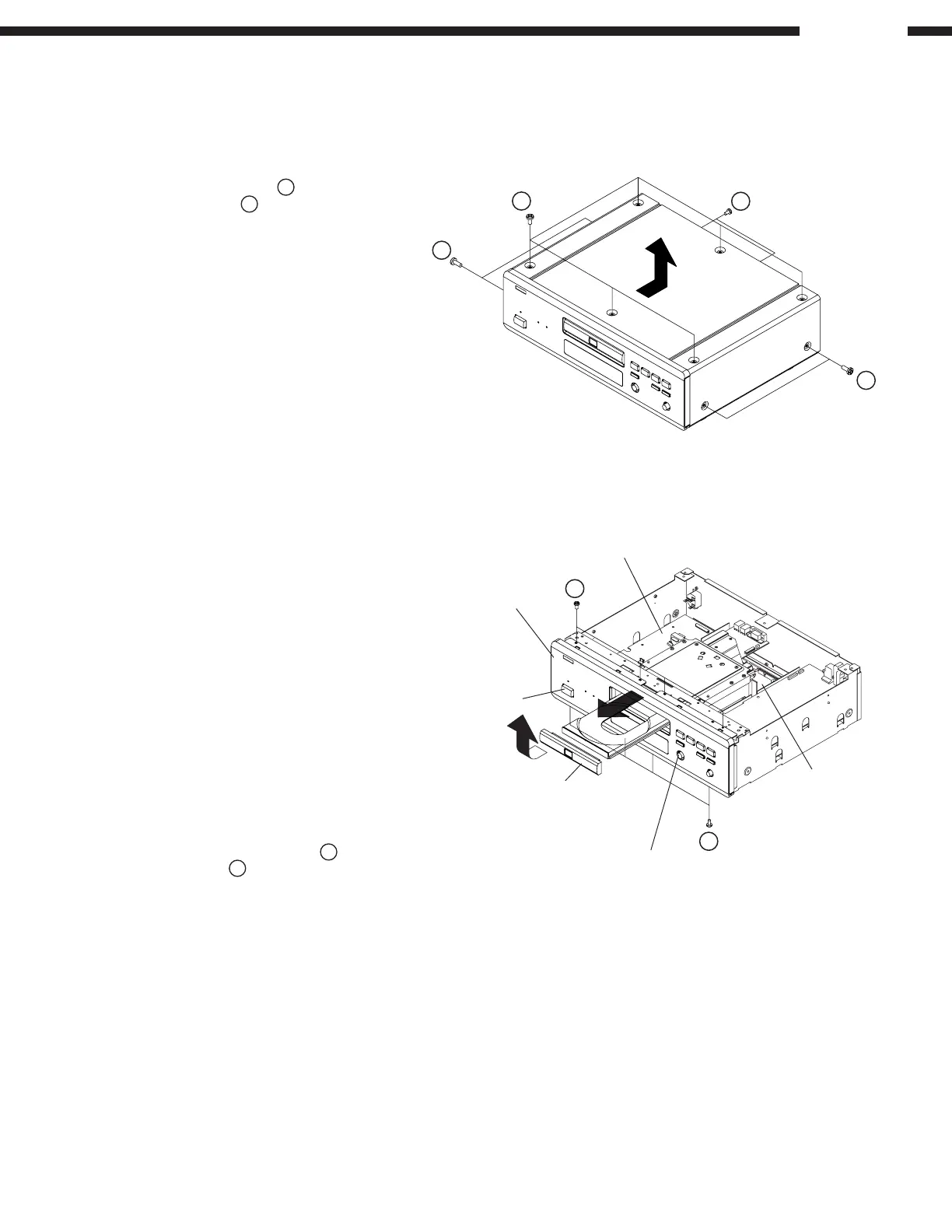

1. Top Cover
(1) Remove 10 screws
1
on the top and both sides,
and 2 screws
2
on the rear.
(2) Widen the Top Cover a little laterally, then detach it
with sliding in the arrow direction.
1
1
2
1
2. Loader Panel, Front Panel
2-1. When the Disc Tray can be ejected electrically
(1) After removing the Top Cover, proceed
as follows.
(2) Plug the power cord to the wall outlet,
switch on the power, and press the
“OPEN/CLOSE” button to open the Disc
Tray.
(3) Detach the Loader Panel by lifting it in
the arrow direction.
(4) Press the “OPEN/CLOSE” button to
close the Disc Tray, then unplug the
power cord.
(5) Disconnect the wire (CX025, CX041)
connecting the Front Panel’s P.W.B. and
the Power PWB in the Chassis.
(6) Remove 4 top screws
3
and 4 bottom
screws
4
, then detach the Front Panel
to the arrow direction.
(7) Disconnect the FFC (CX171) connecting
the Front Panel’s P.W.B. and the Main
P.W.B. in the Chassis.
4
3
Power P.W.B.
Front Panel
Main P.W.B.
“OPEN/CLOSE” button
Loader Panel
Power Switch
To Next Page
