q Power operation button (ON/STANDBY) ······················· (11, 17)
w Power indicator ······································································· (10)
e USB port (USB/iPod) ······························································ (16)
r Display
t Portable jack (PORTABLE IN) ················································· (20)
y Headphones jack (PHONES) ··················································· (12)
u SOURCE button ································································· (11, 20)
i Reverse-skip/Forward-skip buttons
Preset/Tuning buttons
(8/–, +/9) ·································································(12 – 15)
o Master volume control knob (VOLUME) ······························· (11)
Q0 SDB/TONE button ··································································· (12)
Q1 SOURCE DIRECT button ························································· (12)
Q2 BAND/Stop button (BAND/2) ········································· (14, 21)
Q3 Play/Pause button (1/3) ·················································· (13, 21)
Q4 Disc tray open/close button (5) ············································· (11)
Q5 Remote control sensor ····························································· (4)
Q6 Disc tray ····················································································· (3)
NOTE
• Replace the batteries with new ones if the set does not operate
even when the “remote control” is operated close to the unit.
• The supplied batteries are only for verifying operation.
• Be sure to insert the batteries in the proper direction, following the
q and w marks in the battery compartment.
• To prevent damage or leakage of battery fl uid:
• Do not use a new battery with an old one.
• Do not use two different types of batteries.
• Do not attempt to charge dry batteries.
• Do not short-circuit, disassemble, heat or dispose of batteries in
a fi re.
• If the battery fl uid leaks, carefully wipe the fl uid off the inside of the
battery compartment and insert new batteries.
• Remove the batteries from the “remote control” if it will not be used
for a long time.
• Used batteries should be disposed of in accordance with the local
regulations regarding battery disposal.
Operating range of the remote control
Operate the remote control while pointing it at the remote sensor.
30°
30°
Approx. 23 feet/7 m
NOTE
The set may function improperly or the “remote control” may not
operate if the remote control sensor is exposed in direct sunlight or
strong artifi cial light such as a fl uorescent or infrared light.

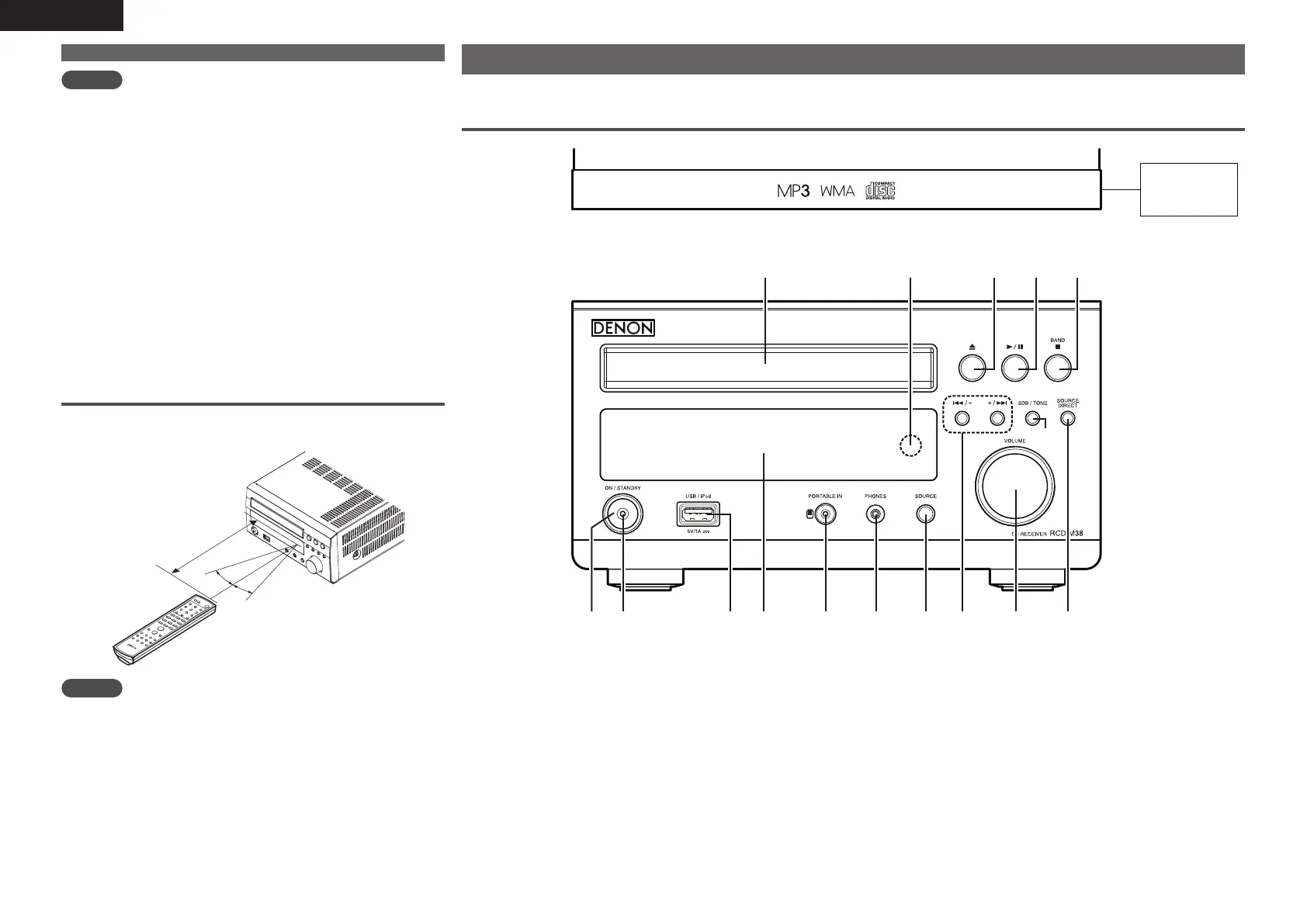

Part names and functions
For buttons not explained here, see the page indicated in parentheses ( ).
Front panel
qw e r t y u oi Q1
Q2Q3Q4
Q0
Q6 Q5
Image when
viewed from the
top of the front
panel
