Engine Components
Engine Components
The following sections will be covered in this chapter:
DD13 Engine Components
DD15 Engine Components
Engine Model and Serial Number
DD13 Engine Components

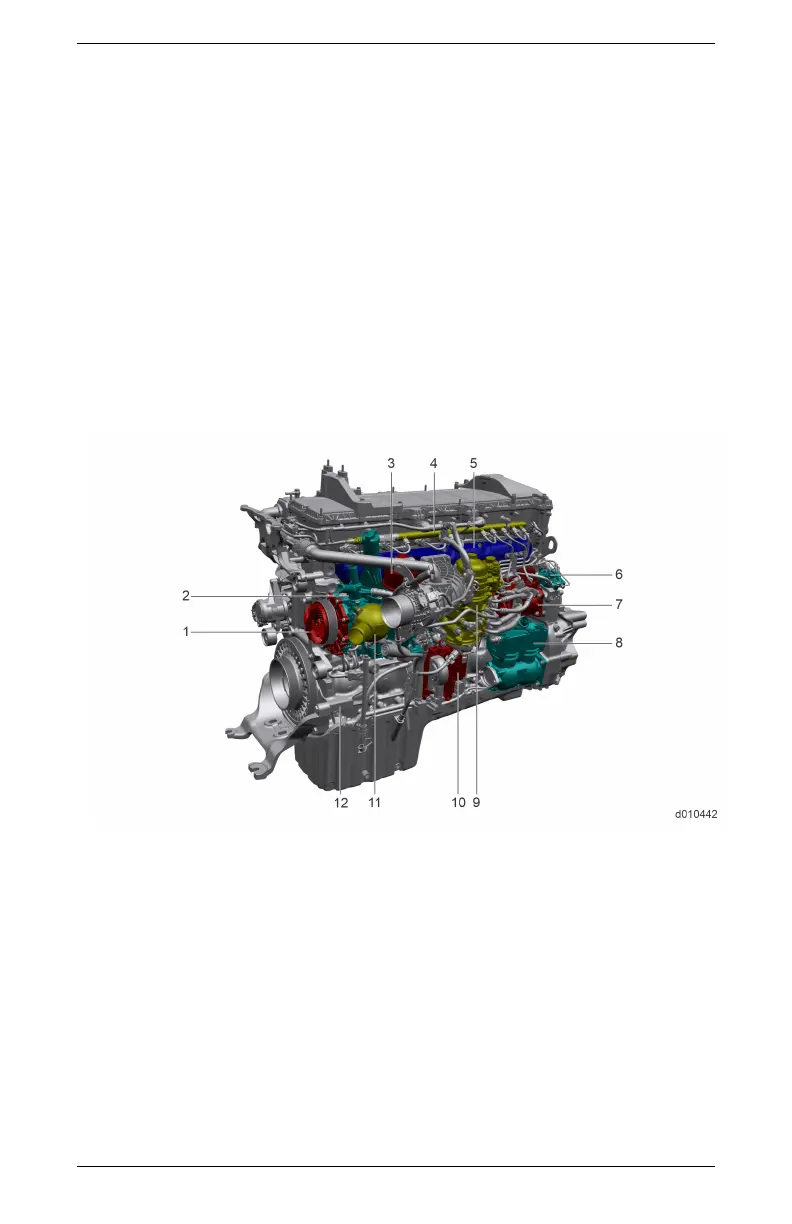

Detroit™ Gen 5 Heavy Duty DD13 major engine components are shown below:
1. Water Pump
2. Oil Coolant Module
3. Oil Filter
4. High Pressure Fuel Rail
5. Air Intake Manifold
6. Hydrocarbon Fuel Doser Block
7. High Pressure Fuel Pump
8. Air Compressor
9. Fuel Filter Module
10. Motor Control Module (MCM)
11. Coolant Thermostat
12. Engine Serial Number Location
Figure 1. DD13 Left Side View
Gen 5 DD Platform Operators Manual
All information subject to change without notice. 17
DDC-SVC-MAN-0217 Copyright © 2020 DETROIT DIESEL CORPORATION
