ENGLISH
19
Chisels and Chisel Holder
WARNING: Burn Hazard. ALWAYS wear gloves
when changing chisels. Accessible metal parts on
the tool and chisels may get extremely hot during
operation. Small bits of broken material may damage
barehands.
WARNING: Do not attempt to tighten or loosen drill
chisels (or any other accessory) by gripping the front
part of the chuck and turning the tool on. Damage to
the chuck and personal injury mayoccur.
The demolition hammer can be fitted with various
chisels depending on the desired application. Use sharp
chiselsonly.

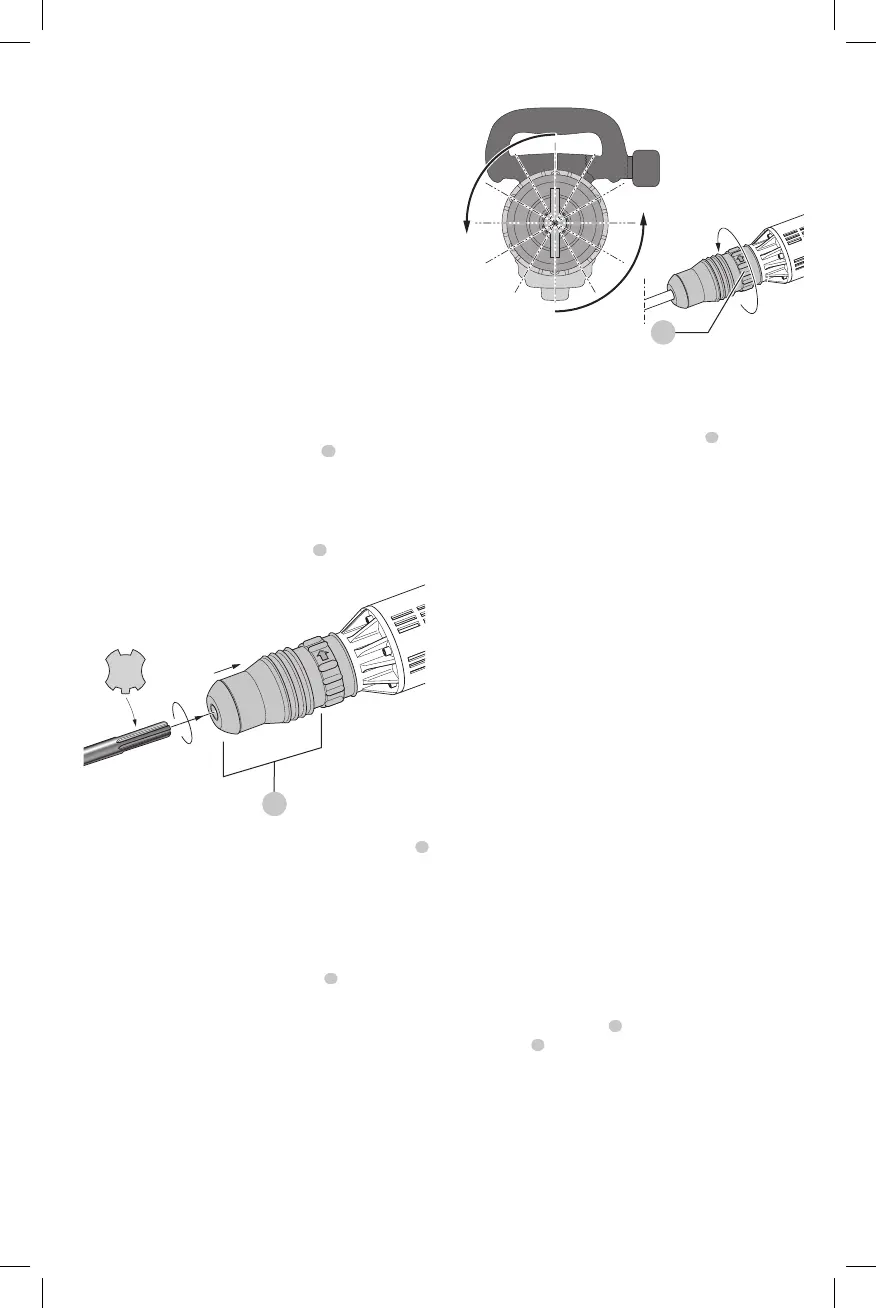

Inserting and Removing SDS MAX
Chisels (Fig. C)
NOTE: Accessories and attachments used must be
lubricated around the SDSMAX fitment beforeinstallation.
1. Insert chisel in the tool holder/sleeve
4
and apply
downward pressure while rotating to secure the chisel
into place. The chisel shank must beclean.
2. Ensure the chisel is properlyengaged.
NOTE: The chisel needs to move several centimeters
in and out of the tool holder/sleeve
4
when
properlyengaged.
Fig. C
4
3. To remove the chisel pull back the tool holder/sleeve
4
and pull the chiselout.
Indexing the Chisel Position (Fig. D)
The chisel can be indexed and locked into 12
differentpositions.
1. Insert the chisel as describedabove.
2. Rotate the chisel position index collar
3
in the direction
of the arrow until the chisel is in the desiredposition.
NOTE: After finding the desired position, slightly
maneuver the chisel back and forth to ensure the chisel is
properlyengaged.
Fig. D
3
Tool Tag Ready (Fig. A)
Optional Accessory
Your hammer comes with mounting holes
7
and fasteners
for installing a
Tool Tag. You will need a T20 bit
tip to install the tag. The
Tool Tag is designed for
tracking and locating professional power tools, equipment,
and machines using the
Tool Connect™ app. For
proper installation of the
Tool Tag refer to the
Tool Tagmanual.
OPERATION
WARNING: Always observe the safety instructions
and applicableregulations.
WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.
WARNING: Be aware of the location of pipework
andwiring.
WARNING: Apply a pressure of approx. 44–66lbs.
(20–30kg.) to the tool. Excessive force does not speed
up chiselling but decreases tool performance and may
shorten toollife.
Proper Hand Position (Fig. E)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
Proper hand position requires one hand on the bail/
loop style auxiliary handle
5
with the other hand on the
mainhandle
2
.
