• Safely dispose of the oldplug.
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.

WARNING: No connection is to be made to the
earthterminal.
Follow the fitting instructions supplied with good quality plugs.
Recommended fuse: 230V/13A plug , 115V/20Aplug.
Using an Extension Cable
If an extension cable is required, use an approved 3–core
extension cable suitable for the power input of this tool (see
Technical Data).The minimum conductor size is 1.5 mm
2
; the
maximum length is 30m.
When using a cable reel, always unwind the cablecompletely.
Package Contents
The package contains:
1 Chopsaw
1 Abrasive wheel
1 Hex key
1 Instruction manual
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.

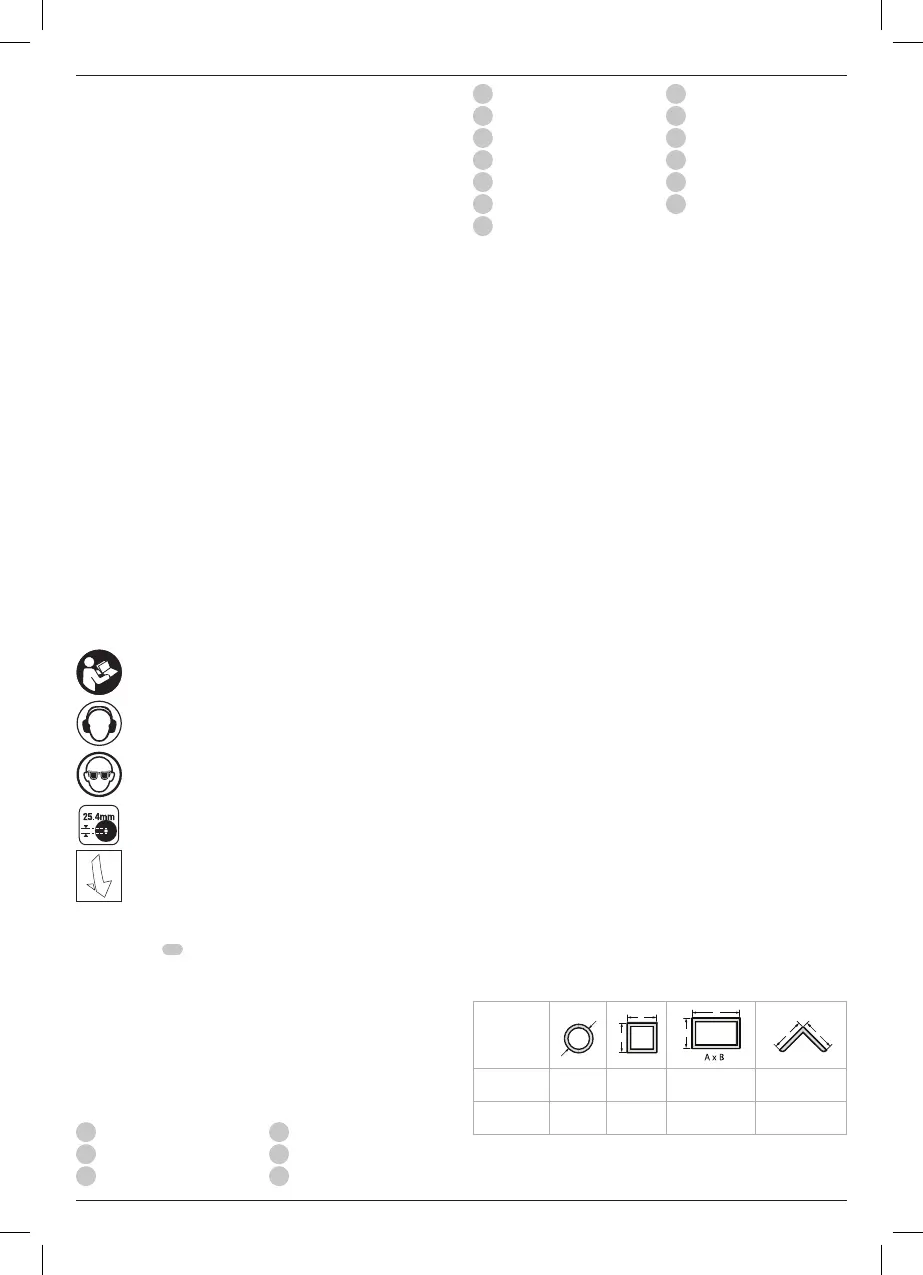

Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
Bore Diameter
Direction of rotation
Date Code Position (Fig. A)
The date code
18
which also includes the year of manufacture,
is printed into thehousing.
Example:
2019 XX XX
Year of Manufacture
Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Lock pin
2
Spark deflector screw
3
Spark deflector
4
Base
5
Fence
6
Vise
7
8mm hex key
8
Crank
9
Vise lever
10
Wheel
11
Guard
12
Spindle lock
13
Lock-off trigger switch
14
Lock-off lever
15
Fence bolts
16
Mounting holes
17
Operating handle
18
Date code
19
Carrying handle
Intended Use
Your D28730 chop saw has been designed for the cutting of
variously shaped steelmaterials. It is designed only for use with
reinforced bonded abrasives. Diamond or TCT blades should not
be used with thisunit.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
The D28730 chop saw is a professional powertool.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect tool from power
source before making any adjustments or removing/
installing attachments or accessories. Be sure the
trigger switch is in the OFF position. An accidental start-up
can causeinjury.
Cutting Capacity
The wide vise opening and high pivot point provide cutting
capacity for many large pieces. Use the cutting capacity chart to
determine total maximum size of cuts that can be made with a
newwheel.

CAUTION: Certain large, circular or irregularly shaped
objects may require additional holding means if they
cannot be held securely invise.

CAUTION: DO NOT CUT MAGNESIUM, WOOD, BRICK OR
CONCRETE WITH THIS TOOL.
Workpiece Shape
A
A
A
A
B
A
A
90° Cutting angle A = 125 mm A = 115 mm 115 mm x 130 mm 120 mm
45° Cutting angle A = 115 mm A = 98 mm 95 mm x 105 mm 105 mm

DeWalt D28730 Specifications

General

Quantity per pack	1 pc(s)
