gun trigger is released, the water flow will stop immediately
and the engine should shut off in approximately 10 seconds.
When the spray gun trigger is squeezed again, the engine
will restart and the water flow will beginagain.
3. Place the fuel valve lever in the OFFposition.
Fig. BB
4. PRESSUREREADY® system mode only: Remove the
battery pack and storeproperly.
- To remove battery pack (Fig. P): Depress the battery
release button
24
on the battery and pull battery pack
out from the batteryhousing.

WARNING: Risk of Damage. DO NOT store battery pack
in pressure washer when not in use. Remove battery pack
after everyuse.
5. Turn cold water sourceoff.
6. Pull spray gun trigger to relieve any water pressure in hose
or spraygun.
7. Refer to Storage for proper storageprocedures.
MAINTENANCE

WARNING: Risk of burning. When performing
maintenance, you may be exposed to hot surfaces, water
pressure or moving parts that can cause serious injury
ordeath.

WARNING: Risk of fire. Always disconnect, spark plug
wire, let the engine cool and release all water pressure
before performing any maintenance or repair. The engine
contains flammable fuel. Do not smoke or work near open
flames while performingmaintenance.
To ensure efficient operation and longer life of your pressure
washer, a routine maintenance schedule should be prepared
and followed. If the pressure washer is used in unusual
conditions, such as high temperatures or dusty conditions, more
frequent maintenance checks will berequired.
Engine
Consult the engine instruction manual for the manufacturer's
recommendations for any and allmaintenance.
NOTE: The pressure washer frame is equipped with an oil drain
hole to help make changing the engine oileasier.
Pump
The pump was filled with oil at the factory. The pump on
this unit is maintenance free and requires no oil. If there is a
problem with the pump contact us at AUST 1800 841 749/
NZ0800467813 or reference the TroubleshootingGuide.
Nozzle Cleaning (Fig.CC, DD)
If the nozzle becomes clogged with foreign materials, such as
dirt, excessive pressure may develop. If the nozzle becomes
partially clogged or restricted, the pump pressure will pulsate
and when operating in PRESSUREREADY® system mode the
engine may shut off due to the low water flow. Clean the nozzle
immediately using the nozzle kit supplied and the following
instructions:
1. Shut down the pressure washer. See Shutting Down for the
correctprocedure.
2. Disconnect the spray wand from thespraygun.
3. Remove the high pressure nozzle from the spray wand.
Remove any obstructions with the nozzle cleaning tool
29
provided and back flush with cleanwater.

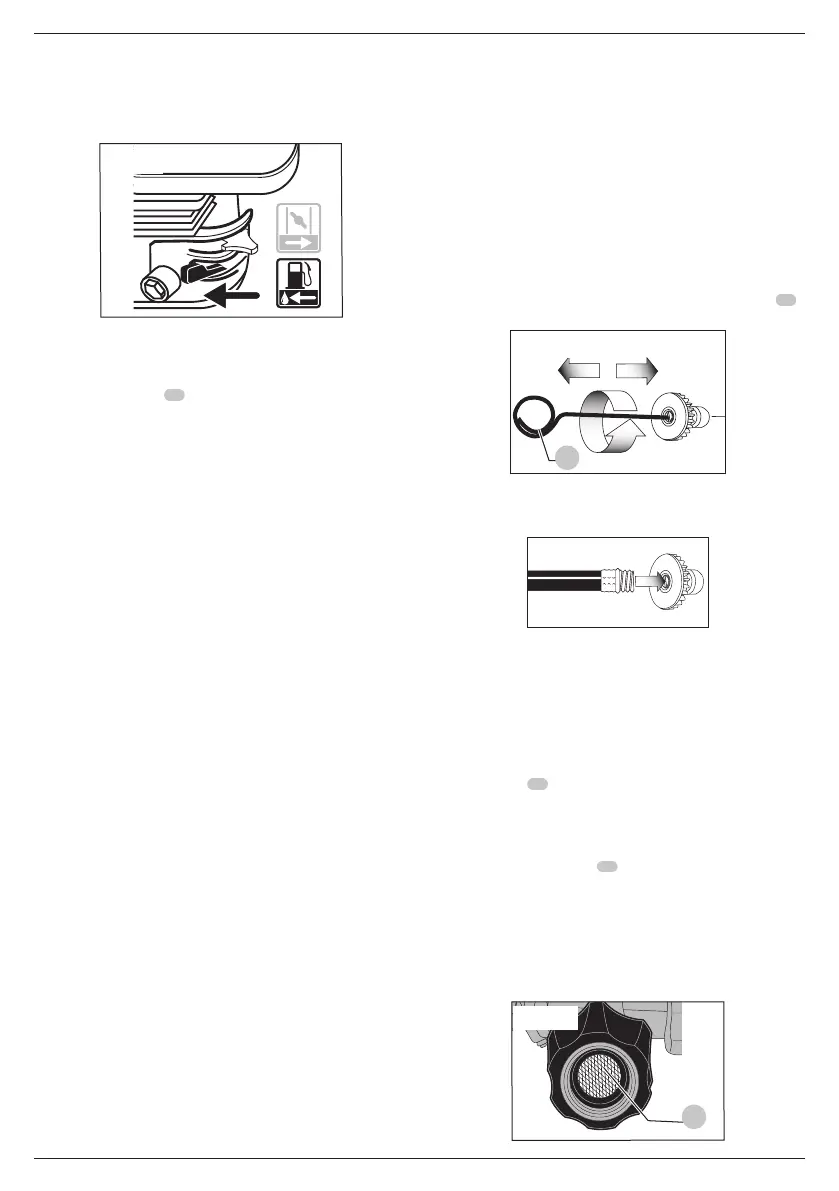

Fig. CC
29
4. Direct water supply into spray nozzle to back flush loosened
particles for 30seconds.
Fig. DD
5. Reconnect the nozzle to the spraywand.
6. Reconnect spray wand to gun then turn on watersupply.
7. Start pressure washer and place spray wand into
high pressure setting totest. See Starting for the
correctprocedure.
To Clean the Water Inlet Filter (Fig.EE)
This filter screen
14
should be checked periodically and
cleaned ifnecessary.
1. Shut down the pressure washer. See Shutting Down for the
correctprocedure.
2. Remove the filter screen
14
by grasping the end and
removing it from water inlet ofpump.
3. Clean filter by flushing it with water on bothsides.
4. Reinsert filter into water inlet of pump. If the filter is not flat,
convex side should faceout.
NOTE: Do not operate pressure washer without filter
properlyinstalled.
Fig. EE
14
