40
english

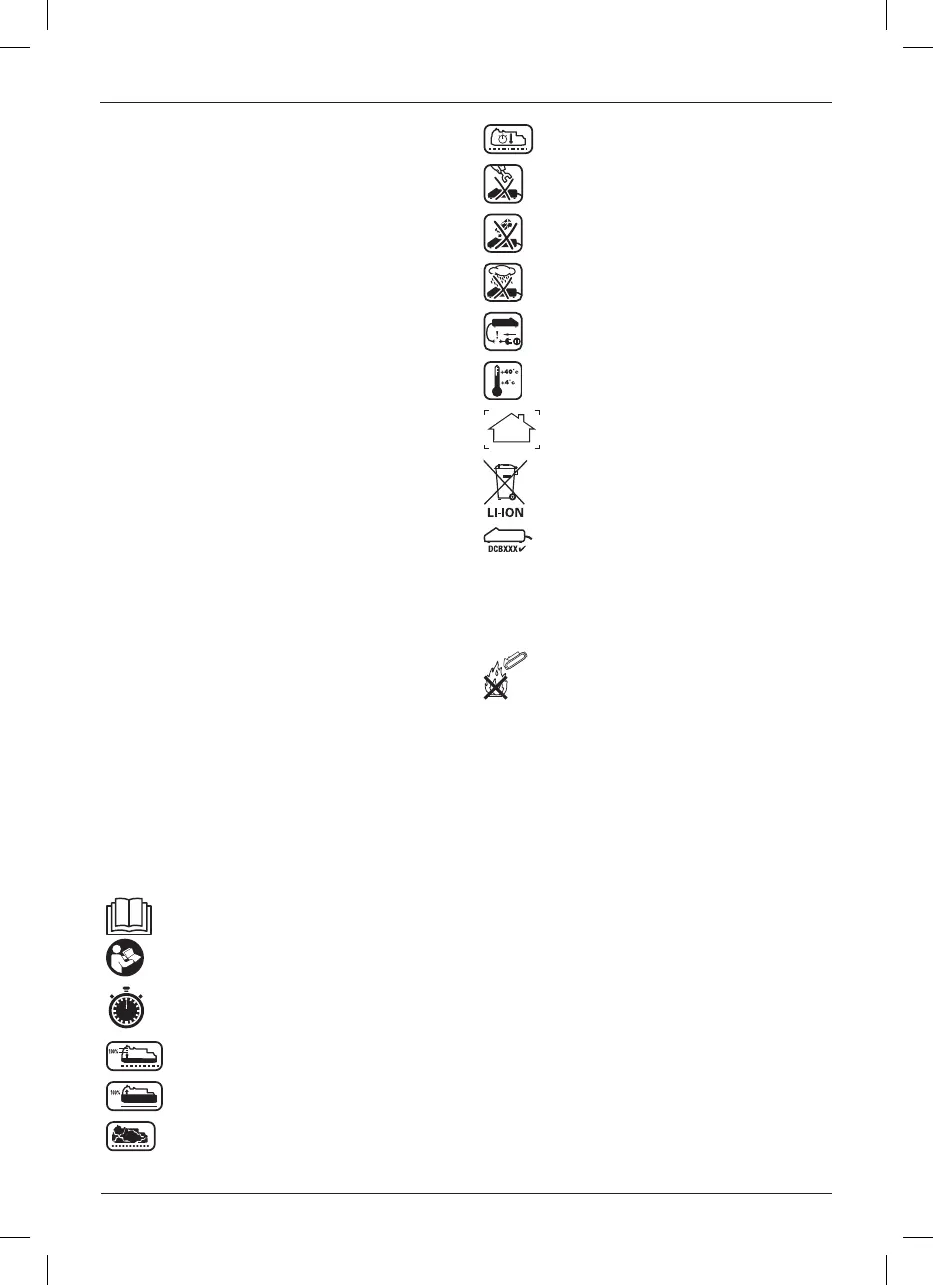

Hot/cold pack delay.
Do not probe with conductive objects.
Do not charge damaged battery packs.
Do not expose to water.
Have defective cords replaced
immediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indoor use.
Discard the battery pack with due care
for the environment.
Charge DeWALT battery packs only with
designated D
eWALT chargers. Charging
battery packs other than the designated
D
eWALT batteries with a DeWALT
charger may make them burst or lead
to other dangerous situations (see
Technical Data).
Do not incinerate the battery pack.
Package Contents
The package contains:
1 Drill/driver or 1 drill/driver/hammerdrill
1 Charger
1 Li-Ion battery pack (C1, S1, D1, M1, P1 models)
2 Li-Ion battery packs (C2, S2, D2, M2, P2 models)
3 Li-Ion battery packs (C3, S3, D3, M3, P3 models)
1 Kitbox
1 Instruction manual
1 Tool Connect
TM
App instruction manual
(Bmodels)
NOTE: Battery packs, chargers and kitboxes
are not included with N models. Battery packs
and chargers are not included with NT models.
Bmodels include Bluetooth
®
battery packs.
NOTE: The Bluetooth
®
word mark and logos are
registered trademarks owned by the Bluetooth
®
,
SIG, Inc. and any use of such marks by DeWALT is
under license. Other trademarks and trade names
are those of their respective owners.
Transporting batteries can possibly cause fire if the
battery terminals inadvertently come in contact with
conductive materials. When transporting batteries,
make sure that the battery terminals are protected
and well insulated from materials that could contact
them and cause a short circuit.
The information provided in this section of the
manual is provided in good faith and believed to be
accurate at the time the document was created.
However, no warranty, expressed or implied, is
given. It is the buyer’s responsibility to ensure that its
activities comply with the applicable regulations.
Battery Pack
BATTERY TYPE
The DCD791 and DCD796 operate on an 18 volt
battery pack.
The DCB180, DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B or DCB185 battery
packs may be used. Refer to Technical Data for
more information.
Storage Recommendations
1. The best storage place is one that is cool and
dry away from direct sunlight and excess heat
or cold. For optimum battery performance and
life, store battery packs at room temperature
when not in use.
2. For long storage, it is recommended to store a
fully charged battery pack in a cool, dry place
out of the charger for optimal results.
NOTE: Battery packs should not be stored
completely depleted of charge. The battery pack will
need to be recharged before use.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual,
the labels on the charger and the battery pack may
show the following pictographs:
Read instruction manual before use.
See Technical Data for charging time.
Battery charging.
Battery charged.
Battery defective.
41
english
Your
DeWALT charger is double insulated
in accordance with EN60335; therefore
no earth wire is required.
If the supply cord is damaged, it must be replaced
by a specially prepared cord available through the
DeWALT service organisation.
Mains Plug Replacement
(U.K. & Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the old plug.
• Connect the brown lead to the live terminal in
the plug.
• Connect the blue lead to the neutral terminal.
WARNING: No connection is to be
made to the earth terminal.
Follow the fitting instructions supplied with good
quality plugs. Recommended fuse: 3 A.
Using an Extension Cable
An extension cord should not be used unless
absolutely necessary. Use an approved extension
cable suitable for the power input of your charger
(see Technical Data). The minimum conductor size
is 1 mm
2
; the maximum length is 30 m.
When using a cable reel, always unwind the cable
completely.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of
serious personal injury, turn tool
off and disconnect battery pack
before making any adjustments or
removing/installing attachments or
accessories. An accidental start-up can
cause injury.
WARNING: Use only DeWALT battery
packs and chargers.
Inserting and Removing the
Battery Pack from the Tool (Fig. 2)
NOTE: Make sure your battery pack (J) is fully
charged.
TO INSTALL THE BATTERY PACK INTO THE TOOL HANDLE
1. Align the battery pack (J) with the rails inside
the tool’s handle (Fig. 2).
2. Slide it into the handle until the battery pack is
firmly seated in the tool and ensure that you
hear the lock snap into place.
• Check for damage to the tool, parts or
accessories which may have occurred
during transport.
• Take the time to thoroughly read and
understand this manual prior to operation.
Description (Fig. 1)
WARNING: Never modify the power
tool or any part of it. Damage or personal
injury could result.
A. Trigger switch
B. Forward/reverse control button
C. Torque adjustment collar
D. Gear shifter
E. Worklight
F. Keyless chuck
G. Belt hook
H. Mounting screw
I. Bit clip
J. Battery pack
K. Battery release button
L. Worklight switch
INTENDED USE
These drills/drivers/hammerdrills are designed
for professional drilling, percussion drilling and
screwdriving applications.
DO NOT use under wet conditions or in the
presence of flammable liquids or gases.
These drills/drivers/hammerdrills are professional
power tools.
DO NOT let children come into contact with the
tool. Supervision is required when inexperienced
operators use this tool.
• Young children and the infirm. This appliance
is not intended for use by young children or
infirm persons without supervision.
• This product is not intended for use by persons
(including children) suffering from diminished
physical, sensory or mental abilities; lack of
experience, knowledge or skills unless they are
supervised by a person responsible for their
safety. Children should never be left alone with
this product.
Electrical Safety
The electric motor has been designed for one
voltage only. Always check that the battery pack
voltage corresponds to the voltage on the rating
plate. Also make sure that the voltage of your
charger corresponds to that of your mains.
10
