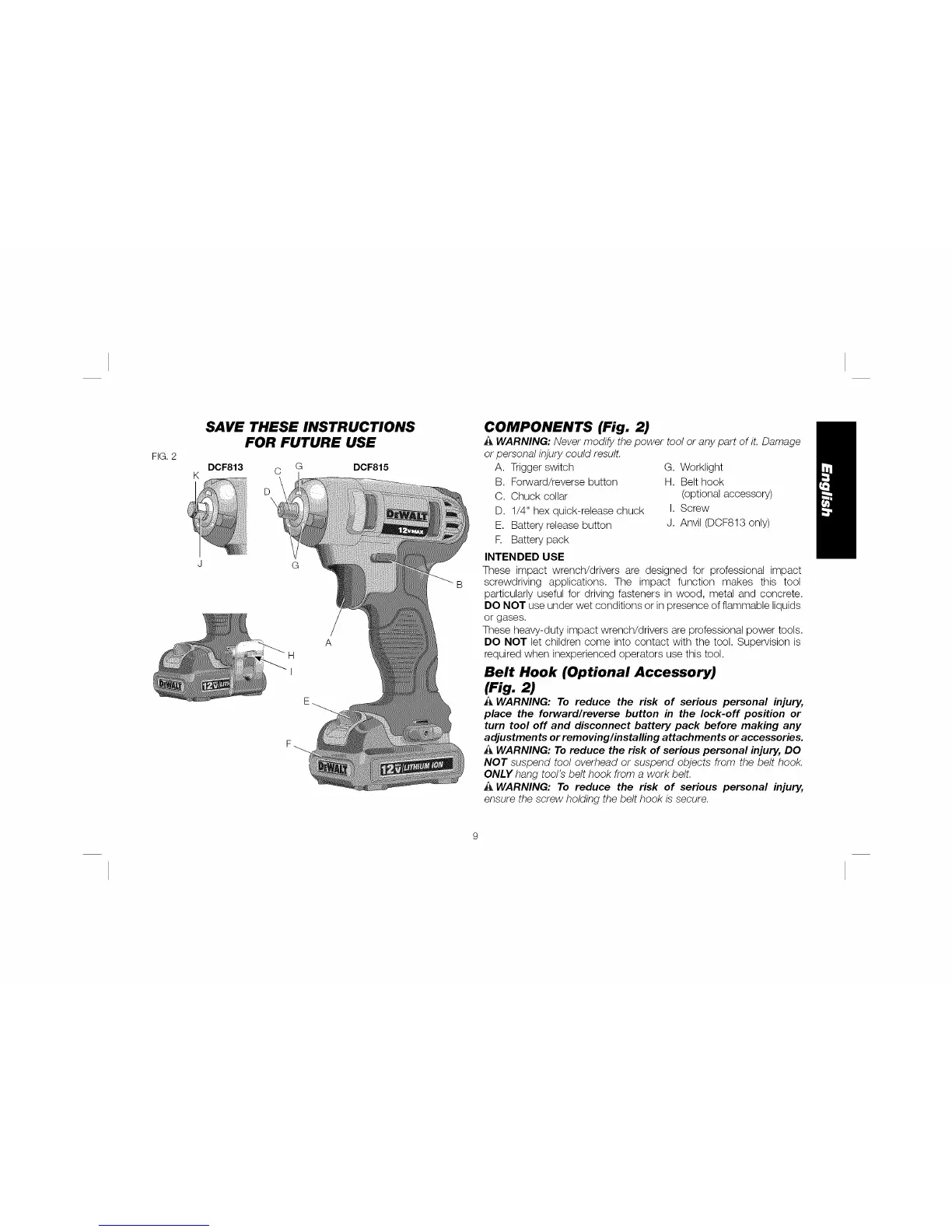

FIG. 2
K
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
DCF813 C G DCF815
G
A
H
I
COMPONENTS (Fig. 2)
WARNING: Never modify the power tool or any part of it. Damage
or personal injury could result.
A. Trigger switch G. Worklight
B. Forward/reverse button H. Belt hook
C. Chuck collar (optional accessory)
D. 1/4" hex quick-release chuck I. Screw
E. Battery release button J. Anvil (DCF813 only)
F. Battery pack
INTENDED USE
These impact wrench/drivers are designed for professional impact
screwdriving applications. The impact function makes this tool
particularly useful for driving fasteners in wood, metal and concrete.
DO NOT use under wet conditions or in presence of flammable liquids
or gases.
These heavy-duty impact wrench/drivers are professional power tools.
DO NOT let children come into contact with the tool. Supervision is
required when inexperienced operators use this tool.
Belt Hook (Optional Accessory)
(Fig. 2)
A WARNING: To reduce the risk of serious personal injury,
place the forward/reverse button in the lock-off position or
turn tool off and disconnect battery pack before making any
adjustments or removing/installing attachments or accessories.
A WARNING: To reduce the risk of serious personal injury, DO
NOT suspend tool overhead or suspend objects from the belt hook.
ONLY hang tool's belt hook from a work belt.
A WARNING: To reduce the risk of serious personal injury,
ensure the screw holding the belt hook is secure.
