DeWalt DCH273 User Manual

11
ENGLISH
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189,
DCB546, DCB547, DCB548. Refer to Technical Data for
moreinformation.
Package Contents
The package contains:
1 Cordless rotary hammerdrill
1 Side handle and depth rod
1 Charger
1 Battery pack (D1, L1, M1, P1)
2 Battery packs (D2, L2, M2, P2)
3 Battery packs (D3, L3, M3, P3)
1 Keyless chuck (DCH254, DCH274)
1 Kit box
1 Instruction manual
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Markings on Tool

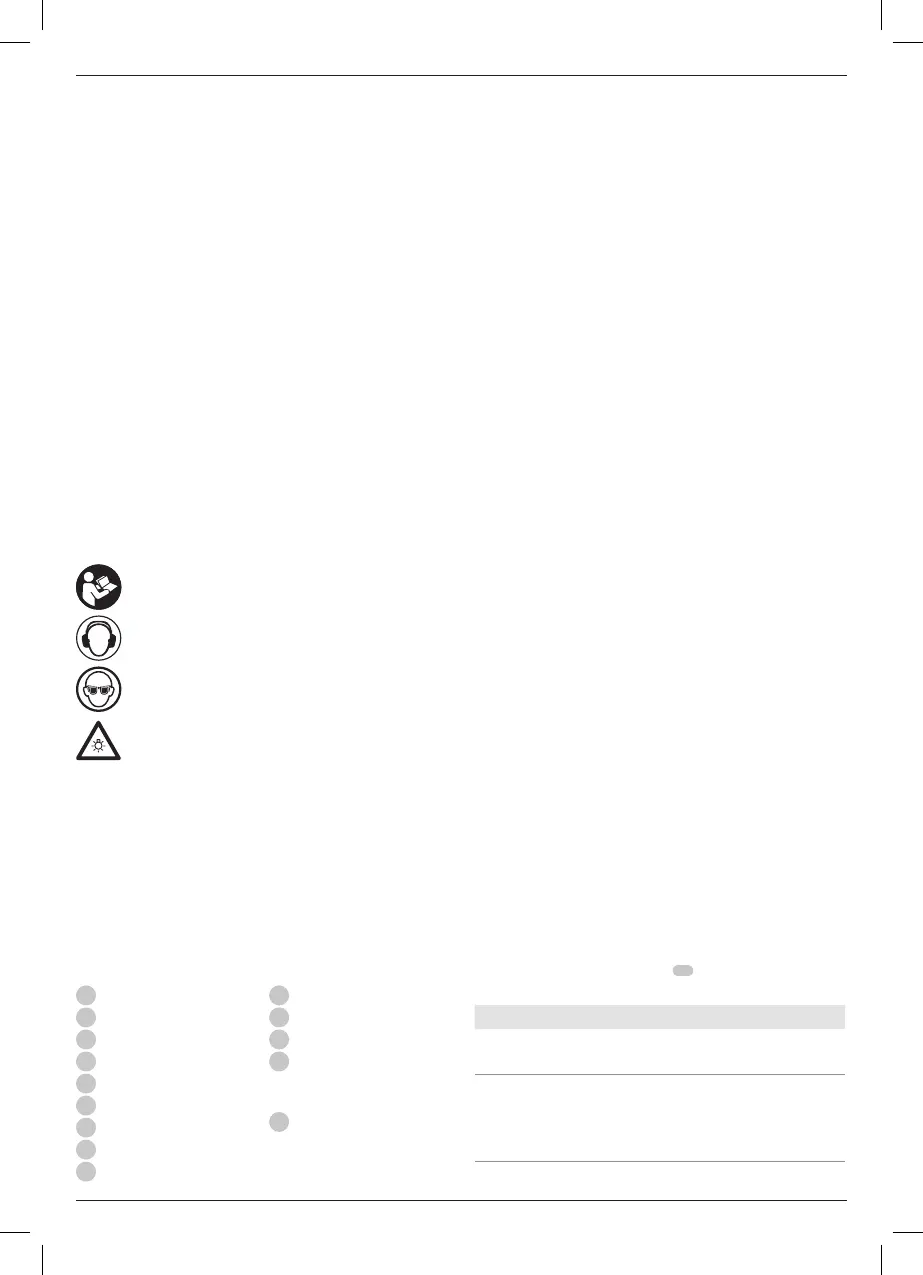

The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
Visible radiation. Do not stare intolight.
Date Code Position
The date code, which also includes the year of manufacture, is
printed into thehousing.
Example:
2019 XX XX
Year of Manufacture
Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Variable speed switch
2
Forward/reverse button
3
Mode selector dial
4
Mode selector button
5
Side handle
6
Battery pack
7
Release button
8
Main handle
9
SDS Plus tool holder
10
Sleeve
11
Depth rod
12
Depth rod release button
13
Worklight (DCH253,
DCH254, DCH273, DCH274,
DCH283)
14
Utility hook (DCH273,
DCH274, DCH283)
Intended Use
Your cordless rotary hammerdrill has been designed for
professional drilling and hammerdrilling applications, as well as
screwdriving and chippingapplications.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
Your cordless rotary hammerdrill is a professional powertool.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
Overload Clutch
In case of jamming of a drill bit, the drive to the drill spindle is
interrupted. Because of the resulting forces, always hold the
tool with both hands and take a firmstance. After the overload,
release and depress the trigger to re-engagedrive.
Mechanical Clutch
DCH243, DCH253, DCH254, DCH283
On units fitted with a mechanical clutch the indication that the
clutch has activated will be an audible ratcheting together with
increasedvibration.
Electronic Clutch
DCH273, DCH274
When the electronic clutch activates, the motor is repeatedly
switched on and off for a few seconds to replicate the feedback
associated with a mechanicalclutch.
Anti-Rotation System (Fig. E)
DCH283
In addition to the clutch, an anti-rotation system offers increased
user comfort and safety through an on-board, anti-rotation
technology capable of detecting if the user loses control of
thehammer. When a jam is detected, the torque and speed are
reducedinstantly. This feature prevents self rotation of the tool
reducing the occurrence of wristinjuries.
The anti-rotation system indicator
15
will illuminate to
indicatestatus.
Indicator Diagnosis Solution
OFF Tool is functioning
normally
Follow all warnings and instructions
when operating the tool.
SOLID Anti-Rotation
System has
been activated
(ENGAGED)
With the tool properly supported,
release trigger. The tool will function
normally when the trigger is depressed
again and the indicator light will go out.
