DeWalt DWD024 Instruction Manual

4
English
WARNING: Use of this tool can generate and/or disburse
dust, which may cause serious and permanent respiratory or
other injury. Always use NIOSH/OSHA approved respiratory
protection appropriate for the dust exposure. Direct particles
away from face and body.
• The label on your tool may include the following symbols. The
symbols and their definitions are as follows:
V ..............volts A ...........amperes
Hz ............hertz W ..........watts
min ........... minutes
........alternating current
.........direct current ........alternating or
.............Class I Construction .............direct current
................. (grounded)
n
o .........no load speed
.............Class II Construction .......... ear thing terminal
................. (double insulated) .........safety alert symbol
…/min .....per minute BPM .....beats per minute
RPM .........revolutions per minute

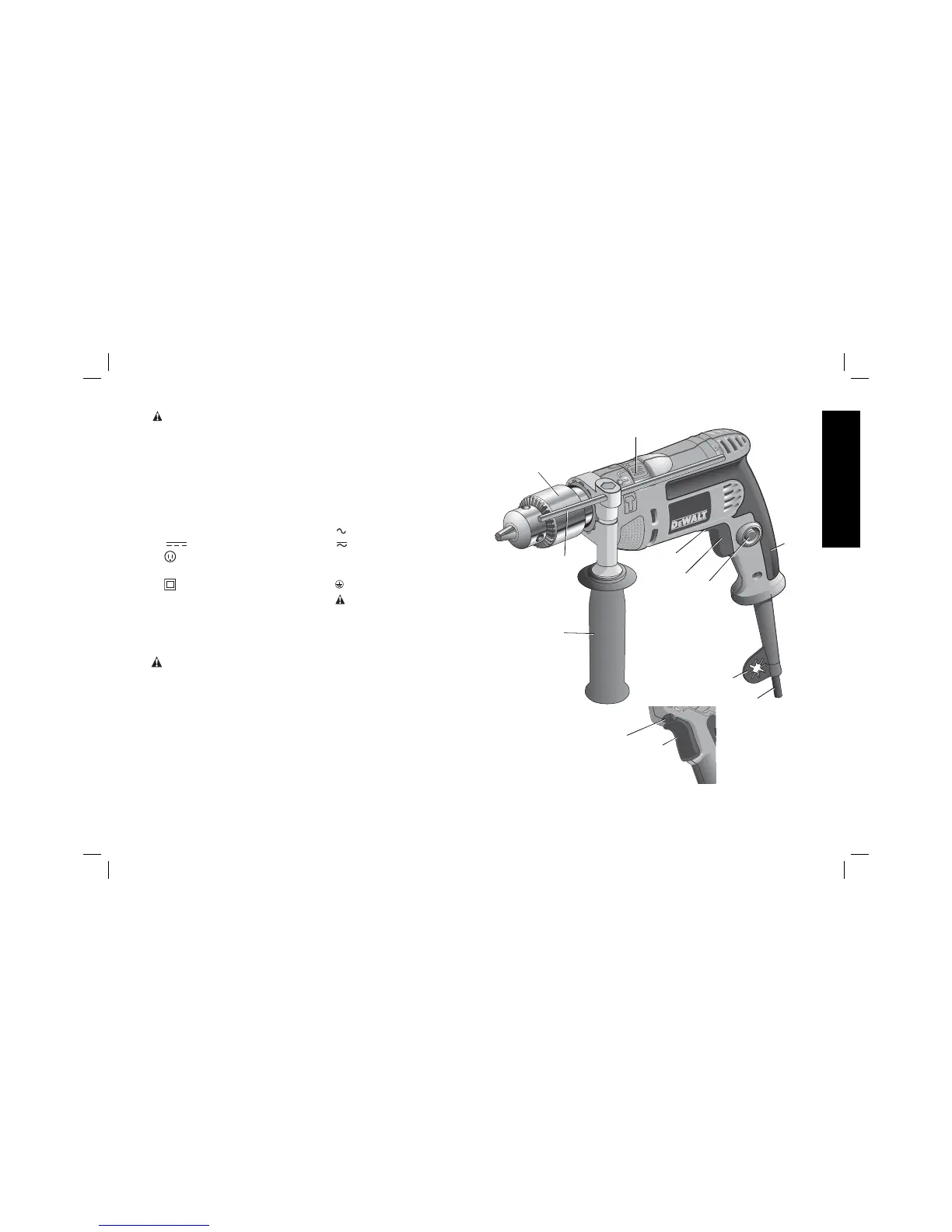

DESCRIPTION (FIG. 1)
WARNING: Never modify the power tool or any part of it. Damage
or personal injury could result.
A. Variable speed trigger switch
B. Lock-on button
C. Forward/reverse button
D. Chuck
E. Cord protector with key holder
F. Cord set
G. Side handle
H. Depth adjustment rod
I. Mode selector
J Main handle
A
B
D
C
F
DWD024
H
E
G
J
I
C
SHOWN IN
FORWARD
POSITION
A
FIG. 1

DeWalt DWD024 Specifications

General

Chuck type	Key
Adjustable speed	Yes
Idle speed (max)	2800 RPM
Impact rate (high speed)	47600 bpm
Drilling diameter in wood (max)	25 mm
Drilling diameter in steel (max)	10 mm
Drilling diameter in concrete (max)	16 mm
Input power	650 W
Power source	AC
Product color	Black, Silver, Yellow

Weight and Dimensions

Weight	16500 g
